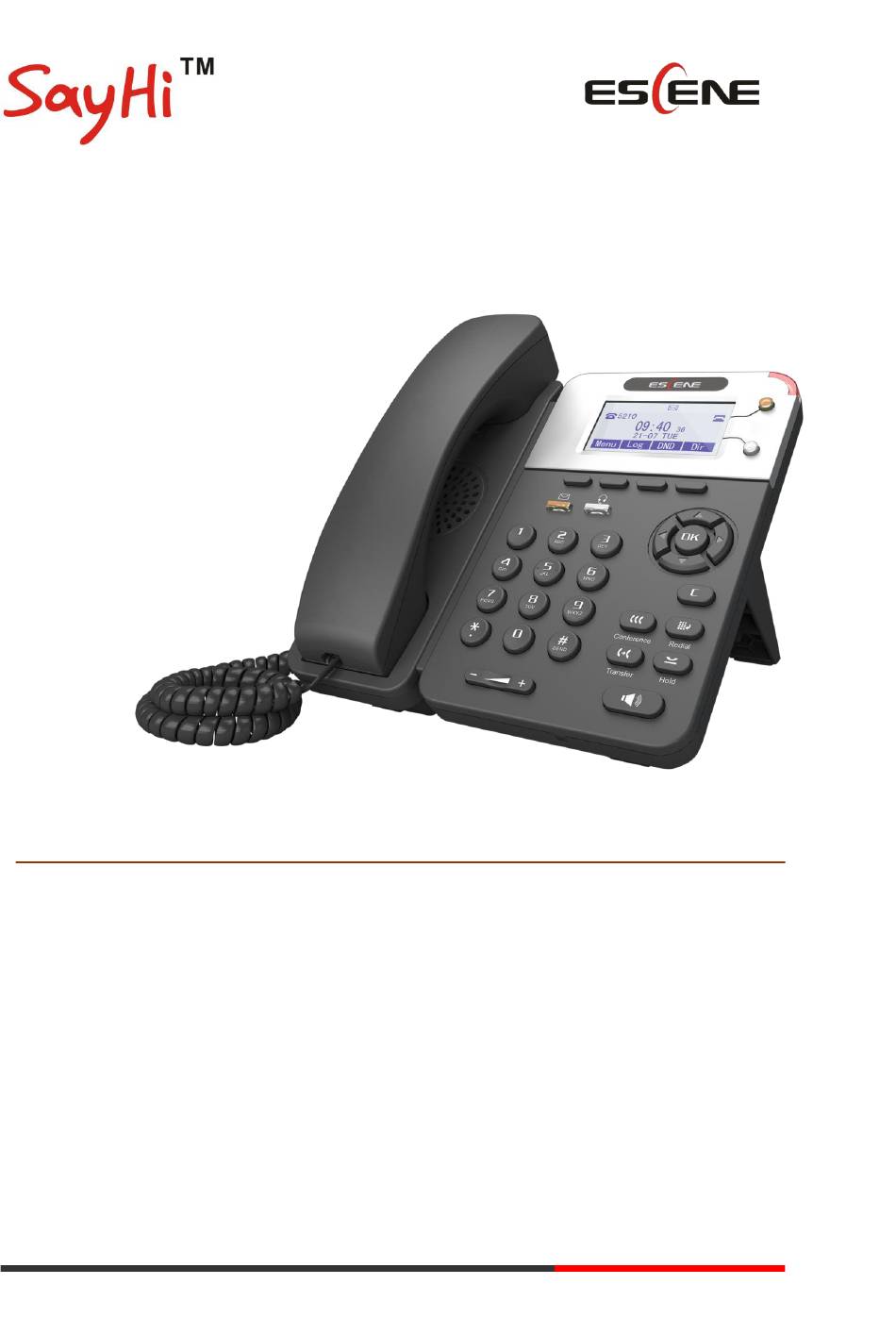

Summary of Contents for Escene SayHi ES280
-
Page 1: Table Of Contents
Feature Highlights 3 2. Set up the Phone 4 3. Phone User Interface 3.1 Hardware Component Instructions 5 3.2 Phone Screen Display Features 7 3.3 Basic Network Settings 3.4 SIP Account Settings 9 3.5 Basic Features 10 www.escene.cn/en/ Escene Communication... - Page 2 5.2 Call 25 5.3 Security 6 Phone Setting 26 6.1 Basic 26 6.1.1 Time Settings 27 6.1.2 Call 28 6.1.3 VoIP Call Forward 30 6.1.4 QoS 30 6.2 Advanced 31 6.2 .0 Audio 6.3 Line Keys 33 www.escene.cn/en/ Escene Communication...
-
Page 3: Getting Started
LCD, a large resolution display, elegant and intuitionist user interface, which you can perfectly experience.ES280 delivers HD audio quality with HD handset, HD speaker and HD codec (G.722), it rich features can effectively improve the communications in working. ES280 quite meets the demands of SMEs, Home Office, and ISP applications. This document updated and revised by Escene Turkey Distributor: Nolto Bilişim www.nolto.com at June 2020. -
Page 4: Set Up The Phone
⚫ Connect the Network and Power Attach the Bracket Pls follow the following step "①" to "②", firstly let the bracket join to the phone, and then gently push the bracket to the left. Connect the Handset and optional Headset www.escene.cn/en/ Escene Communication... -
Page 5: Phone User Interface
Note: If POE works, the phone does not need to connect to the AC power adapter. Make sure the Ethernet cable and switch/hub are POE compliant. 3. Phone User Interface 3.1 Hardware Component Instructions The main hardware components of the ES280 IP Phone are the LCD screen and the keypad. www.escene.cn/en/ Escene Communication... - Page 6 Red-Flashing: There is call coming in Green-Flashing: The line is on hold Dark: Accounts are idle Soft Key Labels automatically to identity their context-sensitive features Navigation Key Scroll through the displayed information, and in the idle feature: www.escene.cn/en/ Escene Communication...
-
Page 7: Phone Screen Display Features
TIME & DATE display in the middle of the screen. Auto-Answer icon Enable this feature, it will display "AA" at the top right corner. Missed Call Missed Call under the TIME in the middle of screen Line Status There are four status as below: www.escene.cn/en/ Escene Communication... -
Page 8: Basic Network Settings
⚫ Press LAN Port to login into the menu ⚫ Select "DHCP" mode ⚫ Press "Enter" key ⚫ Set the DNS\web port\telnet port ⚫ Press "Save" key to make it work ⚫ Tips "Network is changed, press OK reboot " www.escene.cn/en/ Escene Communication... -
Page 9: Sip Account Settings
-User password*: the user password matches with the SIP server -SIP Server*: The primary SIP server, all calls through this server -Out Bound Server: The out bound SIP server -STUN Type: Enable/Disable STUN feature -STUN: Input STUN URL www.escene.cn/en/ Escene Communication... -
Page 10: Basic Features
-You can select which Account want to use, enable/disable this feature, and enable/disable reject anonymous 3.5.3 Redial To redial the last placed call from your phone Redial --Press REDIAL button to dial the last number -or press Navigation Button-Left > “Dialed number”, select a number, and press www.escene.cn/en/ Escene Communication... -
Page 11: Call Log
When you use the Handset mode, at this time you need to hand up the handset and then it can work at this status. --3) Filter Groups Auto-answer the coming call in this special groups. 3.5.8 Ending a Call To end a call, hang up. Here are some more details. www.escene.cn/en/ Escene Communication... -
Page 12: Using Hold And Recover (Switch Calling Line)
Transferred to idle --1) Press TRANSFER button or XFER. lines or other --2) Press numbers without talking to the transfer --3) Enter number. --4) Press “#” （default) recipient (Blind transfer) -or press , then transfer the call. www.escene.cn/en/ Escene Communication... -
Page 13: Using Mute
--1) when one phone line is holding on and the other line is busy. withheld line --2) Press "CONFERENCE" button, -or Press "CONF" Soft key --3) Press the held line's programmable button, the 3-way Conference is enabling. www.escene.cn/en/ Escene Communication... -
Page 14: Voice Mail
-SIP Account: Setting the contact call SIP account -Group: the contacts be divided into different user’s groups --4) Press "Save" soft key to complete Add group --1) Press "DIR" soft key, -or press "MENU" button > “Phone book”> “Personal phone book>View All”, www.escene.cn/en/ Escene Communication... - Page 15 --3) Press "Add" and input the name\office number\mobile number\other number\SIP account who what you want to add into the Blacklist. View the Contact --1) Press "DIR" in the idle, from Blacklist -or press "MENU" or "OK" button > “Phone book”> “Blacklist”, www.escene.cn/en/ Escene Communication...
-
Page 16: Using Call Logs
ES280 have Message feature. It will display in the LCD when it has a New Message. Create a Message --1）Press OK or MENU button. --2）Select "Messaging" --3）Voice Message: Setting the Voice Message code in here. Text Message: Write down the Text Message in here. --4）Select Text Message> New Message. www.escene.cn/en/ Escene Communication... -
Page 17: Time & Date
--2）Press OK or MENU button> System Setting> Phone Setting> Volume Setting --3）Volume Setting: Handset\Speaker\Headset\Ring volume --4) Press Enter to adjust the volume and press Save to make it work NOTES: For the Custom Ring Type you need to upload it from website. www.escene.cn/en/ Escene Communication... -
Page 18: Searching Phone Book
IP address (e.g. HTTP://192.168.0.10 or 192.168.0.10) in the address bar of web browser on your PC. The default username is root (case-sensitive) and the password is root (case-sensitive). Main Interface-Phone Status Here you can see as below information: System Run Time, Register Status, Network Status, System Information, www.escene.cn/en/ Escene Communication... -
Page 19: Net Work
DNS, VPN IP, PC IP, PC Net mask, Device Type, DHCP Server. System Information The status with Phone Model, Software Version, Hardware Version, Hardware ID, Kernel Version, Auto-Provision Server URL, TFTP Server IP. 4.1 Net Work 4.1.1 LAN Port Basic www.escene.cn/en/ Escene Communication... - Page 20 ITEM DESCRIPTION Network Connection Mode Network Connection Mode has DHCP, Static IP, PPPoE. DNS Settings Select the DNS mode that you want. Advanced www.escene.cn/en/ Escene Communication...
- Page 21 (for example telnet 192.168.0.200:2003). It will take effect on next reboot. Socket5 Proxy Server Socket5 Proxy Server Enable/Disable Socket5 Proxy Server. Server IP Socket5 Proxy Server IP address. Port Socket5 Proxy Server port, default is 1080. Anonymous Login Enable/Disable Socket5 Proxy Server login username. www.escene.cn/en/ Escene Communication...
-
Page 22: Pc Port
Router feature is for the phone PC Port. You must input IP address (it is equivalent to a gateway) and Net mask. If you want to use DHCP function, please turn it on, input start IP and end IP. 4.1.3 Advanced VPN Setting www.escene.cn/en/ Escene Communication... -
Page 23: Sip Account
When using VLAN Setting option, you can set several parameters as follow: VLAN Setting Enable VLAN You can enable/disable VLAN for phone and pc The VLAN ID you want the phone or pc to join [LAN/PC Port] 5 SIP Account 5.1Basic www.escene.cn/en/ Escene Communication... - Page 24 It is a password provided by SIP Server Label Label with this account. SIP Server Server for registration, provided by administrator Secondary server When the main server cannot work, it also can register in this secondary server. www.escene.cn/en/ Escene Communication...
-
Page 25: Call
Enable/Disable Do Not Disturb Anonymous Call Enable/Disable anonymous call. Anonymous Call Enable/Disable anonymous call rejection. Rejection Use Session Timer Enable/Disable refresh session function. The device will send an Invite packet to refresh the session during a call if it enables. www.escene.cn/en/ Escene Communication... -
Page 26: Security
Default is 30 second. 5.3 Security ITEM DECSRIPTION Security SIP Encryption Enable/Disable SIP encryption. RTP Encryption Enable/Disable RTP encryption. Encryption Algorithm The encryption algorithm currently we only have RC4. Encryption Key The key with encryption. 6 Phone Setting 6.1 Basic www.escene.cn/en/ Escene Communication... -
Page 27: Time Settings
You can choose to save the call list into the phone or not. Network Packet Mirroring When select on, then you can capture the phone’s packet use notebook which connect to pc port of the phone 6.1.1 Time Settings www.escene.cn/en/ Escene Communication... -
Page 28: Call
You can use 24-hour time format or 12-hour time format Time Format You can choose the appropriate time format. Date Format Time Zone-GMT You can select different time zone for the phone Manual Setting Setting time manually. 6.1.2 Call www.escene.cn/en/ Escene Communication... - Page 29 DND Soft key Enable/Disable the DND feature. Play Hang-up Tone The tone with hang up in busy. Transfer Code The code with transfer. Conference Exit Result Conference originator hang up the phone, hang up two ways of it. www.escene.cn/en/ Escene Communication...
-
Page 30: Voip Call Forward
If the phone was busy working, the call will be transfer to others. If No Answer If the phone was no answer, the call will be transfer to others. Ring Frequency The ring frequency with the VOIP Call Forward. 6.1.4 QoS ITEM DECSRIPTION www.escene.cn/en/ Escene Communication... -
Page 31: Advanced
The handset MIC volume default is Lv3, the range is 1~7. Handset MIC Volume Speaker Phone MIC The speaker MIC volume default is Lv3, the range is 1~7 Volume Headset MIC Volume The headset MIC volume default is Lv3, the range is 1~7 6.2.2 Advanced www.escene.cn/en/ Escene Communication... - Page 32 Play Load Length The play load length setting, default is 30ms. High Rate of G723.1 Enable/Disable High Rate of G723.1 feature. Enable/Disable VAD feature. Echo Suppression Mode Enable/Disable Echo Suppression Mode feature. Side Tone Enable/Disable Side Tone feature. www.escene.cn/en/ Escene Communication...
-
Page 33: Line Keys
NOTE: ONLY WHEN YOU CHOOSE “SPEED DIAL”, THE RIGHT OF “NAME”,” NUMBER” WILL TAKE EFFECT. 6.4 Function Keys Function Keys: If you do not like the default setting with the function keys feature. You can change to whatever you like. NOTE: IF THE PHONE WITHOUT THE KEY, YOU CAN IGNORE IT. www.escene.cn/en/ Escene Communication... -
Page 34: Soft Key
As below example, when you are dealing with someone, the LCD display soft key is Send \Del \Empty\End, Empty means nothing in it. 6.6 Dial Plan If you want to setup a dial plan, you can click "Dial Plan" www.escene.cn/en/ Escene Communication... -
Page 35: Ip Strategy
NOTES: If you want to know more detail about Dial Rule, pls find it in the official website to download the specific document. HTTP://www.escene.cn/en. 6.7 IP Strategy You can use IP Strategy feature to make a list which can be set to only allow the incoming call on the list. www.escene.cn/en/ Escene Communication... -
Page 36: Phone Book
, if you want to delete all Groups, you just ought to click ’Delete All Group’. 7.2 Contact You can add, edit and delete contact in a phone book on this web page. The phonebook can storage 300 contacts entry www.escene.cn/en/ Escene Communication... -
Page 37: Ldap
You can download and save this contact to PC after you select 7.3 LDAP NOTES: If you want to know more detail about LDAP, pls find it in the office website to download the specific document. HTTP://www.escene.cn/en. As below figure is an example. e.g. LDAP Name Filter:(sn=%s) LDAP Number Filter:(telephoneNumber=%s) Server Address:192.168.0.65... -
Page 38: Ban List
7.4 Ban List You can add, edit, and delete contact in a Ban List on this web page. www.escene.cn/en/ Escene Communication... -
Page 39: Phone Maintenance
When using HTTP upgrade, you can set several parameters as follow: HTTP Upgrade Select a File Browse the software/kernel/configuration file which you need to upgrade from HTTP Software Used for upgrading the software of the phone Upgrade Kernel Upgrade Used for upgrading the kernel of the phone www.escene.cn/en/ Escene Communication... -
Page 40: Ftp Upgrade
Password Providing by FTP server Software Upgrade Used for upgrading the software of the phone Kernel Upgrade Used for upgrading the kernel of the phone Configuration Used for updating/backup to update/backup the configure file of the phone www.escene.cn/en/ Escene Communication... -
Page 41: Tftp Upgrade
NOTES: It is not necessary to input filename when doing backup Configuration, Phone Book, EXT Module. 8.1.4 Default Setting You can load the phone to the factory default setting in default setting option. Press the ‘Reset to Factory Setting’ option, the phone will load to factory default setting on next reboot. www.escene.cn/en/ Escene Communication... -
Page 42: Reboot
When you open this auto provision feature, the phone will do auto provision after it detect a different software or kernel (Higher or Lower) which are putted on the TFTP, HTTP, HTTPS, FTP, server. For the detailed information about auto provision, you can find it in the official website: HTTP://www.escene.cn/en www.escene.cn/en/... - Page 43 Used for setting the time interval for auto provision Auto Provision Time Used for the specific time for auto provision Auto Provision Next Time Reset the Auto Provision Next Upgrading time. AES Enable You can enable/disable AES encrypt for auto provision www.escene.cn/en/ Escene Communication...
-
Page 44: Password
In the upper right corner of the website page, you can select the language in the below list. 10.3 Note Tips In the right middle of the website page, there is a Note tips in every function page. Hope it can help you to know something about that. www.escene.cn/en/ Escene Communication... - Page 45 Türkçe destek için Escen Türkiye Distribütörü Nolto Bilişim (www.nolto.com) iletişime geçebilirsiniz. www.escene.cn/en/ Escene Communication...
