Snarkoon 5.25" BayExtension Manual

5.25" BayExtension

Table of Contents

Need help?

Do you have a question about the 5.25" BayExtension and is the answer not in the manual?

Page 1 5.25" BayExtension...

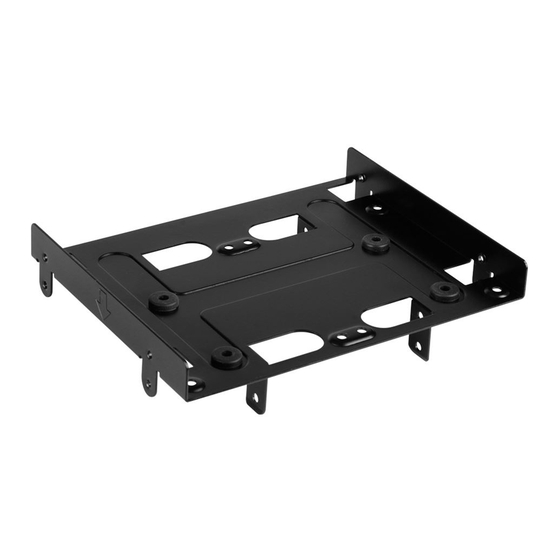

Page 2 Package Contents (A) 1x 5.25" BayExtension (B) 4x decouplers (C) 4x mounting screws for 3.5" HDD (coarse thread) (D) 16x mounting screws for 2.5" HDDs/SSDs (fine thread) (E) 4x mounting screws for the mounting frame (fine thread) (F) 1x Manual (A) 1x 5.25"...
Page 3 Mounting 2.5" HDDs/SSDs 1 - Screw openings for 2.5" HDDs/SSDs 3 - Mounting frame attachment 1 - Schrauböffnungen für 2,5"-Festplatten/SSDs 3 - Befestigung des Einbaurahmens...
Page 4 Mounting 3.5" HDD & 2.5" HDDs/SSDs 1 - Screw openings for 2.5" HDDs/SSDs 2 - Decoupled attachment for 3.5" HDD 3 - Mounting frame attachment 1 - Schrauböffnungen für 2,5"-Festplatten/SSDs 2 - Entkoppelte Befestigung für 3,5"-Festplatte 3 - Befestigung des Einbaurahmens...
Page 5 Installing into 5.25" bays The BayExtension mounting frame can be mounted to standard 5.25“ bays of PC cases and is attached with four ﬁne thread screws. 1. Open the PC case. 2. Slide the BayExtension mounting frame with pre-installed HDDs into a 5.25“ mounting bay of the case.
Page 6 Note  Hinweis Legal Disclaimer For potential loss of data, especially due to inappropriate handling, SHARKOON assumes no liability. All named products and descriptions are trademarks and/or registered trademarks of the respective manufacturers and are accepted as protected. As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice.
