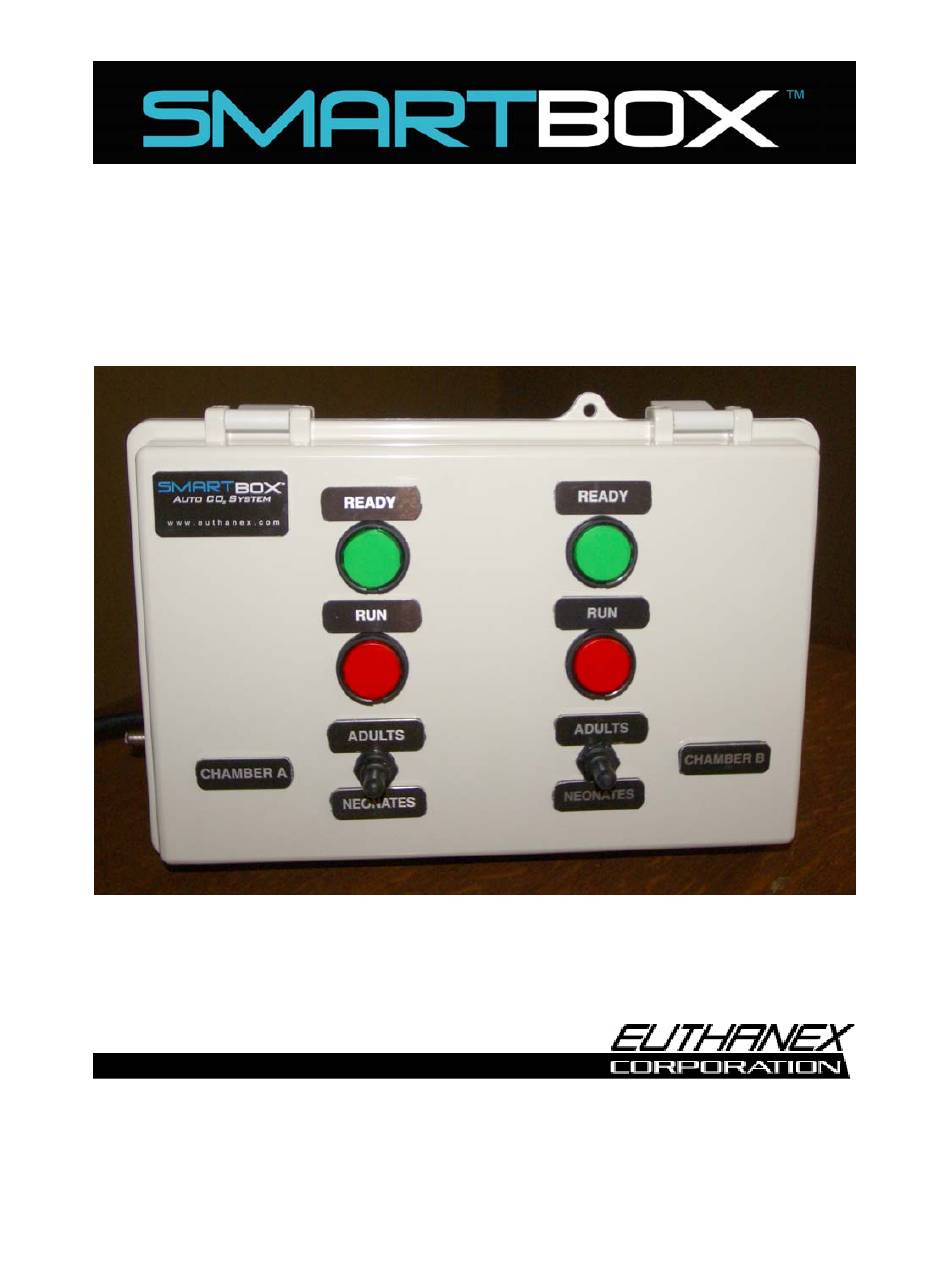

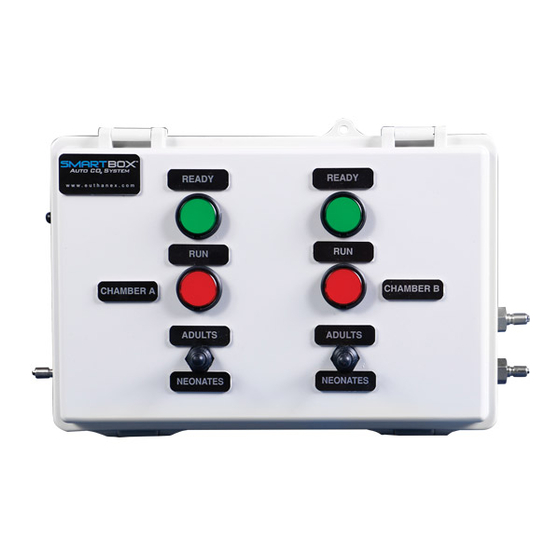

- Page 1 Auto CO Lab Control Unit Model – EA-32002C 1-877-559-0159 Toll Free Euthanex Corp. / E-Z Systems 1-610-882-3801 Fax P.O. Box 3544 www.euthanex.com Palmer, PA 18043...
-
Page 2: Table Of Contents
Table of Contents Disclaimer…………………………………………………………………………….3 Smartbox Lab Control Unit Overview……………………………………………….4 System Set-up..……………………………………………………………………….6 Operating the System…………………………………………………………………9 Changing System Presets……..………………………………………………………10 Flow Rate & Preset Times …………..………………………………………………12... -
Page 3: Disclaimer
The system and its components must only be modified or repaired by Euthanex authorized service technicians. Improper modification or repair may result in danger to personnel, harm or death to animal, and/or equipment damage. The user/owner of this... -
Page 4: Smartbox Lab Control Unit Overview
Gas flows from the external source into the Lab Control Unit. A solenoid valve opens to output gas to the Euthanex lid. After the euthanasia cycle is completed, the Lab Control Unit automatically shuts the gas off. The EA-32002C model has twp gas outputs - treating up to two cages independently. - Page 5 The exclamation point within an equilateral triangle is The lightning flash with an arrowhead intended to alert the user to the presence of important symbol within an equilateral triangle, is operating and maintenance (servicing) instructions in intended to alert the user to the presence of the literature accompanying the product.
-
Page 6: System Set-Up
System Set-Up: 1. Two mounting brackets are utilized to secure the controller unit to the wall. These are on the controller when shipped. 2. Using a Phillips head screwdriver loosen the screws and move the mount tabs outward as pictured below. Tighten the screws once appropriate position is achieved. - Page 7 3. With the mounting brackets moved, position the unit in the appropriate location on the wall and mark the two holes. Remove unit from wall and drill the holes. Secure the unit to the wall with appropriate screws. (Wall screws are not included.) 4.
- Page 8 GAS WILL NOT FLOW INTO LID IF THE COUPLER IS NOT PROPERLY ATTACHED. GAS WILL FLOW IF A CYCLE IS STARTED FOR AN UNATTACHED OUTPUT. 6. Place the Euthanex Lid(s) on the cage(s), and the system is ready for operation.
-
Page 9: Operating The System
Operating the Lab Control Unit : 1. Confirm that the CO source is open and the regulator/flow-meter is set for the correct flow rate. 2. Move the toggle on/off switch located on the left side of the unit to the on position (UP). -
Page 10: Changing System Presets
If your location has lockout- tagout protocols please follow them. Preset times were determined based on extensive testing done by Euthanex Corp. and designed to comply with the latest guidelines of the AVMA Panel on Euthanasia. Refer to the Flow Rate to determine AVMA compliant flow rates and the timing presets. The following is the procedure for changing the preset times: 1. - Page 11 5. “Timer 1” will screen appear. * Press “OK” and the first number will begin to flash. * Use the up/down keys to increase or decrease the value. * Use the right/left keys to move the cursor to the number you would like to change.
-
Page 12: Flow Rate & Preset Times
Flow Rate & Preset Times: Default times were chosen to comply with the latest guidelines of the AVMA Panel on Euthanasia and through extensive testing performed by Euthanex Corp. Times are programmable and may be changed by a designated administrator.
