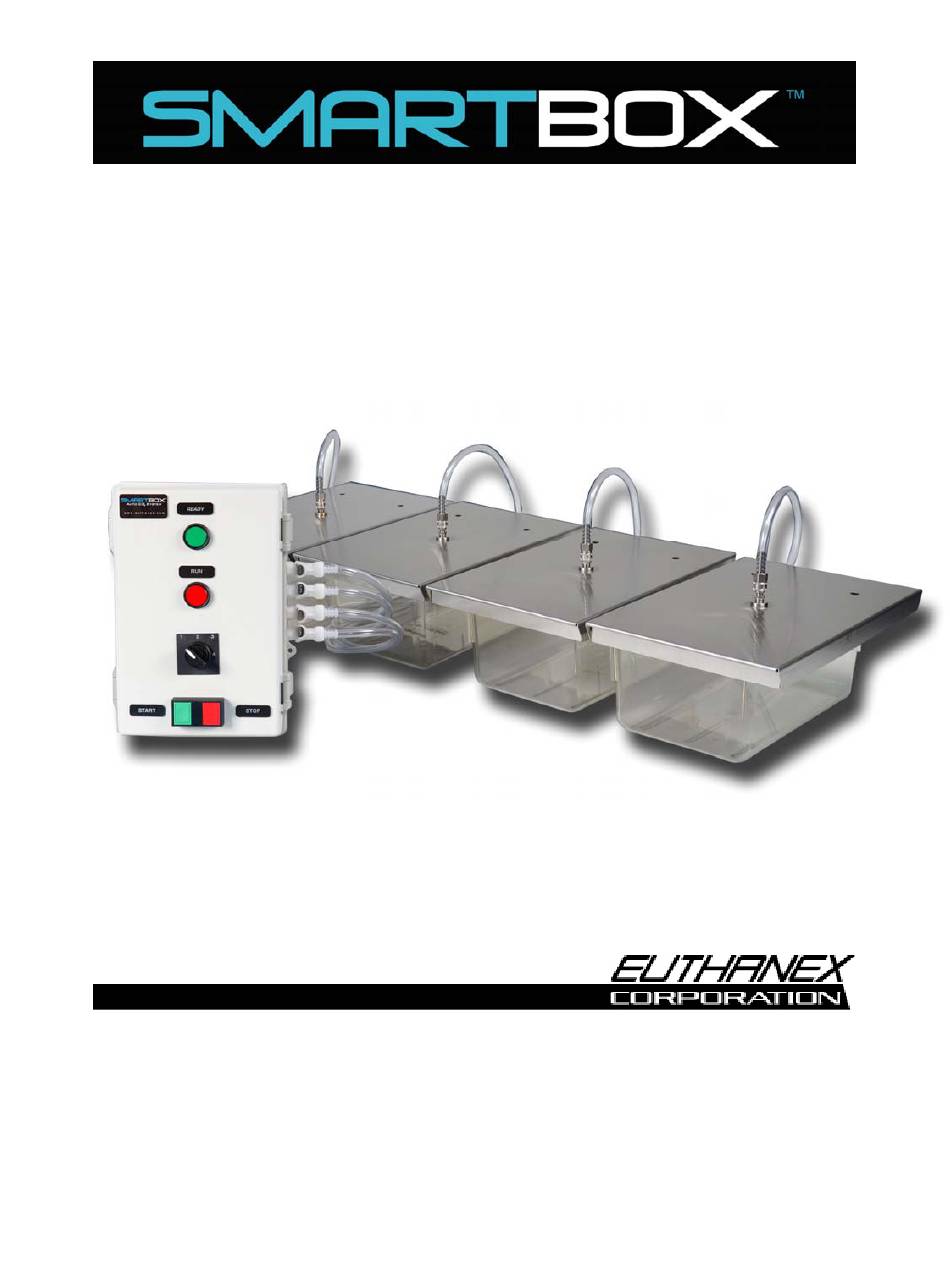

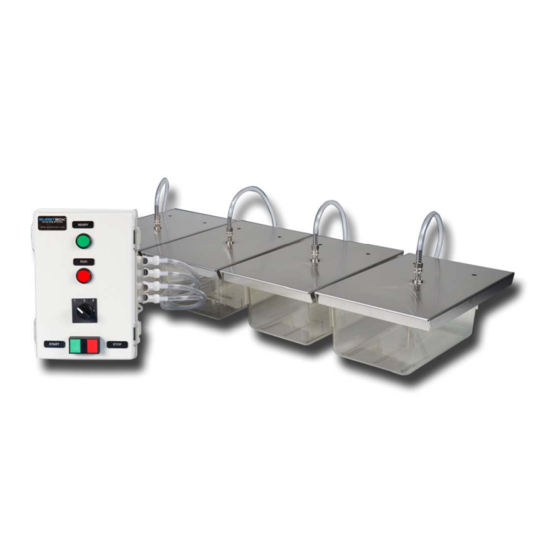

- Page 1 Auto CO Lab Control Unit Models – EA-34000 1-877-559-0159 Toll Free Euthanex Corp. / E-Z Systems 1-610-882-3801 Fax P.O. Box 3544 www.ezsystemsinc.com Palmer, PA 18043...
-
Page 2: Table Of Contents
Table of Contents Disclaimer and Lab Control Unit Overview …………………………………………………………………………….3 Safety Instructions……………………………………………………………………4 System Set-Up..………………………………………………………………………5 Operating the System…………………………………………………………………8 Changing System Presets…..…………………………………………………………10 Flow Rate & Preset Times …………..………………………………………………12 EMC / EMI. This equipment has been tested and found to comply with the limits for a Class A Equipment, pursuant to part 15 of the FCC rules. -
Page 3: Overview
The system and its components must only be modified or repaired by Euthanex authorized service technicians. Improper modification or repair may result in danger to personnel, harm or death to animal, and/or equipment damage. The user/owner of this... -
Page 4: Safety Instructions
The exclamation point within an equilateral triangle is The lightning flash with an arrowhead intended to alert the user to the presence of important symbol within an equilateral triangle, is operating and maintenance (servicing) instructions in intended to alert the user to the presence of the literature accompanying the product. -
Page 5: System Set-Up
System Set-Up: 1. Four mounting brackets are utilized to secure the controller unit to the wall. These are on the controller when shipped. 2. Using a Phillips head screwdriver, loosen the screws and move the mount tabs outward as pictured below. Tighten the screws once appropriate position is achieved. - Page 6 3. With the mounting brackets securely attached, position the unit in the appropriate location on the wall and mark the four holes. Remove unit from wall and drill the holes. Secure the unit to the wall with appropriate screws. (Wall screws are not included.) 4.
- Page 7 The coupler will snap back into place and secure the connection. GAS WILL NOT FLOW INTO LID IF THE COUPLER IS NOT PROPERLY ATTACHED. 6. Place the Euthanex Lid(s) on the cage(s), and the system is ready for operation.
-
Page 8: Operating The System
Operating the Lab Control Unit : 1. Be sure CO source is open, and the regulator/flow meter is set for the correct flow rate. 2. The EA-34000 offers four distinct timing choices. Select the desired timing cycle on the timing selector switch. Longer timing cycles are recommended for multiple cages or when treating larger animals. - Page 9 3. Press the On/Off button located on the left side of the controller. The green “Ready” light will turn on. 4. To begin the euthanasia cycle, press the green “Start” button. The red “Run” light will turn on, indicating that the cycle is operating. ...
-
Page 10: Changing System Presets
If your location has lockout- tagout protocols please follow them. Preset times were determined based on extensive testing done by Euthanex Corp. and designed to comply with the latest guidelines of the AVMA Panel on Euthanasia. Refer to the Flow Rate to determine AVMA compliant flow rates and the timing presets. The following is the procedure for changing the preset times: 1. - Page 11 5. “Timer 1” screen will appear. Press “OK” and the first number will begin to flash. Use the Up/Down keys to increase or decrease the value. Use the Right/Left keys to move the cursor to the number you would like to change.
-
Page 12: Flow Rate & Preset Times
Flow Rate & Preset Times: Default times were chosen to comply with the latest guidelines of the AVMA Panel on Euthanasia and through extensive testing performed by Euthanex Corp. Times are customizable to facility needs. The programmable times may be changed by a designated administrator.
