Summary of Contents for Kinfine HOMEPOP K7596.29

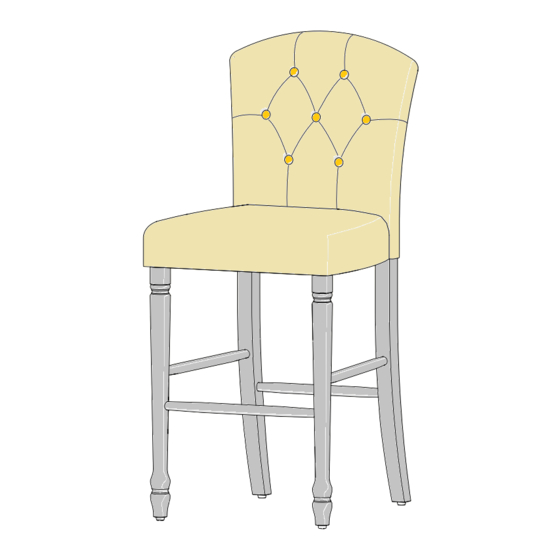

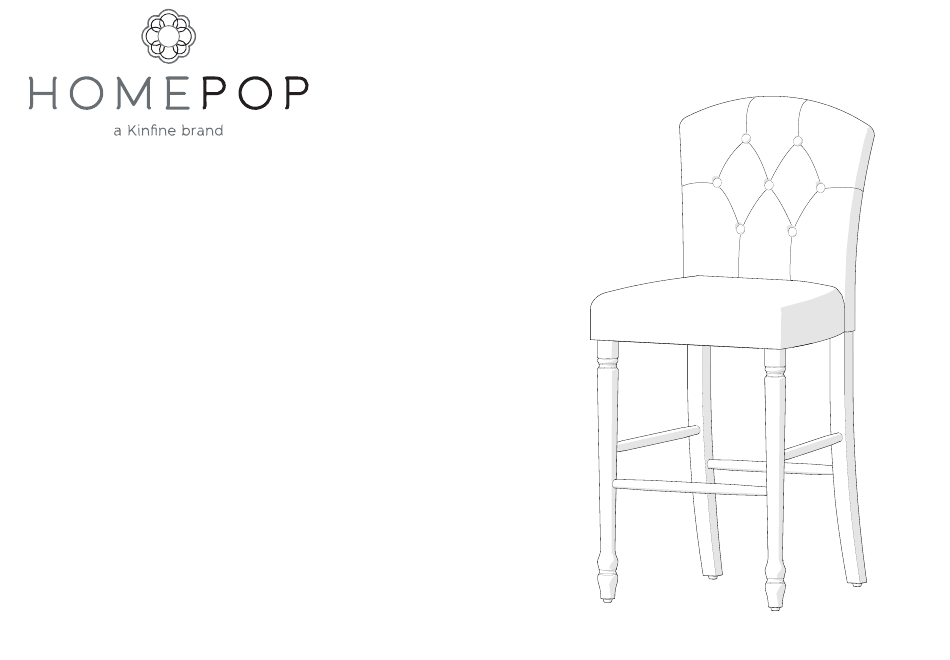

- Page 1 Open Back 29" Barstool Style Number : K7596.29 >>assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest HomePop purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents ..........introduction hardware parts list assembly 6 - 10 QUESTIONS? Just email service@kinfine.com or call 1-888-626-0888 parts and service. For fast service, have the style number and article number ready when calling.
- Page 4 hardware ................(A) x 4 (B) x 6 5/16" x 90mm 5/16" x 55mm round hex screw round hex screw (C) x 4 (D) x 10 (E) x 10 Screw Flat head 50mm Φ 8mm lock washer Φ 22mm flat washer (F) x 1 5mm Ball end Hex wrench...
- Page 5 ITEM DESCRIPTION QUANTITY ................chair back seat cushion front leg...
- Page 6 step 1................v e lc r o . O p e n th e (B) x 4 (D) x 4 (E) x 4 (F) x 1 5/16" x 55mm 5mm Ball end Φ 8mm lock washer Φ 22mm flat washer round hex screw Hex wrench Please do not assemble with power tools...
- Page 7 step 2................Do not tighten these two bolts until the next step. (B) x 2 (D) x 2 (E) x 2 (F) x 1 5/16" x 55mm 5mm Ball end Φ 8mm lock washer Φ 22mm flat washer round hex screw Hex wrench Please do not assemble with power tools until all screws are lined up with the frame.
- Page 8 step 3................Now you may tighten all 6 bolts. (A) x 4 (D) x 4 (E) x 4 (F) x 1 5/16" x 90mm 5mm Ball end Φ 8mm lock washer Φ 22mm flat washer round hex screw Hex wrench Please do not assemble with power tools until all screws are lined up with the frame.
- Page 9 step 4................Using philip screw driver tighten all the screws. Close the velcro. (C) x 4 Screw Flat head 50mm...
- Page 10 step 5................A friendly reminder from us: Please keep the Allen wrench. After a period of time, there may be a chance the KD furniture may become loose, please use an Allen wrench to tighten the loose bolts. Adjustable leveling feet ( This part is already attached on the end cap of 4 legs.
