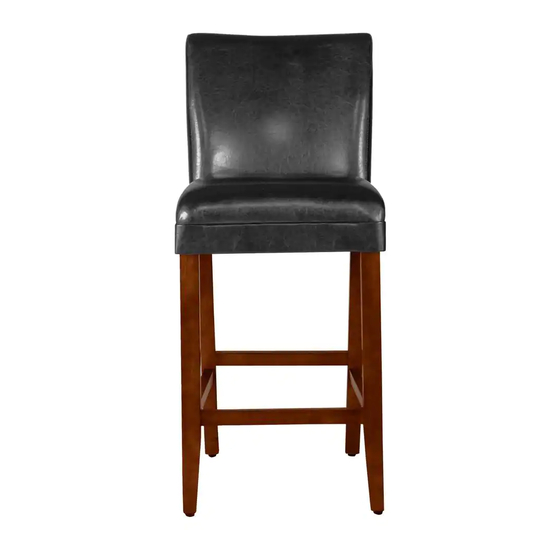

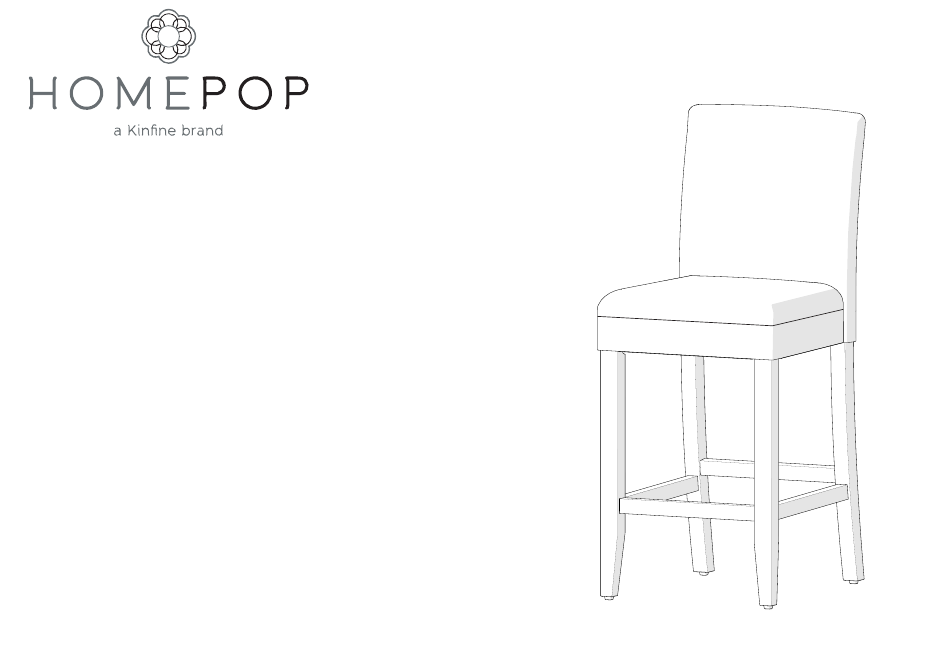

- Page 1 Open Back 29" Barstool Style Number : K1401.29 >>assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest HomePop purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents ..........introduction hardware parts list assembly 6 - 12 QUESTIONS? Just email service@kinfine.com or call 1-888-626-0888 parts and service. For fast service, have the style number and article number ready when calling.
- Page 4 hardware ................(A) x 4 (B) x 2 (C) x 4 5/16" x 90mm 5/16" x 70mm 5/16" x 60mm round hex screw round hex screw round hex screw (D) x 2 (E) x 2 (F) x 10 (G) x 10 (H) x 4 1/4"...
- Page 5 ITEM DESCRIPTION QUANTITY ................chair back seat cushion front leg...
- Page 6 step 1................v e lc r o . O p e n th e (C) x 4 (F) x 4 (G) x 4 (L) x 1 5/16" x 60mm Φ 8mm lock washer Φ 22mm flat washer 5mm Ball end round hex screw Hex wrench Please do not assemble with power tools.
- Page 7 step 2................(E) x 2 (H) x 2 (I) x 2 (M) x 1 1/4" x 20mm 4mm Ball end Φ 6mm lock washer Φ 15mm flat washer round hex screw Hex wrench Please do not assemble with power tools.
- Page 8 step 3................Do not tighten these two bolts until the next step. (B) x 2 (F) x 2 (G) x 2 (K) x 1 (L) x 1 5/16" x 70mm Φ 8mm lock washer Φ 22mm flat washer dowel 10x40mm 5mm Ball end round hex screw Hex wrench...
- Page 9 step 4................Now you may tighten all 6 bolts. (A) x 4 (F) x 4 (G) x 4 (L) x 1 5/16" x 90mm Φ 8mm lock washer Φ 22mm flat washer 5mm Ball end round hex screw Hex wrench Please do not assemble with power tools.
- Page 10 step 5................Use plugs to cover the holes. (D) x 2 (H) x 2 (I) x 2 (J) x 2 (M) x 1 1/4" x 45mm plug 4mm Ball end Φ 6mm lock washer Φ 15mm flat washer round hex screw Hex wrench Please do not assemble with power tools.
- Page 11 step 6................Close the velcro.
- Page 12 step 7................A friendly reminder from us: Please keep the Allen wrench. After a period of time, there may be a chance the KD furniture may become loose, please use an Allen wrench to tighten the loose bolts. Adjustable leveling feet ( This part is already attached on the end cap of 4 legs.
