Summary of Contents for Thunderbook COLOSSUS W105
- Page 1 Quick user’s guide COLOSSUS W105...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents..............3 Device Description..............4 Replacing the battery...............6 Inserting SIM & Micro-SD cards..........8 Safety Instructions..............10... -
Page 3: Package Contents

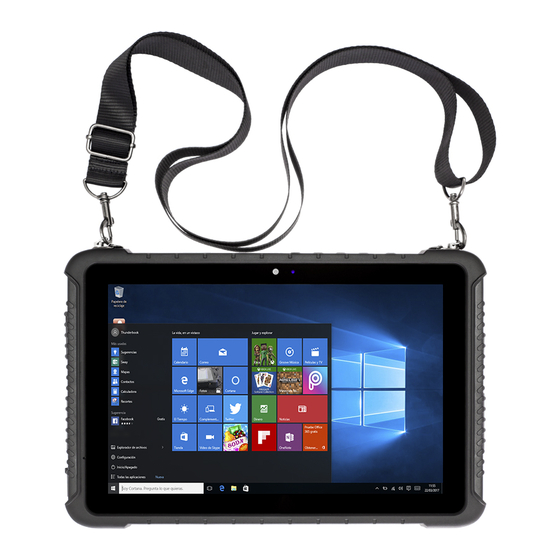

Package Contents Check your product box for the following items: - Rugged Tablet Colossus W105 - Hand Strap - Carying Case Handle - DC-Jack Charger - USB Charger - Carrying Bag This device is in compliance with the essential safety requirements and other relevant provisions... -
Page 4: Device Description
DEVICE DESCRIPTION Webcam Ambient light sensor Touchscreen... - Page 5 Barcode Scanner Trigger Kensington Lock Accessories Attachement Audio-in Mini-HDM I POGO-Pi Micro-USB USB Type A RJ-45 (Ethernet) DC-in RS-232 (COM) Volume - / + Camera Programmable Button Barcode Scanner (Optional) Power Button Hand Strap Fixation Points 10 11 12 13 19 20...
-
Page 6: Replacing The Battery
Removing the battery Warning: Make sure the device is properly shut down before attempting to remove the battery. Removing the battery 1. Remove the six screws as indicated in the picture with a flat screwdriver. (Image 6.1) 2. Lift up the cover using the opening tab.Lift the battery up by its back end. - Page 7 INSERTING THE BATTERY Inserting the battery 1. Insert the battery with the contact side first into the battery compartment and slide the battery to the end. 2. Push down the other side of the battery and close the two battery latches (Image 7.1) 3.
-
Page 8: Inserting Sim & Micro-Sd Cards
Inserting SIM & Micro-SD cards Warning: • Before inserting SIM or SD card the device has to be shut down. • To install or to remove the SIM card or SD card, the battery Has to be removed first (page 6). Inserting the mini SIM card The slot accepts only mini SIM cards. -
Page 10: Safety Instructions
SAFETY INSTRUCTIONS Warning: Please read and observe carefully before using the device! Batteries: • Batteries are parts whose life cycle depends on handling. If no failure is reported within 3 months after receipt of the equipment, the battery will be considered to be functioning properly. - Page 11 Environment: Protect the device from temperatures outside the specified range. The device is protected against spray water but must not be submerged in water or be exposed to water jets. Do not expose the unit to strong magnetic fields or strong static electricity. Once water or liquid has entered the unit, turn it off and do not use until it is dried.
