Angelo Decor P006B User Manual

Solar / hybrid fountain pump

SOLAR / HYBRID FOUNTAIN PUMP USERS MANUAL

Please see our website

BEFORE YOU BEGIN – ASSEMBLY

Unpack all components

carefully.

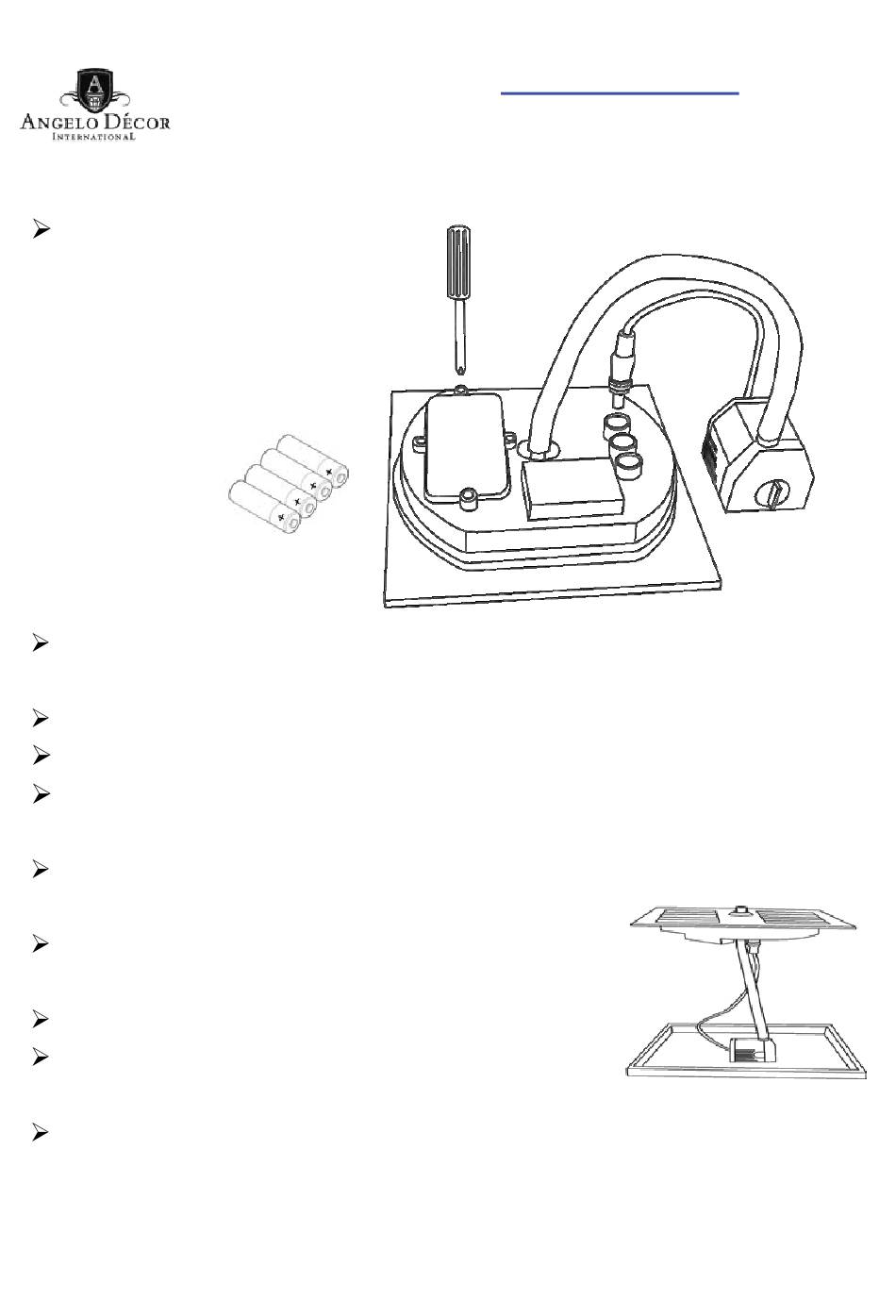

Install the 4 batteries (supplied), in proper orientation (+/-), in the

housing at rear of solar panel using the small screwdriver (supplied)

TIGHTEN BATTERY COVER SECURELY FOR PROPER SEAL

Fully charge the unit direct sunlight (minimum 8 hours

Connect the pump cable to the correct socket of the housing

on the rear side of the solar panel.

Connect the tubing to the pump and

input on the solar panel as shown.

Adjust flow control on pump to desired strength.

Install assembled unit into the fountain,

ensuring the pump sits at bottom of water reservoir.

Fill fountain water reservoir area to capacity,

ensuring the pump is completely submersed in water.

for video version of assembly and use

angelodecor.com

Table of Contents

Need help?

Do you have a question about the P006B and is the answer not in the manual?

Page 1 SOLAR / HYBRID FOUNTAIN PUMP USERS MANUAL Please see our website angelodecor.com for video version of assembly and use BEFORE YOU BEGIN – ASSEMBLY Unpack all components carefully. Install the 4 batteries (supplied), in proper orientation (+/-), in the housing at rear of solar panel using the small screwdriver (supplied) TIGHTEN BATTERY COVER SECURELY FOR PROPER SEAL Fully charge the unit direct sunlight (minimum 8 hours PREPARATION FOR USE...
Page 2 OPERATING INSTRUCTIONS  Choose an area for fountain placement with clear access to full sun for all or part of the day to maximize the solar charge to the batteries.  Place the unit on a level surface to achieve proper water flow. Turning on / off the pump and memory system: ...
Page 3 CLEANING AND MAINTENANCE Solar panel: The panel should be cleaned periodically with a soft tissue. Regular cleaning of the panel is advised to maintain optimum conversion of the sun’s energy into direct current. Pump: To prevent build up of sediment, scale or dirt in the impeller or filter, remove the pump cover and the impeller cover.
Page 4 (c) Operating time is shorter than preset time. Not enough electricity stored in the batteries. Charge properly. 7. TECHNICAL DATA Item Number P006B Solar panel 1.2W – 7V Pump Operation Voltage DC 4.5V – 6.5V Maximum Water lift 0.5 meter...
