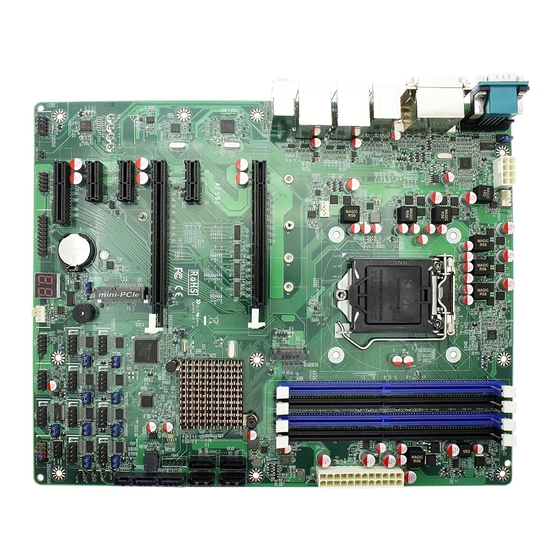

JETWAY NAF591 Series User Manual
  1. Manuals
  2. Brands
  3. JETWAY Manuals
  4. Motherboard
  5. NAF591 Series
  6. User manual

JETWAY NAF591 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NAF591 Series
User's Manual
No. G03-NAF591-F
Rev: 4.0
Release date: October 1, 2019
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAF591 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JETWAY NAF591 Series

Summary of Contents for JETWAY NAF591 Series

  • Page 1 NAF591 Series User’s Manual No. G03-NAF591-F Rev: 4.0 Release date: October 1, 2019 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

  • Page 2: Table Of Contents

    TABLE OF CONTENT ENVIRONMENTAL SAFETY INSTRUCTION ................iii ENVIRONMENTAL PROTECTION ANNOUCEMENT .............. iii USER’S NOTICE ........................iv MANUAL REVISION INFORMATION ..................iv ITEM CHECKLIST ........................iv CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD SPECIFICATION ......................1 LAYOUT DIAGRAM ....................2 CHAPTER 2 HARDWARE INSTALLATION JUMPER SETTING .....................

  • Page 3: Environmental Safety Instruction

    Environmental Safety Instruction  Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet.  0 to 40 centigrade is the suitable temperature. (The figure comes from the request of the main chipset) ...

  • Page 4: User's Notice

    USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.

  • Page 5: Chapter 1 Introduction Of The Motherboard

    Chapter 1 Introduction of the Motherboard 1-1 Specification Spec Description Design  ATX form factor; PCB size: 30.5 x24.5 cm ®  Intel Q170 Express Chipset Chipset ®  Supports Intel Core™ i7, Core™ i5, Core™ i3 series, LGA1155 ® Pentium processor in LAG1151 Package (Max.

  • Page 6: Layout Diagram

     1* Front panel audio header  1* HDMI-SPDIF header  1* GPIO header  1* TPM 1.2 header  2* front panel USB 2.0 header (support 4* expansion USB 2.0 ports)  1* Front panel header  1* Speaker header+ 1* POWER LED header ...
  • Page 7 Motherboard Internal Diagram ATX 12V Power Connector Serial Port over HDMI Port SYS FAN1 Header DDR4 DVI-D Port over DIMM Slot x 4 Display Port LGA 1151 CPU Socket PS/2 KB & MS Port over USB 3.0 Ports ATX Power Connector CPUFAN Header RJ-45 LAN Ports...
  • Page 8 Motherboard Jumper Position CASE_OPEN AT_MODE JP10 JP12 JP13 JP11 Jumper JBAT Jumper Name Description COM1 Port Pin9 Function Select 4-pin Block JP13 COM2 Header Pin9 Function Select 4-pin Block COM3 Header Pin9 Function Select 4-pin Block COM5 Header Pin9 Function Select 4-pin Block COM7 Header Pin9 Function Select 4-pin Block...
  • Page 9 Connectors Connector Name ATXPWR ATX Power Connector ATX12V ATX 12V Power Connector COM1 Serial Port COM Connector HDMI High-Definition Multimedia Interface Connector DVI-D Port Connector Display Port Connector PS2_USB1 Top: PS/2 Keyboard & Mouse Combo Port Middle & Bottom: USB 3.0 Connector X2 UL1/UL2 Top:RJ-45 LAN Connector X2 Middle &...

  • Page 10: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation 2-1 Jumper Setting JP1 (4-pin): COM1 Port Pin9 Function Select → COM1 Port 2-4 Closed: 3-4 Closed: 4-6 Closed: RI=RS232; RI= 5V; RI= 12V; JP13 (4-pin): COM2 Header Pin9 Function Select → JP13 COM2 Header 2 4 6 2 4 6 1 3 5 1 3 5...
  • Page 11 JP4 (4-pin): COM5 Header Pin9 Function Select → COM5 Header 2 4 6 2 4 6 1 3 5 1 3 5 2-4 Closed: 3-4 Closed: 4-6 Closed: RI=RS232; RI= 5V; RI= 12V; JP5 (4-pin): COM7 Header Pin9 Function Select →...
  • Page 12 JP9 (4-pin): COM4 Header Pin9 Function Select → COM4 Header 2 4 6 2 4 6 1 3 5 1 3 5 2-4 Closed: 3-4 Closed: 4-6 Closed: RI=RS232; RI= 5V; RI= 12V; JP10 (4-pin): COM6 Header Pin9 Function Select JP10→COM6 Header 2 4 6 2 4 6...
  • Page 13 JP12 (4-pin): COM10 Port Pin9 Function Select JP12→COM10 Header 2 4 6 2 4 6 1 3 5 1 3 5 2-4 Closed: 3-4 Closed: 4-6 Closed: RI=RS232; RI= 5V; RI= 12V; JP7 (2-pin): ME Features Select → ME Features 1-2 Open:ME Features Enabled;...
  • Page 14 JBAT (2-pin): Clear CMOS Function Settings → JBAT Clear CMOS Pin1 1-2 Open: Normal； Pin1 1-2 Closed: Clear CMOS. CASE_ OPEN (2-pin): Case Open Message Display Function Select → CASE_OPEN Case Open Detection Pin1 1-2 Open: Normal； Pin1 1-2 Closed: Case Open Function Selected. Pin 1-2 Closed: Case open display function enabled.

  • Page 15: Connectors And Headers

    AT Mode Selected: Directly power on as power input ready. Connectors and Headers 2-2-1 Rear I/O Back Panel Connectors *Refer to Page-2. Icon Name Function Mainly for user to connect external MODEM or RS232/422/485 other devices that supports Serial Port Serial Communications Interface.

  • Page 16: Motherboard Internal Connectors

    2-2-2 Motherboard Internal Connectors (1) ATXPWR (24-pin block): Main Power Connector ATX Power Supply connector: This is a new defined 24-pins connector that usually comes with ATX case. The ATX Power Supply allows using soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard.
  • Page 17 (2) ATX12V (8-pin block): 12V Power Connector This is a new defined 8-pin connector that usually comes with ATX Power Supply that supports extra 12V voltage to maintain system power consumption. Without this connector might cause system unstable because the power supply can not provide sufficient current for system.
  • Page 18 * Note: Port A & B can function as SATA III 6Gb/s port as well when not connected with a SATA Express device. (5) M2: M2 Socket 3 Connector This M2 Socket 3 connector support compatible type 2242/2260/2280/22110 SATA & PCIE x4 SSD module.

  • Page 19: Header Pin Definition

    2-2-3 Header Pin Definition (1) FP_AUDIO (9-pin): Line-Out, MIC-In Header This header is connected to Front Panel Line-out, MIC connector with cable. Pin 1 (2) HDMI_SPDIF (2-pin): HDMI-SPDIF Out header Pin1 (3) GPIO (10-pin): GPIO Header Pin 1...
  • Page 20 (4) TPM (19-pin): TPM Header Pin 1 (5) USB 2.0 Port Headers (9-pin): USB3/USB4 Pin 1 (6) FP (9-pin): Front Panel Header Pin 1...
  • Page 21 (7) SPK_LED(7-pin): PWR LED Header & Speaker Header Pin 1 (8) SM_BUS (5-pin): SM BUS Header Pin1 SMBUS_CLK SMBUS_DATA SMBUS_ALERT VCC3 (9) LAN1_LED/ LAN2_LED (2-pin): LANLED Header Pin1...
  • Page 22 (10) COM2/3/4/5/6/7/8/9/10 (9-pin): Serial Port Header Pin NO. RS232 *RS422 *RS485 (optional) (optional) DATA- Pin 1 DATA+ Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 *Notice: COM2 header can function as RS232/422/485 port header. In normal settings COM2 functions as RS232 header.
  • Page 23 (12) Dual Channel Memory Installation config Slot 1 Slot 2 Slot 3 Slot 4 install install install install install install install install Notice!  For dual channel installation, you need to install the same brand, speed, size and type memory module. ...

  • Page 24: Chapter 3 Introducing Bios

    Chapter 3 Introducing BIOS Notice! The BIOS options in this manual are for reference only. Different configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.

  • Page 25: Function Keys

    Menu Bar General Help Items Current Setting Value Menu Items Function Keys BIOS Menu Screen Function Keys In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: ...

  • Page 26: Menu Bars

    3-5 Menu Bars There are six menu bars on top of BIOS screen: Main To change system basic configuration Advanced To change system advanced configuration Chipset To change chipset configuration Security Password settings Boot To change boot settings Save & Exit Save setting, loading and exit options.
  • Page 27 ► Trusted Computing Press [Enter] to enable or disable ‘Security Device Support’. Security Device Support Use this item to enable or disable BIOS support for security device. TCG EFI protocol and INT1A interface will not be available. The optional settings: [Disabled]; [Enabled]. ►...
  • Page 28 Activate Remote Assistance Process Use this item to enable or disable Trigger CIRA boot function. USB Configure Use this item to enable or disable USB configure function. PET Progress Use this item to enable or disable PET events progress to receive PET events or not.
  • Page 29 PS2 KB/MS Wake-up The optional settings: [Enabled]; [Disabled]. Use this item to enable or disable PS2 KB/MS wake-up from S3(/S4/S5). *This function is supported when ErP Function is set as [Disabled]. Ring Wake-up The optional settings: [Enabled]; [Disabled]. Use this item to enable or disable Ring Wakeup. ►...
  • Page 30 The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], the following sub-items shall appear: WatchDog Wake-up Timer Value in ERP User can select a value in the range of [10] to [4095] seconds when ‘WatchDog Reset Timer Unit’ set as [Sec]; or in the range of [1] to [4095] minutes when ‘WatchDog Reset Timer Unit ’...
  • Page 31 Configuration/Serial Port 10 Configuration Press [Enter] to make settings for the following sub-items: Serial Port Use this item to enable or disable serial port (COM). Change Settings Use this item to select an optimal setting for super IO device.  Serial Port Console Redirection Press [Enter] to make settings for the following sub-items: COM1 Console Redirection...
  • Page 32 The optional settings: [Disabled]; [Enabled]. When set as [Enabled], user can make further settings in ‘Console Redirection Settings’ screen:  Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.
  • Page 33 Press [Enter] to go to next screen to enable or disable ‘Intel Ready Mode Technology’. Intel Ready Mode Technology The optional settings: [Disabled]; [Enabled]. *When set as [Enabled], user can also make further settings in the following items that appear: Intel RMT State Use this item to enable or disable Intel RMT enabling status in BIOS.

  • Page 34: Chipset Menu

    This option controls the execution of UEFI and Legacy PXE OpROM. The optional settings are: [Do not launch]; [UEFI]; [Legacy]. Storage This option controls the execution of UEFI and Legacy Storage OpROM. The optional settings are: [Do not launch]; [UEFI]; [Legacy]. Other PCI devices This item is for PCI devices other than Network, Mass storage or video defines which OpROM to launch.
  • Page 35 ► System Agent (SA) Configuration Press [Enter] to make settings for the following sub-items: VT-d The optional settings are: [Enabled]; [Disabled]. This item might not be available depending on configuration. ► Graphics Configuration Press [Enter] to make further settings for Graphics Configuration. Graphics Configuration Primary Display Use this item to select which of graphics device should be primary display.
  • Page 36 appear based on your selection. VGA modes will be supported only on primary display. The optional settings are: [VBIOS Default]; [HDMI]; [DP]; [DVI]. *When set as [HDMI], [DP] or [DVI], the following sub-item shall appear: Secondary IGFX Boot Display The optional settings are: [Disabled]; ; [HDMI]; [DP]; [DVI]. ►...

  • Page 37: Security Menu

    3-9 Security Menu Security menu allow users to change administrator password and user password settings. 3-10 Boot Menu Boot Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. Bootup Numlock State Use this item to select keyboard numlock state.

  • Page 38: Save & Exit Menu

    3-11 Save & Exit Menu Save Changes and Reset This item allows user to reset the system after saving the changes. Discard Changes and Reset This item allows user to reset the system without saving any changes. Restore Defaults Use this item to restore /load default values for all the setup options. Save as User Defaults Use this item to save the changes done so far as user defaults.
