Winding the bobbin

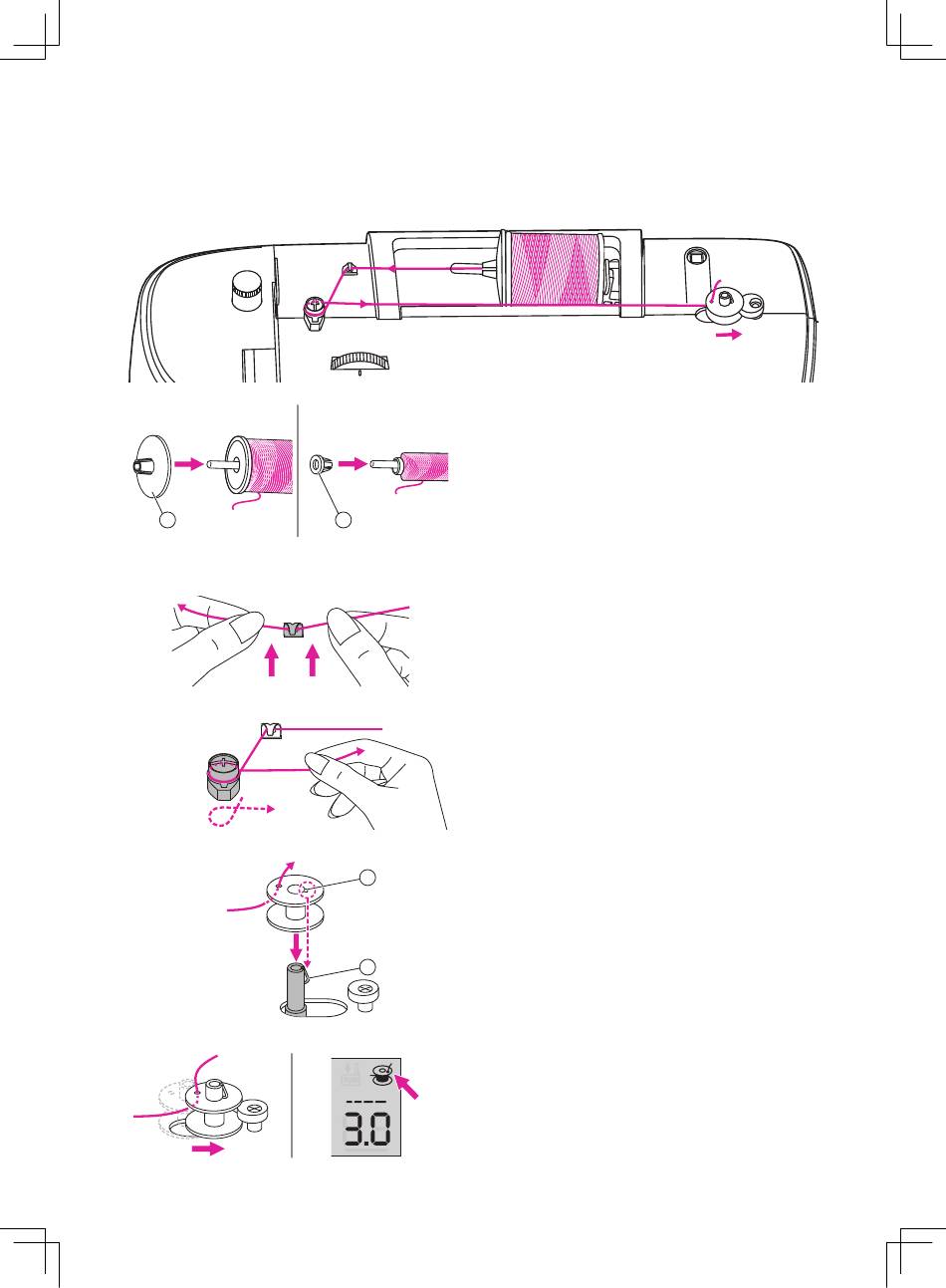

Please following the number order and see the corresponding illustrations below.
1
1. Place the thread and spool holder onto
the spool pin. For better sewing quality,
choose a proper size of the spool holder
for the thread and attach it next to the
spool.
①
②
2
2. Draw the thread from the spool and place
the thread in between the upper thread
guide.
3. Wind the thread clockwise around the
tension discs.
4. Place the thread end through one of
1
the inner holes as illustrated and place
the empty bobbin on the bobbin winder
spindle. Then align the notch with bobbin
winder spindle spring.
①
②
2
5. Push the bobbin to the right. When the
bobbin winder spindle is pushed to the
right, the screen will display the figure.
8
Large spool holder
Small spool holder
Notch
Bobbin winder spindle spring
