Schulz MSW 60 MAX Manual

C A S T I R O N
DISPLACEMENT
MODEL
cfm
MSW 60 MAX 60
T8
56
64 37 34
B
42 41 40
33
34 37
39 38
34 37
33
50
B
49
51
63
A
1
2 4
T3
3
T5
11
No. DENOMINATION
CODE
1 709.1307-0 Flywheel
2 * UNC 1/4" x 3/4" head bolt
3 20505001 Flange cover
4 830.1033-0 Crankcase gasket kit
5 60082501 Oil seal
6 830.0932-0 Lock washer and nut
7 60154502 33109 bearing
8 * NC 1/2" x 1" head bolt
9 20504001 Flange
10 60154501 32211 bearing
11 830.0933-0 Crankshaft
12 60267503 Key
13 * UNF 3/8" x 3" head bolt
14 20508005 Crankshaft counter weight
15 830.0934-0 Auxiliary connecting rod pin
16 30008502 Connecting rod
17 830.0930-0 Master connecting rod
18 60152502 Connecting rod inner bushing
19 60152501 Connecting rod bushing
20 30007001 Counter weight with centrifugal mechanism
21 830.0937-0 Counter weight kit with centrifugal mechanism
22 * UNF 5/16" x 1.1/4" head bolt
23 20501002 Crankcase
24 830.0775-0 3/4" oil level sight
25 003.0029-2 3/8" plug
26 709.1316-0 Crankcase cover
27 * UNC 5/16" x 3/4" head bolt
28 003.0031-4 3/4" plug
29 60273501 LP 4.3/4" piston
30 830.1000-0 HP 90 mm piston
31 000.0077-0 LP 90 mm ring kit
32 000.0080-0 HP 4.3/4" ring kit
33 830.1001-0 Upper gasket kit
34 830.1002-0 HP 90 mm valve plate kit

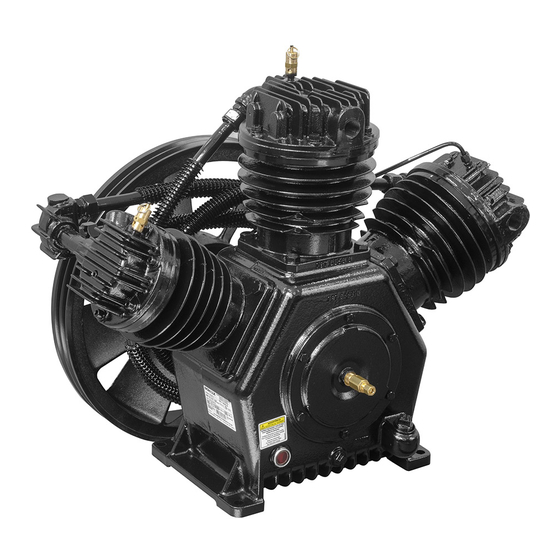

COMPRESSOR MSW 60 MAX
COMPRESSOR MSW 60 MAX
I N D U S T R I A L
TECHNICAL DATA
TECHNICAL DATA
MAX. PRESSURE RPM
psig
175 1020
T1 T11
43 59
T2
8
57
58
T9
4
T9 T10
32 - 31
30 - 29
17
16 19
14
T6
13
A
12
11
8
T2
6
11
10
62
45
9
54 53
7
5
46
48
BARE PUMP PARTS
BARE PUMP PARTS
QUANTITY
C O M P R E S S O R S
MOTOR PULLEY
MOTOR BELT
hp
2 POLES
mm
15 2-B
150
35 36
17
19
18
T7
22
20
21
16
15
54
44 65
47
No.
CODE
01 35 709.1306-0 LP 4.3/4" cylinder
04 36 709.1308-0 HP 90 mm cylinder
01 37 830.0955-0 LP 4.3/4" valve plate kit
01 38 809.1028-0 LP 4.3/4" valve plate
01 39 809.1027-0 HP 90 mm valve plate
01 40 709.1272-0 LP 4.3/4" cylinder cover with breather
01 41 709.1390-0 LP 4.3/4" cylinder cover
18 42 709.1303-0 HP 90 mm cylinder cover
01 43 * LP UNC 3/8" x 1.1/2" head bolt
01 44 709.1322-0/C No. 1 short intercooler
01 45 709.1322-0/L No. 2 long intercooler
01 46 709.1322-0 Intercooler kit
02 47 21011004 3/4" nut for intercooler
01 48 21029003 Intercooler holder
02 49 830.0340-5 1/4" crankcase breather tube
02 50 003.0054-3 NPT 1/8" x 1/4" straight connection
01 51 830.0599-8 1/4" ring kit
02 52 21011001 3/4" x 1/2" straight connection
05 53 21011002 3/4" x 3/4" straight connection
01 54 022.0177-0 1/8" LP ASME safety valve
01 55 022.0174-0 Centrifugal unloading valve
02 56 013.0752-0 M6 x 1 x 55 Allen hex bolt
01 57 007.0118-0 Filter element
01 58 007.0116-0 Air filter
01 59 383.0111-0 HP 5/16" x 1.1/2" Allen hex bolt
01 60 21011009 BSPT 3/4" x 100 niple
06 61 20517005 Intercooler adaptor
01 62 003.0111-6 BSP 90 3/4" elbow
02 63 60259501
Straight fitting
01 64 830.1032-0
Washer kit
01 65 022.0189-0
HP 1/8" ASME safety valve
02 - 709.1323-0 Pulley (not shown)
01
* Part available in the market - not sold by Schulz
01
Note: HP = high pressure LP = low pressure
OIL CAP. WEIGHT
IN LBS
IN IN QT
inch
1.5 1.58 276
5.9
27 55
T4
28
26
4
25
24
23
4
Position
T1
43
T2 8
T3 2
T4 27
T5
11
61 52
T6 13
T7 22
60
T8
56
T9 HP-LP 34/37
HP 37
T10
T11
59
TABLE 1 - TORQUE
ESPECIFICATION FOR BOLTS
DENOMINATION
0
TWO STAGES
TWO STAGES
175 PSIG 175 PSIG
DISCHARGE
SIZE
1" BSP
51
lbf.IN N.m
304 34
704 80
70 8
158 18
1215 137
334 38
185 21
141 16
19 2.2
44 5
264 30
QUANTITY
02
01
02
02
01
01
01
01
12
01
01
01
04
02
01
01
01
02
02
02
01
05
02
02
06
01
01
02
01
01
01
01
