Summary of Contents for Medion LIFE S16599

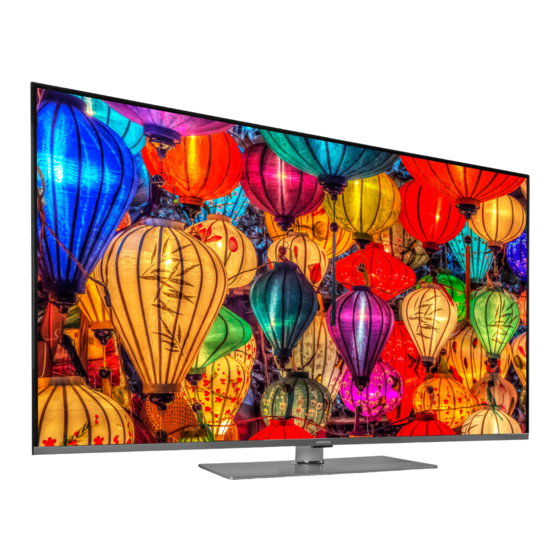

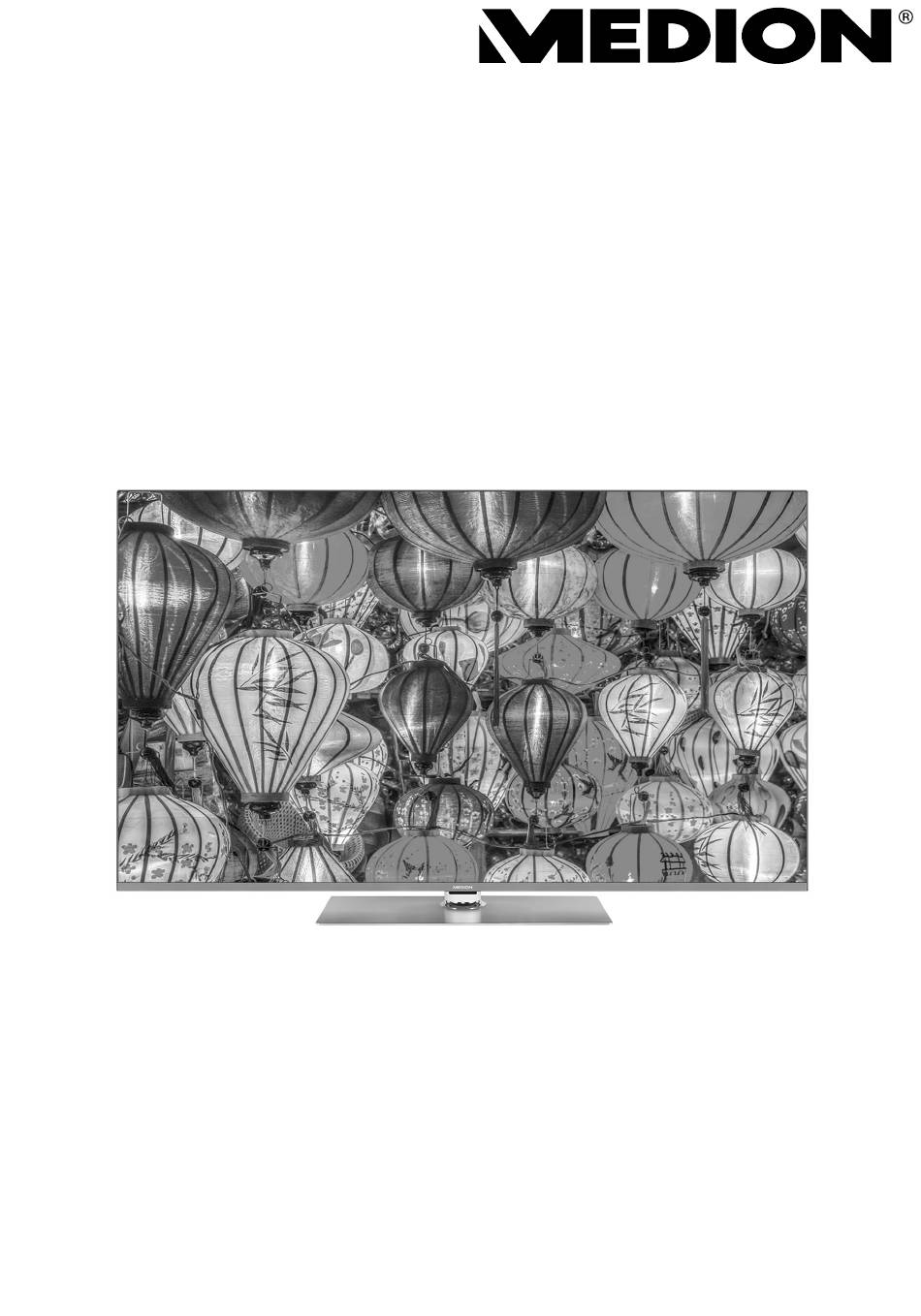

- Page 1 Operating instructions Ultra HD Smart-TV ® ® MEDION LIFE S16599 (MD 31399)
-
Page 2: Table Of Contents
10.1. Home page .............................. 28 10.2. Source menu............................35 10.3. Applications menu ..........................35 10.4. Settings menu ............................36 10.5. TV menu ..............................55 10.6. Media browser menu .......................... 58 HbbTV system ........................60 MEDION® Life Remote app ....................60... - Page 3 Data protection MEDION® Smart TV ................. 62 Troubleshooting ......................... 63 14.1. Do you need more help? ........................65 14.2. Smart TV pixel faults ..........................65 Cleaning ..........................66 Storing the device when not in use ................... 66 Disposal ..........................67 Technical specifications .....................
-
Page 4: Information About These Operating Instructions
1. Information about these operating instructions Thank you for choosing our product. We hope you enjoy using this device. Read the safety instructions carefully before using the device for the first time. Note the warnings on the device and in the operating instructions. Always keep the operating instructions close to hand. -
Page 5: Proper Use
Protection class II Electrical devices in protection class II are devices that have double and/or reinforced in- sulation throughout, and do not have the option of connecting a protective earth. The housing of an electrical device in protection class II, with surrounding insulating material, may either form all of the additional or reinforced insulation, or part of it. -
Page 6: Package Contents
2. Package contents Please check your purchase to ensure that all the items are included and contact us within 14 days of purchase if any parts are missing. The following items are supplied with your product: • Ultra HD Smart TV •... -
Page 7: Safety Information
3. Safety information 3.1. Operating safety − Before using the device for the first time, check the device for damage. A defective or damaged device may not be operated. − This device may be used by children over the age of 8 and by persons with limited physical, sensory or mental abilities or by those without experience and knowledge, if they are supervised or have been instructed in the safe use of the device and have un- derstood the dangers that result from it. -
Page 8: Installation Location
− the device has fallen or its housing is damaged − The device produces smoke 3.2. Installation location − Place the TV set on a sturdy, level surface. Some aggressive varnishes can corrode the rub- ber feet on the device. −... -
Page 9: Ambient Temperature
− Do not place the TV on suspended furniture, such as wall cupboards or shelves, with- out safely and securely fixing both the furniture and the TV set. Take care to ensure that the furniture is mounted correctly and do not exceed its maximum load. −... -
Page 10: Safety When Connecting
3.5. Safety when connecting 3.5.1. Power supply − Even when deactivated, some of the device components are live. To disconnect the power to your Smart TV or to completely isolate the device from voltage sources, dis- connect the device from the power supply completely. To do so, remove mains plug from the socket. -
Page 11: Handling Batteries
3.6. Handling batteries WARNING! Risk of explosion! Batteries may contain combustible materials and leak, heat up excessively, ignite or even explode. Avoid improper handling of the batteries to prevent damage to your device and your health. Please follow the safety advice below closely: −... -
Page 12: Eu - Declaration Of Conformity
4. EU – Declaration of Conformity Medion AG hereby declares that this device complies with the required regulations in the EU and the fundamental requirements and the other relevant provisions of the following: • Radio Equipment Directive 2014/53/EU • Ecodesign Directive 2009/125/EC •... -
Page 13: Overview Of The Device
5. Overview of the device 5.1. Front OFF/ON LCD screen Mains switch Infrared sensor: Reception field for the infrared TV signals. Operating light: Lights up when the device is in standby mode. -
Page 14: Rear And Right-Hand Side
5.2. Rear and right-hand side 5Vdc Max. 500mA 5Vdc Max. 500mA 13 Vdc/18 Vdc SPDIF Optic. out Video BACK AV IN COMMON INTERFACE (CI+): Card slot for connecting pay TV cards USB (5V , 500 mA max.): USB connection for media playback/recording (PVR) HDMI 1: HDMI connection for devices with a HDMI output : For connecting headphones with 3.5 mm jack Multifunction button for channel switching (), input source selection (pressing the but-... -
Page 15: Remote Control
5.3. Remote control... - Page 16 Teletext: Call up subpages EXIT : Exiting the menu MEDION : Open the MEDION® portal : Multifunction button for channel position or input source, switching between DVB-S, DVB-T and DVB-C channels Red button: For teletext or menus Green button: For teletext or menus...
-
Page 17: Using The Device For The First Time
5.3.1. Programming the multifunction buttons buttons can be programmed to any channel position or a particular input source Start by selecting the function you require and then hold down the corresponding button for 5 MY BUTTON IS SET seconds until appears on the screen. -
Page 18: Inserting Batteries In The Remote Control
6.3. Inserting batteries in the remote control Loose the screw of the battery compartment cover on the back of the remote control and re- move the cover. Insert two LR03 (AAA) 1.5 V batteries in the battery compartment of the remote control. Check the battery polarity (inscribed on the bottom of the battery compartment). -
Page 19: Using The Multimedia Connections
6.7. Using the multimedia connections NOTICE! Risk of damage! Incorrect operation can cause damage to the equipment used. Before wiring and first use, you must also read the operating instructions of the devices you are connecting. Take care to ensure that all devices are switched off during wiring. - Page 20 6.7.5. USB A USB port can be used to connect and read storage media such as USB sticks or external hard drives. Use a suitable USB cable. If a suitable USB cable is supplied, you should use this (e.g. for hard drives).
-
Page 21: Station Search After Switching On For The First Time
Afterwards, press to continue. Then you will be prompted to accept the MEDION® Smart TV data protection information. This is necessary if you intend to make use of the network/Internet services. Read the data protec- tion information carefully. Use to select the individual points and press to confirm, where applicable. - Page 22 WoWLAN). This enables you to switch on the Smart TV via a different device (e.g. a smartphone with the MEDION® Life Remote app). Both devices must be connected to the same network via LAN or WLAN for this purpose. Select the setting to activate the function.
- Page 23 6.8.2. Transmission type Select Broadcast Type: Scan Encrypted Channels Select favourite network type None D. Aerial D. Cable Satellite Analogue Next BACK EXIT HOME Before starting the station search, select the following options: SCAN ENCRYPTED CHANNELS : Use to select whether encrypted channels should also be se- ...
-
Page 24: Operation
7. Operation 7.1. Channel selection buttons on the remote control, use the To select a channel, press either one of the multi- function switch on the device or select the channel directly using the number buttons. For a two- or three-figure number, press the number buttons in the corresponding order. ... -
Page 25: Displaying Information
Please note that not all picture formats are available depending on the chosen picture source. 7.4. Displaying information 12:50-13:00 Now: ARTE Journal Information about the current channel arte HD 100% 12:50 ARTE Journal > Press the INFO button to display information about the current channel. The infobar is also dis- played if different signal inputs are used. -
Page 26: Selecting The Source
7.6. Selecting the source Please note that the source (the connected device) is only recognised when connecting SOURCE SET- using the ) button or in the menu, if this source is activated in the TINGS > SYSTEM > SOURCES SOURCES > SOURCE SETTINGS menu or in the menu. -
Page 27: Teletext
8. Teletext Teletext is a free service broadcast by most channels and provides the latest news, weather, TV list- ings, share prices, subtitles and other information. Your TV set offers many useful functions for using teletext including multipage text, subpage saving and quick navigation. 8.1. -
Page 28: Using The On-Screen Display Menu (Osd Menu)
9. Using the On-Screen Display menu (OSD menu) 9.1. Navigating in the menu Press the menu button MENU ) to activate the OSD. Select the main menu with the direction buttons. Select the submenu from the main menu using the direction buttons. With some submenus, direct links open automatically here, giving you the option to ac- cess common options quickly and make settings. - Page 29 An Internet connection is required for this function. The media por- tal hides behind the MEDION button, but can also be called up using the MEDION button.
- Page 30 The open browser function is an app in the media portal and provides you with access to the Internet. After open- ing, predefined web pages and their logos are shown that you can select directly. You can use the keyboard function to enter URL addresses directly or control web pages via the activated search function.
- Page 31 To select channels for editing, select a station using the buttons and press . A menu then opens. Here, use the buttons to select TAG/UNTAG CHAN- . A check mark then appears after the station. To add further stations to the list, use the ...
- Page 32 You can create up to four favourites lists that you can call up lat- er. If you press the button, you can add the currently select- ed channel (or all marked channels) to one or more favourites lists. To do this, select for the desired list and press the ADD/REMOVE FA- EXIT...
- Page 33 If you wish to call up channels from individual satellites in the channel list, this is where you can select the desired sat- ellites. After pressing the button, the channels of the se- lected satellite appear in the channel list. Even after closing the channel list and re-opening it with the button, the previously filtered results...
- Page 34 The next table shows the options for the GUIDE Menu option Settings NOW/NEXT Select the view. This shows only the current and the next pro- gramme for all channels. FILTER enables you to restrict the display according NOW/NEXT TIMELINE SCHEDULE to certain criteria and takes you back to the original dis- play.
-
Page 35: Source Menu
10.2. Source menu This menu displays all active signal sources and can be selected with the button. Then press button to call up the selected source. TV mode (antennas, satellites and cable signals are played back) BACK AV Audio/video input (AV) HDMI1 HDMI input 1 HDMI2... -
Page 36: Settings Menu
10.4. Settings menu 10.4.1. Picture menu PICTURE MODE, ENERGY SAVING As soon as the menu is selected using the buttons, the PICTURE ZOOM submenus appear above for quicker navigation and can be selected directly. Picture Mode Natural Contrast Brightness Sharpness Colour Energy Saving... - Page 37 Menu option Settings Picture Dynamic Contrast Dynamic Contrast < < > > Medium Medium Medium Noise Reduction Colour Temp Normal White Point Picture Zoom Auto Picture Shift Film Mode Auto Skin Tone Colour Shift HDMI Full Range DYNAMIC CON- Set dynamic contrast: OFF, LOW, MEDIUM, HIGH TRAST This function reduces picture noise and improves pic-...
- Page 38 10.4.2. Screen menu when using VGA/PC as the source Picture Contrast Brightness Sharpness Colour Energy Saving Backlight Advanced Settings Dolby Vision Notification PC Position Reset Menu option Settings CONTRAST Increase or reduce contrast (on a scale of 0 to 100) BRIGHTNESS Increase or reduce brightness (on a scale of 0 to 100) SHARPNESS...
- Page 39 Menu option Settings Picture Dynamic Contrast Dynamic Contrast < < > > Colour Temp Normal White Point Picture Zoom 16:9 Picture Shift Film Mode Auto ADVANCED SET- DYNAMIC CON- TINGS OFF, LOW, MEDIUM, HIGH Set dynamic contrast: TRAST COLOUR TEMP NORMAL, WARM, COLD, CUSTOM Select colour tone: If under...
- Page 40 Menu option Settings With this setting the picture signal is synchronised to match with the monitor's pixel rate. This corrects errors DOT CLOCK that can appear as vertical stripes in pixel-dense imag- es (such as tables or text in small fonts). Set the frame rate using .
- Page 41 Set the headphone volume here. This can only be changed if HEADPHONE/ LINEOUT HEADPHONE is set to WARNING! Risk of hearing damage! HEADPHONE To prevent possible damage to your hearing, avoid listening at high volume over long periods of time. ...
- Page 42 10.4.4. Network menu Network Network Type Wireless Device Scan Wireless Networks Disconnect Press WPS on your wifi router Internet Speed Test Advanced Settings Wake on Connected WLAN 123.456.789.000 MAC: 11:2d:bb:33:ad:44 Wohnzimmer Network settings NETWORK TYPE Use to select the network type WIRELESS DEVICE WIRED DEVICE DIS-...
- Page 43 WoWLAN). This enables you to switch on the Smart TV via a different device (e.g. a smartphone with the MEDION® Life Remote app). Both devices must be connected to the same network via LAN or WLAN for this purpose. Select the setting to activate the function.
- Page 44 Menu option Setting This function is used for the direct entry of station or satellite transpond- er data. SEARCH TYPE Set the desired reception type here. SATELLITE The number buttons can be used to specify the fre- FREQUENCY quency to be searched. POLARISATION Select the polarisation level here.
- Page 45 Menu option Setting Select between digital cable or DVB-T station groups. This searches for related channels of the currently selected station. The information sent in this respect depends on the selected channel and leads to different NETWORK CHANNEL results. SCAN The existing channel list is replaced when the network search is started.
- Page 46 10.4.6. System menu As soon as you select the SYSTEM menu using the buttons, the direct links for the SLEEP TIMER, AUTO TV OFF, SUBTITLE AUDIO LANGUAGE appear above for faster SLEEP TIMER processing. You can use the to programme the device to switch off automati- cally.
- Page 47 Menu option Settings System < < > > Menu Menu English English English Preferred Primary Audio Language English All language settings are Secondary Audio Language English made and displayed in the Primary Subtitle Language English Secondary Subtitle Language English SPRACHE menu. Teletext West Guide...
- Page 48 Here you can set the audio language of the current programme, if more than one audio language is supported. AUDIO SYSTEM As soon as the menu is selected using the buttons, this menu appears above and can be selected directly. CURRENT Here you can set the subtitles for the current pro- gramme, if available.
- Page 49 Menu option Settings PARENTAL If you confirm this by press- System , a dialogue box opens. The password (or lock key) is requested. Upon delivery, the Menu lock Menu lock < < > > Guidance factory default password is Set PIN **** set to 0000.
- Page 50 Menu option Settings You can change the time settings here. DATE/TIME : Display the set date and time. The entries cannot be changed. TIME SETTINGS MODE : If you change the entry from AUTO MANUAL can adjust the selected time zone forwards or backwards in hour or half-hour AUTO steps.
- Page 51 Menu option Settings Calling up the Netflix app enables numerous films and series to be streamed directly over the Internet. This is a premium service and you must register when using the service for the first time. NETFLIX is a subscription service that enables its members to stream films and series (‘NETFLIX contents’) using Internet-enabled televi- sions, computers and other devices (‘NETFLIX supported devices’).
- Page 52 Menu option Settings System < < > > Menu Timeout Menu Timeout Standby Led Software upgrade V.4.35.8.0 MED Application Version V.4.11.50.0 Auto TV OFF 4 Hours Biss Key Audio Video Sharing Enabled Power Up Mode Last State Virtual Remote Enabled Enabled CEC Auto Power On Disabled...
- Page 53 VIRTUAL RE- must be activated if you wish to operate the TV remotely via MOTE a smartphone with the MEDION® Life Remote app (for more information see also page 60). (optional) Enable this function to enable all devices that are connected via HDMI to communicate with each other.
- Page 54 Menu option Settings The default setting for the speakers is TV so that only the in- ternal speakers are used to output the sound. This setting can only be changed if you have previously enabled the CEC function. If you have done so, it is possible to select the PLIFIER setting and integrate an external amplifier into a CEC network via the HDMI2 port.
-
Page 55: Tv Menu
10.5. TV menu HOME GUIDE CHANNELS As in the menu, the menus are available here. For more detailed ex- planations for both options, see section “Home menu”. 10.5.1. Timer menu Shift Timer TIM- If a shift timer has been programmed via the EPG, the relevant programme is displayed in the menu. - Page 56 DURATION The duration is determined automatically. ONCE, DAILY, Select the interval at which the timer is to be repeated ( REPEAT WEEKLY WEEKDAYS DISALLOWED is selected, a lock symbol appears. In this case, you can only CHANGE/DELETE open the entry with the PIN. PLAYBACK USE PARENTAL SETTINGS, ALLOWED, DISALLOWED Setting options:...
- Page 57 SETTINGS START EARLY : This is where you can specify that the recording is to start before the set start time. END LATE : This is where you can specify that the recording is to end after the set end time. MAX TIMESHIFT : This is where you can set the max.
-
Page 58: Media Browser Menu
10.6. Media browser menu If you connect a USB data medium to the Smart TV, you can play music files, images and videos. Information about using USB Certain types of USB devices (MP3 player) may not be compatible with this Smart TV. ... - Page 59 10.6.4. Loop function For media playback, you can activate an additional loop function, which either continuously re- peats the current media file (marked with a full stop) or repeats all files (no marking). 10.6.5. Random playback An additional random playback function plays all video, photo and music files on your USB storage in random order.
-
Page 60: Hbbtv System
The MEDION® Life Remote app is the innovative way to operate your MEDION® television from your smartphone via your home network. The MEDION® Life Remote application makes use of the features of your mobile phone – such as touch screen capability and motion sensor – to provide easy-to-use, convenient and improved op- tions for operating your MEDION®... - Page 61 Die MEDION® Life Remote app provides you with the functions of a remote control. By swiping up, down, left and right, you can navigate to the five operating interfaces with the following functions: Please note that certain buttons, depending on the model, may not be functional.
-
Page 62: Data Protection Medion® Smart Tv
Please check the privacy policy of the provider beforehand. MEDION® shall not be liable if the HbbTV, the portal or a service does not comply with the user’s re- quirements, nor does it guarantee that safe and error-free use of such services can always occur without restrictions, or continuously, at the required time. -
Page 63: Troubleshooting
14. Troubleshooting Malfunctions can sometimes have quite trivial causes, but they may also be the result of defective components. We have included a brief troubleshooting guide below which may help to solve any problems. If these measures don’t solve the problem, we’ll be more than pleased to help you fur- ther. - Page 64 Fault Actions TV switches off • Check whether the automatic switch-off function is activated under MORE... (see page 52). No reception/poor • Make sure that all required settings have been made. signal via a wire- • It may be too far from the router. In this case, the use of a repeater may less network con- be sensible.
-
Page 65: Do You Need More Help
14.1. Do you need more help? If the suggestions in the previous sections did not solve your problem, please contact us. To make it easier for us to help you, please have the following information to hand: • What external devices are connected? •... -
Page 66: Cleaning
15. Cleaning WARNING! Risk of electric shock! There is a risk of death due to an electric shock when the housing is open and you touch parts inside the device! Do not open the device housing. It does not contain any parts for maintenance by the user. -
Page 67: Disposal
17. Disposal Packaging Your device has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner. Device The adjacent symbol of a crossed out wheelie bin means that the device is subject to Di- rective 2012/19/EU. -
Page 68: Technical Specifications
18. Technical specifi cations Smart-TV Device name S16599 (MD 31399) Rated voltage 220–240 V ~ 50 Hz Rated voltage/current for satellite 13 V/18 V , 300 mA max. connection Screen size 163,9 cm (65”) LCD; 16:9 display Power consumption max. 200 Watt Power consumption in standby <... - Page 69 Remote control Transmission type Infrared LED classification Battery type 2 x 1.5V AAA R03/LR03 Ambient temperatures Permissible +5°C to +35°C ambient temperature Permissible relative humidity 20% – 85% Dimensions/weight Dimensions without foot (W x H x D) Approx. 1455 x 843 x 50 mm Dimensions with foot (W x H x D) Approx.
-
Page 70: Product Data Sheet
Manufactured under licence of Dolby Laboratories. Dolby and the double D symbol are registered trademarks of Dolby Laboratories. The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used by MEDION under licence. Blu-ray, USB, Android, Apple and other registered trademarks are property of their respective own- ers. -
Page 71: Service Information
• In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service Community at http://community.medion.com. • Alternatively, use our contact form at www.medion.com/contact. -
Page 72: Legal Notice
These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written per- mission of the manufacturer. Copyright is owned by the company: MEDION AG Am Zehnthof 77 45307 Essen Germany Please note that you cannot use the address above for returns. Please always contact our Customer... -
Page 73: Index
21. Index Media browser ............58 Ambient temperature ........9, Media portal .............. 60 Anschließen Multimedia connections Antenne ..............18 AV ................19 ARC ................54 HDMI ..............19 Audio video sharing ..........59 HDMI ARC ............. 19 Audio-video sharing ........HDMI CEC ............. - Page 74 Recording ..............56 Remote control ............15 Repairs ................9 Safety information .............7 Connection ............10 Operating safety ...........7 Power supply ............10 Satellite list ..............45 Screen settings ..........Selecting the source ..........26 Setting the time ............50 Software update ............52 Sound settings ............
