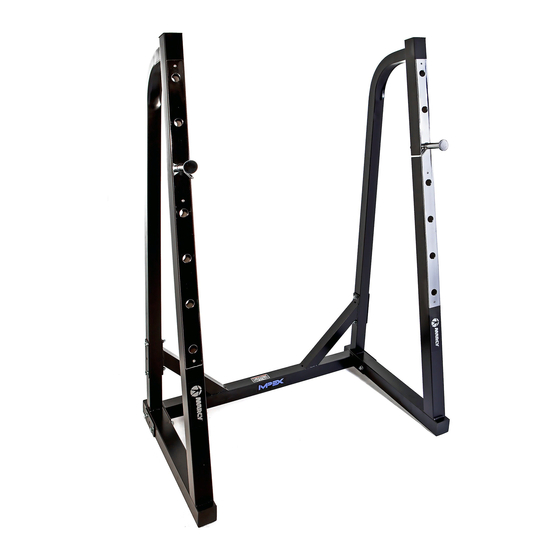

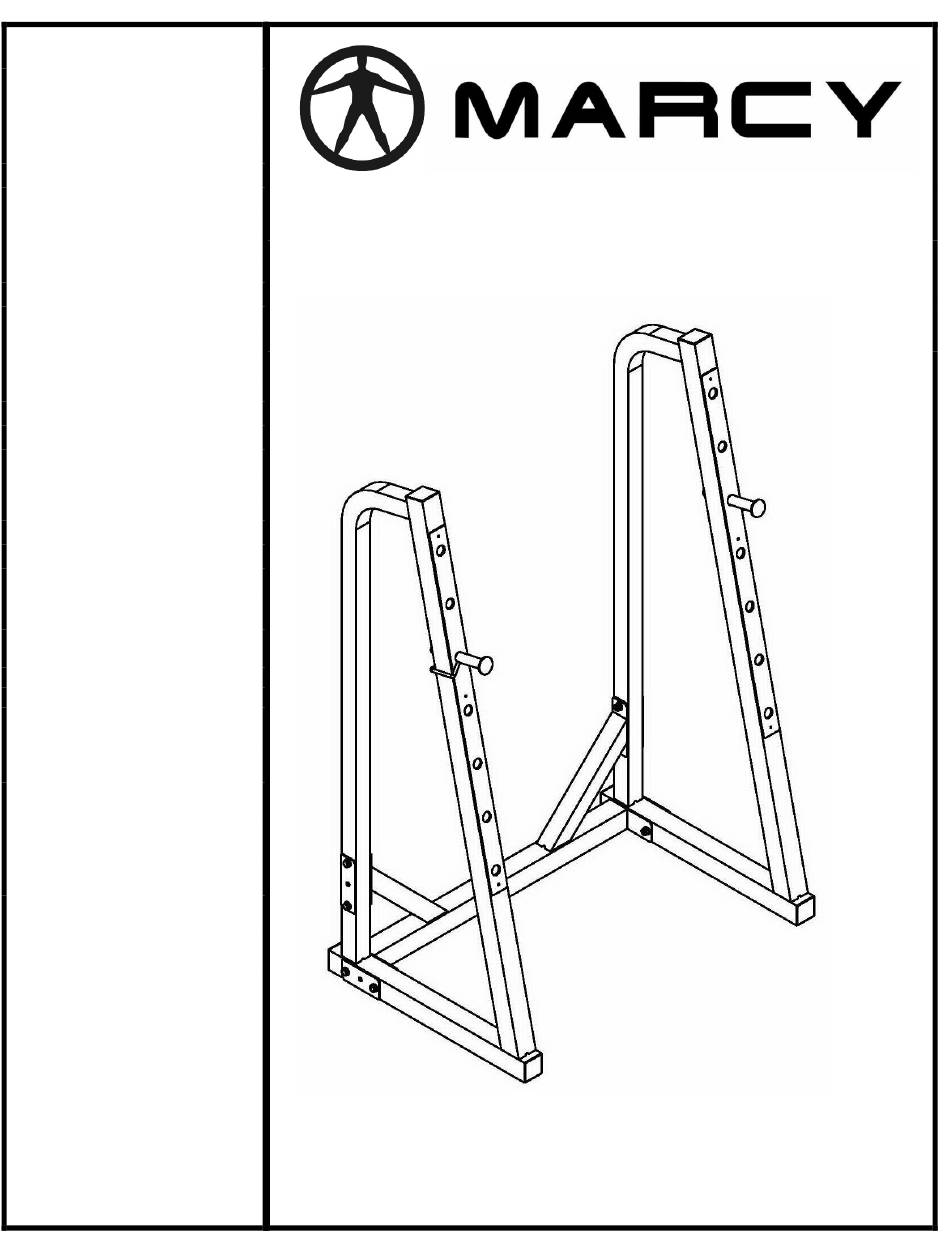

- Page 1 NOTE: Please read all instructions carefully before using this product MARCY SQUAT RACK SR50 Safety Notice Assembly Instruction Exploded Diagram Parts List Warranty Ordering Parts Model SR50 Retain This Manual for Reference 160826 OWNER'S MANUAL...
- Page 2 WARRANTY....................… ORDERING PARTS..................BEFORE YOU BEGIN Thank you for selecting the MARCY SQUAT RACK SR50. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory.
- Page 3 IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.
- Page 4 ASSEMBLY INSTRUCTION Tools Required Assemble The Machine: Two Adjustable Wrenches STEP 1 (See Diagram 1) A.) Attach the Support Frame (#2) to the Upright Beam (#1). Secure the top with two M10×3" Bolt (#10), one Long Bracket (#3), four Ø 7/8” Washers (#12), and two M10 Nuts (#13).
- Page 5 EXPLODED DIAGRAM...
- Page 6 Parts list KEY NO. DESCRIPTION Q’ty Upright Beam Support Frame Long Bracket Short Bracket Chrome Plate Right Bar Catch Left Bar Catch Square End Cap M10×3 1/4" Bolt M10×3" Bolt Screw Ø 7/8” Washer M10 Nut φ25 End Cap...
- Page 7 LIMITED WARRANTY Pure-Tec warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the frame and one year on all other parts and components from the date of purchase. This warranty extends only to the original purchaser. Pure-Tec’s obligation under this Warranty is limited to replacing damaged or faulty parts at Pure-Tec’s option.
