FMS-12055 MOTION SENSOR INSTRUCTIONS
SUMM ARY

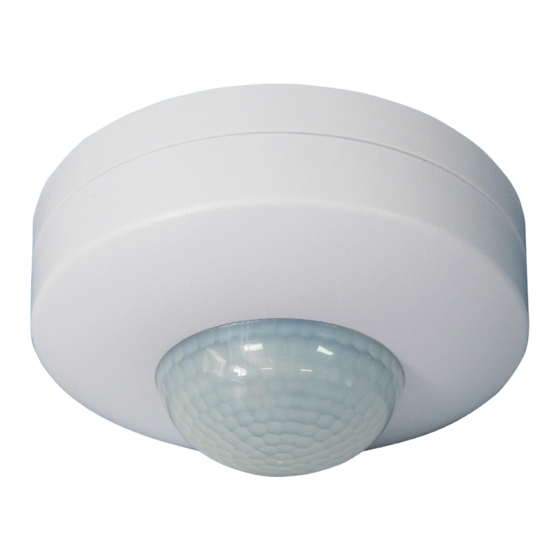

The FMS - 12055 Motion sensor is a surface mount ceiling sensor, and utilises infrared technology to detect
and identify motion, night and day.
Upon detection, the connected lighting load will illuminate for a user determined period of time.
SP EC I FI CAT I O N S
Power Source:
Power Frequency:
Ambient Height:
Time delay:
Rated Load:
Detection distance:
Detection range:
Cut out hole:
Manual Override:
Weatherproof Rating:
Warranty:
I N STA L L AT I O N
Note: All electrical connections relating to this installation must be carried out by a suitably qualified and
registered electrician.
The sensor should not be installed outside.
I NFO@MATE LE CAUS TR A LI A . CO M .AU.
220V - 240VAC
50HZ
3 - 2000 LUX (adjustable)
Min 10 seconds
Max 15 minutes
1200W (Incandescent)
300W (Fluro)
12m
360°
62mm
No
IP44
1 year
M ATE LE C AU S TR A LI A. P 18 00 281 282. F 1 300 281 282
W WW.MATEL ECAUSTRAL I A.CO M.AU
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Matelec FMS-12055
Summary of Contents for Matelec FMS-12055
- Page 1 FMS-12055 MOTION SENSOR INSTRUCTIONS SUMM ARY The FMS - 12055 Motion sensor is a surface mount ceiling sensor, and utilises infrared technology to detect and identify motion, night and day. Upon detection, the connected lighting load will illuminate for a user determined period of time.
- Page 2 As with all PIR motion sensors, the FMS - 12055 must be positioned away from any sources of heat (such as extractor fans, dryers, any air conditioning or heating registers, etc.) Reflective surfaces and overhanging branches may also cause false activation. Isolate the power Select a suitable location, based on the above.
