  • Page 1 DCF1000 DCF Radio Time Code Receiver User Manual Version 1.4...
  • Page 2 For further information and/or to view a copy of the World Time www.worldtimesolutions.com/support.html Solutions Limited Waste Electrical and Electronic Equipment Policy, please visit our web site at: www.worldtimesolutions.com/recycle.html DCF1000 - DCF Radio Time Code Receiver - User Manual - Version 1.4...

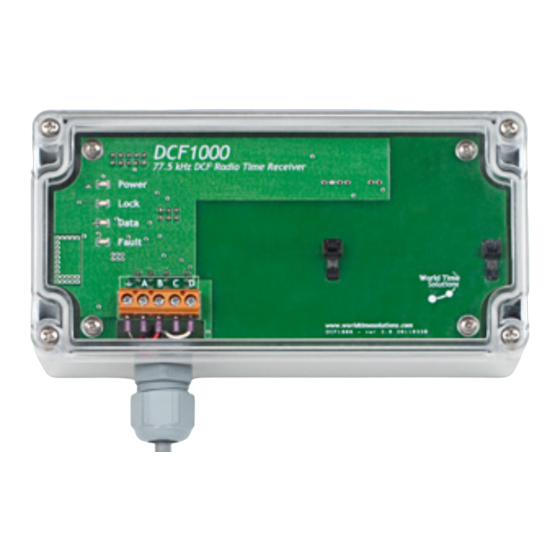

  • Page 3 IP66 (NMEA 4X) polycarbonate Cover fixings (x4) enclosure with clear cover Status LEDs Case fixing points (x4) Cable connection point Cable entry grommet Table 1.1 - DCF1000 functions DCF1000 - DCF Radio Time Code Receiver - User Manual - Version 1.4...
  • Page 4 DCF1000 cable fixing point to a Remote Synchronisation Input on the master clock. Please refer to the drawing on the following page and table 2.1 for details of cable connections. DCF1000 - DCF Radio Time Code Receiver - User Manual - Version 1.4...
  • Page 5 150m (500ft). For low smoke/plenum applications, the supplied cable should be substituted for a Belden 82502 (or equivalent) type cable. DCF1000 - DCF Radio Time Code Receiver - User Manual - Version 1.4...
  • Page 6 Alignment may be confirmed by slowly rotating the DCF1000 and observing the operation of the ‘Data’ LED. When correctly aligned, the ‘Data’ LED should flash once per second. DCF1000 - DCF Radio Time Code Receiver - User Manual - Version 1.4...
  • Page 7 -20 to +50 ºC Relative humidity: 0% - 95%, noncondensing Standards Compliance: Electrical Safety: BS EN 60950-1:2006 Radio Disturbance: BS EN 55022:2006 Immunity Characteristics: BS EN 55024:2003 DCF1000 - DCF Radio Time Code Receiver - User Manual - Version 1.4...
