Summary of Contents for Ovation MIN-E-10WW

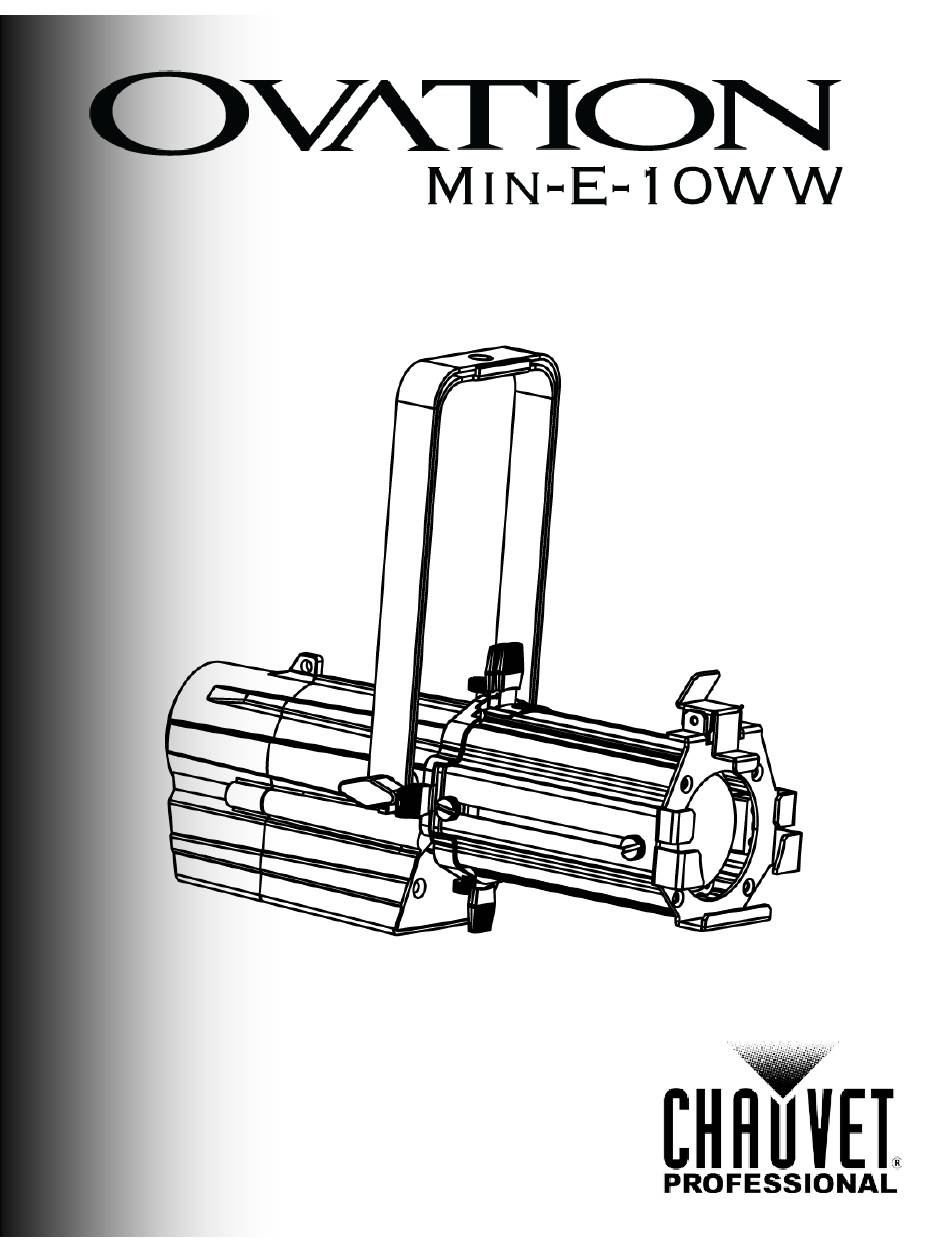

- Page 1 User Manual...
- Page 2 Document The OVATION Min-E-10WW User Manual Rev. 6 supersedes all previous versions of this manual. Discard any older versions of this manual and replace with this version. Go to Revision www.chauvetprofessional.com...
-
Page 3: Table Of Contents
Manual Beam Focus Control ................................ 7 Gel Frame Holder ..................................7 5. Technical Information ..........................8 Product Maintenance ..............................8 Cleaning the Reflector Housing Lens ............................8 6. Technical Specifications ........................... 9 Returns ..................................10 Contact Us ..............................10 OVATION Min-E-10WW User Manual Rev. 6... -
Page 5: Before You Begin
Important installation or configuration information. Failure to comply with this information may keep the product from working. Useful information. OVATION Min-E-10WW User Manual Rev. 6... -
Page 6: Safety Notes
In addition, limiting the overall projection intensity may extend the LEDs’ lifespan. OVATION Min-E-10WW User Manual Rev. 6... -
Page 7: Introduction
Introduction 2. I NTRODUCTION The OVATION Min-E-10WW is a compact warm white LED ellipsoidal product. The OVATION Description Min-E-10WW features standard beam shaping shutters, a gobo/effect slot, lens barrels that are interchangeable, and the capability to run on standard theater dimmers as well as 0–10 VDC dimmers. -
Page 8: Dimensions
Introduction Dimensions 5.12 in 130 mm 11.42 in 290 mm 9.76 in 248 mm 8.9 in 225 mm OVATION Min-E-10WW User Manual Rev. 6... -
Page 9: Setup
Technical Specifications chart in this manual. The OVATION Min-E-10WW has a second power input for a 0–10 V dimmer. The input is a 0–10 VDC push-button terminal connector, with a button for each wire. -
Page 10: Mounting
When hanging this product, always secure to a fastening device using a safety cable. For our CHAUVET® Professional line of safety cables, go to http://trusst.com/products/. The OVATION Min-E-10WW comes with a yoke to which you can either attach a mounting Procedure clamp for hanging. -
Page 11: Operation
Framing Shutters Use the framing shutters to tighten and shape the beam of the OVATION Min-E-10WW, or open them completely to allow the full beam to pass. The gobo holder slot has a sliding cover and is located in front of the top framing shutter. The... -
Page 12: Technical Information
2. Use a Phillips screwdriver to remove the lens from its fixed cover, if necessary. 3. Clean the lens as described in Product Maintenance. Always close the framing shutters when transporting or storing the product. OVATION Min-E-10WW User Manual Rev. 6... -
Page 13: Technical Specifications
Field angle 18° 34° Thermal Max. External Temperature Cooling System 113 °F (45 °C) Convection Ordering Product Name Item Code UPC Number OVATION Min-E-10WW 01121162 781462215101 (120 V) OVATION Min-E-10WW 01121163 781462215118 (230 V) OVATION Min-E-10WW User Manual Rev. 6... -
Page 14: Returns
Lerma, Mexico C.P. 52000 Voice: +52 (728) 285-5000 Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. OVATION Min-E-10WW User Manual Rev. 6...
