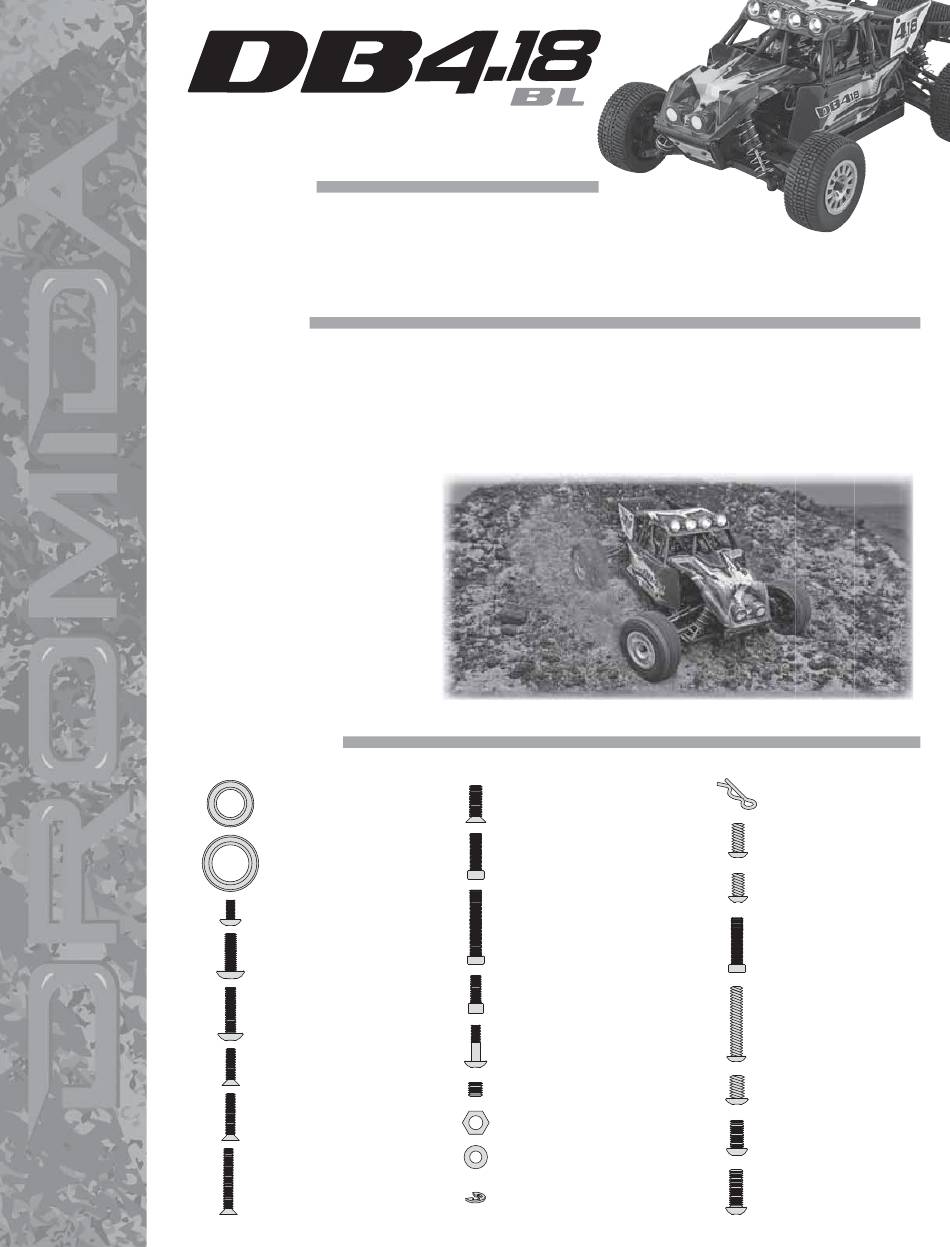

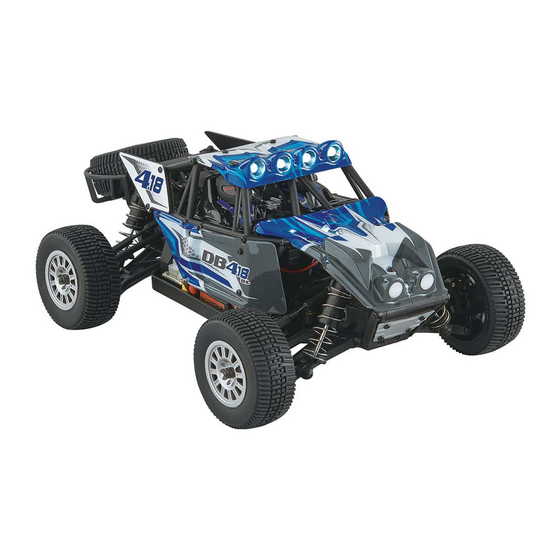

Dromida DB4.18 BL Assembly And Maintenance Manual

ASSEMBLY AND MAINTENANCE GUIDE
HELPFUL HINTS
✔ Avoid working over a deep pile carpet. If you drop a small part or screw,
it may be diffi cult to fi nd.
✔ Place a mat or towel over your work area. This will prevent parts from rolling off and will protect the work surface.
✔ Avoid running the car in cold weather. The plastic and metal parts can become brittle at low temperatures.
In addition, grease and oil become thick, causing premature wear and poor performance.
MAINTENANCE
BEFORE EACH RUN
✔ IMPORTANT: Check to make sure that
all screws are tight. Check that the servo
saver screw is fully tightened to ensure that
your Dromida DB4.18BL tracks straight.
✔ Always check the condition of your
radio system batteries and replace if
necessary.
✔ Check to make sure that all of the
moving parts of the Dromida DB4.18BL
move freely and do not bind.
✔ Turn on the radio and make sure the
servo moves easily and in the proper
direction.
✔ Check for any broken or damaged
parts. Replace them before running the
Dromida DB4.18BL. Running the Dromida
DB4.18BL with broken or damaged parts
could damage additional parts.
✔ Check to make sure that all wires are
properly connected.
HARDWARE CHART
A
6x10
MM BALL BEARING
B
8x12
MM BALL BEARING
C
2x4
MM ROUND HEAD SCREW
E
2x8
MM ROUND HEAD SCREW
F
2x10
MM ROUND HEAD SCREW
G
2x8
MM FLAT HEAD SCREW
H
2x10
MM FLAT HEAD SCREW
J
2x14
MM FLAT HEAD SCREW
AFTER EACH RUN
✔ Clean any debris from the chassis and
moving parts.
✔ Check for any broken or damaged parts.
Replace them before the next run.
✔ Disconnect and remove the battery
from the chassis.
ACTUAL SIZE
( WHEN PRINTED AT 100% )
K
2.5x8
MM FLAT HEAD SCREW
L
2.5x8
MM SOCKET HEAD SCREW
M
2.5x14
MM SOCKET HEAD CAP SCREW
N
2.5x6
MM SOCKET HEAD SCREW
P
2x8
MM ROUND HEAD
SHOULDER SCREW
Q
3x3
MM SET SCREW
R
3
MM LOCK NUT
S
2.6x5
MM WASHER
U
1.5x6
MM E-CLIP
™
AFTER EVERY 10 RUNS
✔ Check to make sure that the bearings
are free of dirt and debris, and roll
smoothly.
✔ Check the shocks for oil leakage.
✔ Check the tires to make sure they are
still properly glued to the rims.
V
BODY CLIP
2x6
X
ROUND HEAD SCREW
2x5
Y
ROUND HEAD SCREW
2.5x10
Z
HEAD SCREW
2x15
AA
ROUND HEAD SCREW
2x5
BB
ROUND HEAD SCREW
CC
3x6
MM BUTTON HEAD SCREW
DD
3x8
MM BUTTON HEAD SCREW
MM SELF-TAPPING
MM SELF-TAPPING
MM SOCKET
MM SELF-TAPPING
MM SELF-TAPPING
