FASTENING THE
INSTALLATION BRACKETS
Each cooker top is provided with an
installation kit including brackets and
screws for fastening the top to fixture
panels from 2 to 4 cm thick.
Turn the cooker top upside down and
fasten the brackets "F and R" to the
appropriate socket holes, without tight-
ening the screws "B" for the moment.

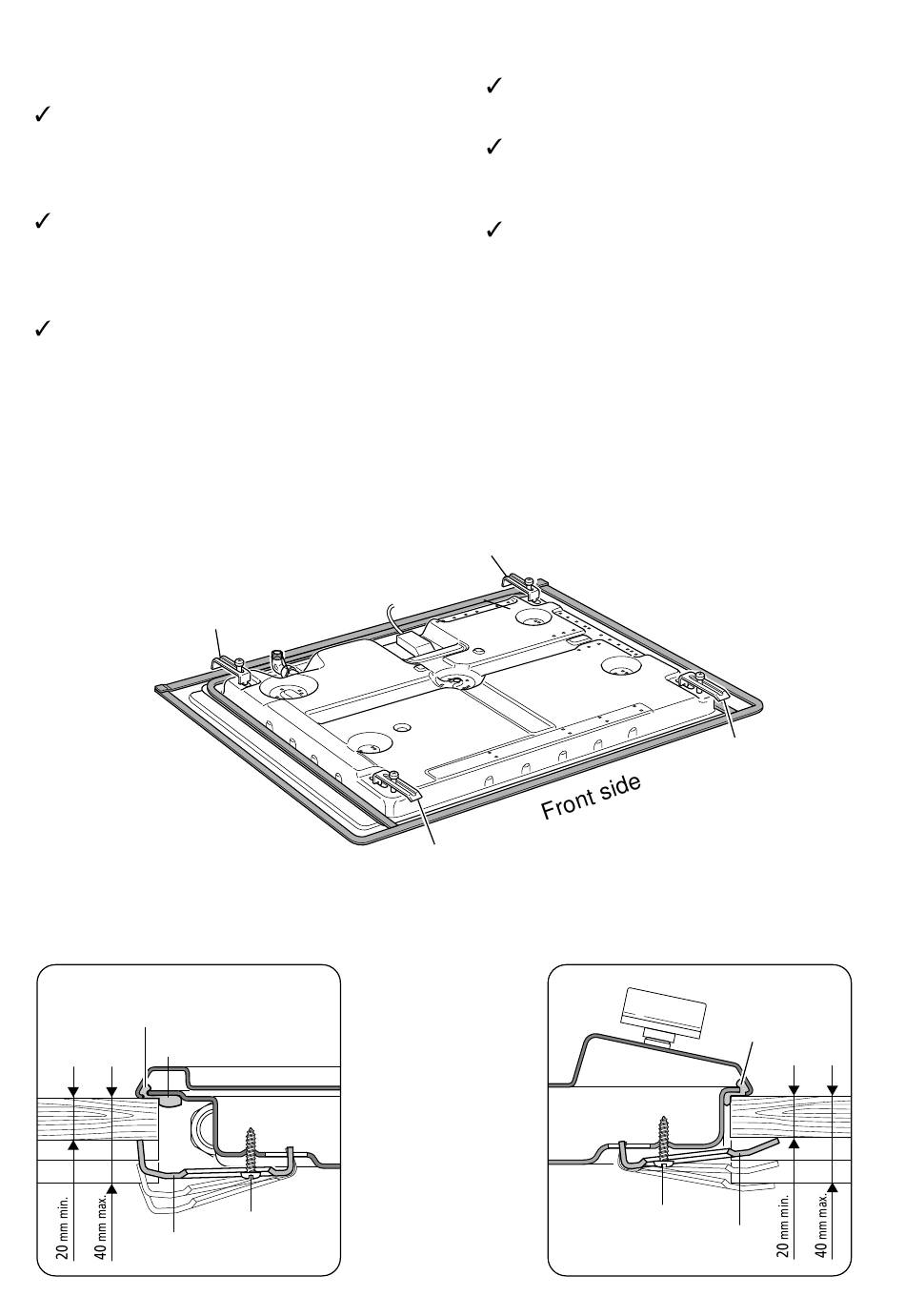

Make sure that the brackets are fas-
tened as shown in figures 4.5a, 4.5b
and 4.5c.
Fig. 4.5a
Rear side
seal C
seal A
R
R
B
Fig. 4.5b
FASTENING THE COOKER TOP
Insert the cooker top into the hole and
position it correctly.
Adjust the position of the brackets "F
and R" and tighten screws "B" to block
the cooker top firmly in position.
With a sharp cutter or trimmer knife
trim the excess sealing material
around the edge of the cooker top.
R
F
Fig. 4.5c
F
Front side
seal A
B
F
