This gas grill must be used only outdoors in a well-ventilated space and must not be used inside a
building, garage, screened-in porch, gazebo or any other enclosed area.
DANGER
IF YOU SMELL GAS:
• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
Notice to Installer: Leave these instructions with the grill owner for future reference.
N415-0274-AU JAN 24.18
Do not try to light this appliance without
reading the "LIGHTING" instructions section
of this manual.
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance. A ULPG cylinder
not connected for use must not be stored in
the vicinity of this or any other appliance.
If the information in these instructions is
not followed exactly, a fire or explosion may
result, causing property damage, personal
injury or death.
Wolf Steel Ltd.
214 Bayview Drive,
Barrie, Ontario, CANADA L4N 4Y8
grills@napoleonproducts.com

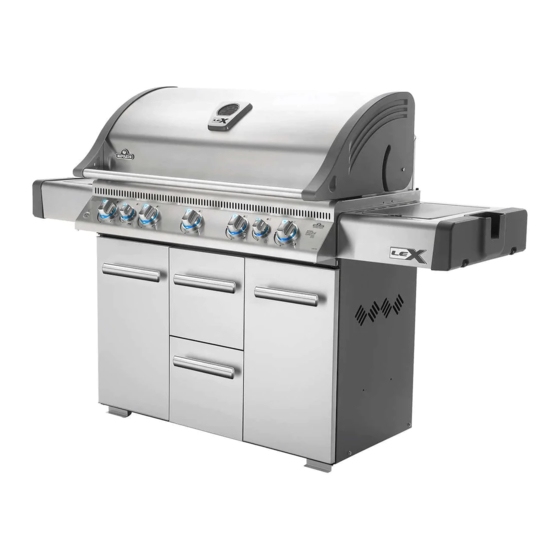

APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
XXXXXX000000
MODEL NO.
LEX 730
WARNING
SAI Global
SAI-400025
AS/NZS 5263.0
AS/NZS 5263.1.7
www.napoleongrills.com
PG.18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Napoleon LEX 730
Summary of Contents for Napoleon LEX 730
- Page 1 APPLY SERIAL NUMBER LABEL FROM CARTON Serial No. XXXXXX000000 MODEL NO. PG.18 LEX 730 DANGER WARNING IF YOU SMELL GAS: Do not try to light this appliance without reading the “LIGHTING” instructions section •...
- Page 2 NAPOLEON. NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and workmanship from the date of purchase, for the following period: Aluminum castings / stainless steel base ...........
-
Page 3: Safe Operating Practices
Never use natural gas in a unit designed for Universal Liquefied Petroleum Gas. • Never use lighter fluid in a gas grill. • Use charcoal briquettes only with a Napoleon charcoal tray designed for this unit. • Burner controls must be off when turning supply cylinder on. •... - Page 4 Location Locating Your Outdoor Gas Grill It is important when selecting a location for your gas grill to ensure clearances to adjacent combustibles are met. This appliance is intended for installation on an outdoor patio or in your yard. ‘This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection.’...
- Page 5 Dimensions OVERALL WIDTH OVERALL HEIGHT N415-0274-AU JAN 24.18 www.napoleongrills.com...
-
Page 6: General Information
General Information This gas grill is certified for outdoor use and should be installed to conform to local codes. Check gas type and specifications located on the rating plate located on the back panel of the grill. Natural Gas Hook-Up The installation must be performed by a licensed gas fitter in accordance with AS5601 / AG601, and all connections must be leak tested before operating the grill. - Page 7 Universal Liquefied Petroleum Gas Cylinder Specifications WARNING! If these instructions are not followed exactly, a fire causing death or serious injury may occur. This gas grill has been designed for use with an approved 9 kg size Universal Liquefied Petroleum Gas cylinder (not supplied).
- Page 8 Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Solutions department and have the grill inspected by a certified gas installer. If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer.
-
Page 9: Lighting Instructions
Lighting Instructions Side Burner Lights Rear Left Left Centre Centre Right Centre Infra Red Burner Burner Burner Burner Burner Burner WARNING! Off Position Open lid. WARNING! Ensure all burner controls are in the off position. Turn on the gas supply valve. -
Page 10: Operating The Grill
For example, a 3 pound chicken on the rotisserie will be done in approximately 1½ hours on medium to high. See ‘Your all Season Grill’ cookbook by Napoleon for more detailed instructions. - Page 11 Any juices or oils that escape from the food drip onto the charcoal and vaporize into smoke giving the food its delicious grilled taste. The Napoleon infrared burner cooks in the same way. In each burner, 10,000 ports – each with its own tiny flame – cause the surface of the ceramic tile to glow red.
- Page 12 This helps it to cook faster and more evenly. To add a trademark taste to your cooking, try adding mesquite-flavoured woodchips to your Napoleon woodchip smoker, optional accessory. Pork chops Medium 6 min. per side Trim off the excess fat before grilling.
-
Page 13: Maintenance / Cleaning Instructions
Maintenance / Cleaning Instructions We recommend this gas grill be thoroughly inspected and serviced annually by a qualified service person. At all times keep the gas grill area free from combustible materials, gasoline and other flammable vapors and liquids. Do not obstruct the flow of ventilation and combustion air. Keep the cylinder enclosure ventilation openings (located on the cart sides and at the front and back of the bottom shelf) free and clear from debris. - Page 14 Cleaning The Outer Grill Surface: Do not use abrasive cleaners or steel wool on any painted, porcelain or stainless steel parts of your Napoleon Grill. Doing so will scratch the finish. Exterior grill surfaces should be cleaned with warm soapy water while the metal is still warm to the touch. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner.
-
Page 15: Troubleshooting
Infrared Burners: Because of the high intensity of the infrared burner, most drippings and food particles that fall onto the burner surface are immediately incinerated. However, some debris and residue may remain. To remove this residue after cooking, operate the grill on high for 5-10 minutes. Do not clean the ceramic tile with a wire brush. - Page 16 Cracked ceramic tile. Allow burner to cool and inspect very closely for cracks. If any cracks are found, contact your authorized Napoleon dealer to order a replacement burner assembly. Leaking gasket surrounding the Contact your authorized Napoleon dealer for...
-
Page 17: Ordering Replacement Parts
3. A concise description of the problem (‘broken’ is not sufficient). 4. Proof of purchase (photocopy of the invoice). In some cases, Napoleon could request to have the parts returned to the factory for inspection before providing replacement parts. Before contacting Napoleon dealer, please note that the following items are not covered by the warranty: •... - Page 18 CAUTION! During unpacking and assembly we recommended you wear work gloves and safety glasses for your protection. Although we make every effort to make the assembly process as problem free and safe as possible, it is characteristic of fabricated steel parts that the edges and corners might be sharp and could cause cuts if handled incorrectly.
- Page 19 2 X N430-0002 16 X N570-0073 (1/4-20 X 3/8”) 3/8”(10mm) non revolving caster- left side N415-0274-AU JAN 24.18 www.napoleongrills.com...
- Page 20 Universal Liquefied Petroleum Gas Only 4 x N570-0080 (#14 x 1/2”) 3/8”(10mm) www.napoleongrills.com N415-0274-AU JAN 24.18...
- Page 21 6 x N570-0080 (#14 x 1/2”) 3/8”(10mm) Universal Liquefied Petroleum Gas Only N415-0274-AU JAN 24.18 www.napoleongrills.com...
- Page 22 4 x N570-0080 (#14 x 1/2”) 3/8”(10mm) 6 x N570-0080 (#14 x 1/2”) 3/8”(10mm) 2 X N430-0002 www.napoleongrills.com N415-0274-AU JAN 24.18...
- Page 23 2 x N570-0080 (#14 x 1/2”) 3/8”(10mm) N415-0274-AU JAN 24.18 www.napoleongrills.com...
- Page 24 4 x N570-0091 (1/4-20 X 3/8”) 3/8”(10mm) WARNING! Universal Liquefied Petroleum Gas Only - To avoid assembly difficulties, prior to mounting the grill head, remove zip tie holding regulator. This was installed at the factory to protect the regulator hose during shipping and is no longer required. (Take care when removing the tie not to damage the hose).
- Page 25 ATTENTION! Ensure that all tabs are bent down before installation. N415-0274-AU JAN 24.18 www.napoleongrills.com...
-
Page 26: Back View
4 x N570-0080 (#14 x 1/2”) 3/8”(10mm) Back View Front View ATTENTION! Ensure that all tabs are bent up after installation. www.napoleongrills.com N415-0274-AU JAN 24.18... - Page 27 2 x N570-0073 (1/4-20 X 3/8”) 3/8”(10mm) N415-0274-AU JAN 24.18 www.napoleongrills.com...
- Page 28 3/8”(10mm) 4 x N570-0099 (#14 x 3/4”) WARNING! Do not over tighten the screws, as this will cause the handle to crack. www.napoleongrills.com N415-0274-AU JAN 24.18...
- Page 29 8 x N570-0076 (#8 X 1/2”) 4 x N570-0013 (#8 X 5/8”) Engage edge of shelf under ribs in end cap. N570-0013 (#8 X 5/8”) N415-0274-AU JAN 24.18 www.napoleongrills.com...
- Page 30 4 x N570-0082 (1/4-20 X 5/8”) 4 x N735-0001 3/8”(10mm) Tabs located on either side of ice bucket must engage notches in side shelf. www.napoleongrills.com N415-0274-AU JAN 24.18...
- Page 31 3/8”(10mm) 4 x N570-0082 (1/4-20 X 5/8”) 4 x N735-0001 1 x N160-0023 Fit orifice into burner tube and secure with hose retainer clip supplied. Attach the wire to the side burner electrode. N415-0274-AU JAN 24.18 www.napoleongrills.com...
- Page 32 N570-0080 (#14 x 1/2”) 3/8”(10mm) Universal Liquefied Petroleum Gas Only 4 x N570-0099 (#14 x 3/4”) 4 x N340-0007 3/8”(10mm) WARNING! Do not over tighten the screws, as this will cause the handle to crack. www.napoleongrills.com N415-0274-AU JAN 24.18...
- Page 33 2 x N105-0011 2 x N160-0022 BOTTOM N415-0274-AU JAN 24.18 www.napoleongrills.com...
- Page 34 FOLD TABS OVER TO SECURE GLASS IN PLACE. www.napoleongrills.com N415-0274-AU JAN 24.18...
- Page 35 disposable grease tray N415-0274-AU JAN 24.18 www.napoleongrills.com...
- Page 36 www.napoleongrills.com N415-0274-AU JAN 24.18...
- Page 37 Rotisserie Kit Assembly Instruction (optional) Assemble rotisserie kit components as shown. Ensure stop bushing is tightened on the inside of hood casting. N415-0274-AU JAN 24.18 www.napoleongrills.com...
- Page 38 Universal Liquefied Petroleum Gas - Proper Hose Connection Clip hose to side panel using hose retainer clip supplied. Ensure the regulator drops into the small opening, between the tank heat shield and the right side of the cabinet. WARNING – FIRE HAZARD The regulator must be attached so that no part of the hose touches the underside of the grill or drip pan.
- Page 39 Natural Gas Only – Proper Hose Connection 3/4”(19mm) WARNING! The installation must be performed by a licensed gas fitter, and all connections must be leak tested before operating the grill. Do not use pipe dope or teflon tape on this connection. Tighten the connection with two wrenches.
- Page 40 Parts List Item Part # Description LEX730RSBI N590-0151-GY1SG bottom shelf N475-0236-GY1SG left/right cart enclosure panel N475-0326-GY1SG rear cart enclosure panel N655-0181-GY1SG front cabinet support N080-0212-GY1SG stabilizer brackets N130-0012 revolving caster N130-0013 non revolving caster N010-0765 drawer housing assembly N010-0766-M02 drawer assembly N735-0001 insulated washer N570-0082...
- Page 41 N135-0042-GY1HT left side lid casting N135-0043-GY1HT right side lid casting N585-0082 heat shield lid N010-0741 lid handle N385-0307-SER NAPOLEON logo W450-0005 logo spring clips N685-0013 temperature gauge N080-0287-GY1HT lid casting cover N570-0091 1/4-20 x 1/2” screw N570-0042 10-24 x 3/8”...
- Page 42 Parts List Item Part # Description LEX730RSBI N530-0047 regulator - NG N655-0094-GY1SG tank support N240-0030 rear burner electrode c/w pilot N200-0114 rear burner electrode cover N720-0073 pilot tube N455-0079 pilot orifice - LPG N455-0080 pilot orifice - NG N455-0077 rear burner orifice - LPG N455-0078 rear burner orifice - NG N200-0080-M02...
- Page 43 N415-0274-AU JAN 24.18 www.napoleongrills.com...
- Page 44 N415-0274-AU...
