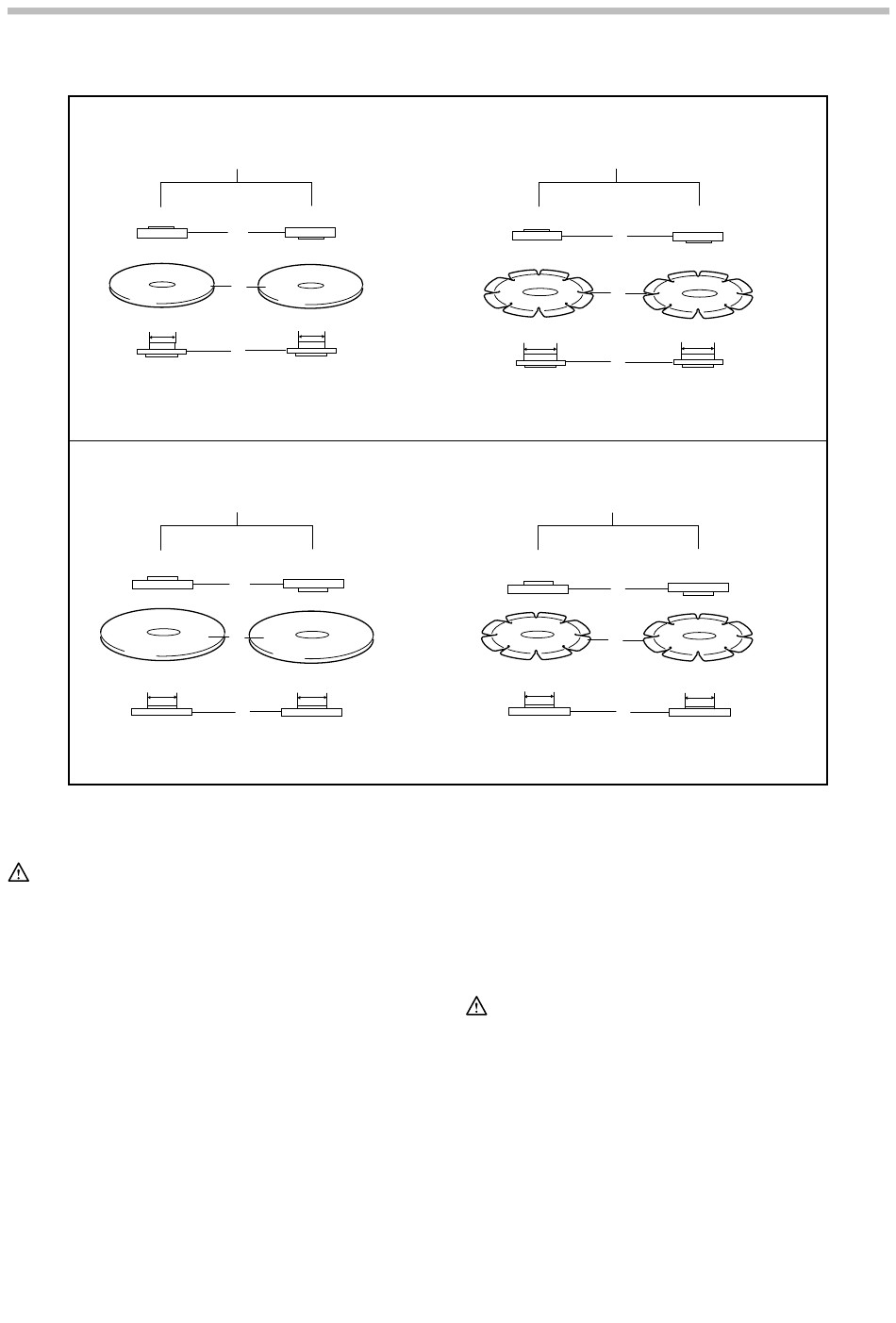

100 mm (4")
Abrasive cut-off wheel
Thickness: Less than 4 mm (5/32")
16 mm (5/8")
1. Lock nut
115 mm (4 - 1/2") / 125 mm (5")
Abrasive cut-off wheel
Thickness: Less than 4 mm (5/32")
22.23 mm (7/8")
1. Lock nut
010848
WARNING:
When using an abrasive cut-off / diamond wheel,
•
be sure to use only the special wheel guard
designed for use with cut-off wheels. (In European
countries, when using a diamond wheel, the
ordinary guard can be used.)
NEVER use cut-off wheel for side grinding.
•
Do not "jam" the wheel or apply excessive pressure.
•
Do not attempt to make an excessive depth of cut.
Overstressing the wheel increases the loading and
susceptibility to twisting or binding of the wheel in
the cut and the possibility of kickback, wheel
breakage and overheating of the motor may occur.
Do not start the cutting operation in the workpiece.
•
Let the wheel reach full speed and carefully enter
into the cut moving the tool forward over the
workpiece surface. The wheel may bind, walk up
or kickback if the power tool is started in the
workpiece.
Thickness: 4 mm (5/32") or more
1
2
16 mm (5/8")
3
2. Abrasive cut-off wheel
Thickness: 4 mm (5/32") or more
1
2
22.23 mm (7/8")
3
2. Abrasive cut-off wheel
Diamond wheel
Thickness: Less than 4 mm (5/32")
20 mm (13/16")
3. Inner flange
4. Diamond wheel
Diamond wheel
Thickness: Less than 4 mm (5/32")
22.23 mm (7/8")
3. Inner flange
4. Diamond wheel
During cutting operations, never change the angle
•
of the wheel. Placing side pressure on the cut-off
wheel (as in grinding) will cause the wheel to crack
and break, causing serious personal injury.
A diamond wheel shall be operated perpendicular
•
to the material being cut.
MAINTENANCE
CAUTION:
Always be sure that the tool is switched off and
•
unplugged before attempting to perform inspection
or maintenance.
Never use gasoline, benzine, thinner, alcohol or the
•
like. Discoloration, deformation or cracks may
result.
10
Thickness: 4 mm (5/32") or more
1
4
20 mm (13/16")
3
Thickness: 4 mm (5/32") or more
1
4
22.23 mm (7/8")
3
