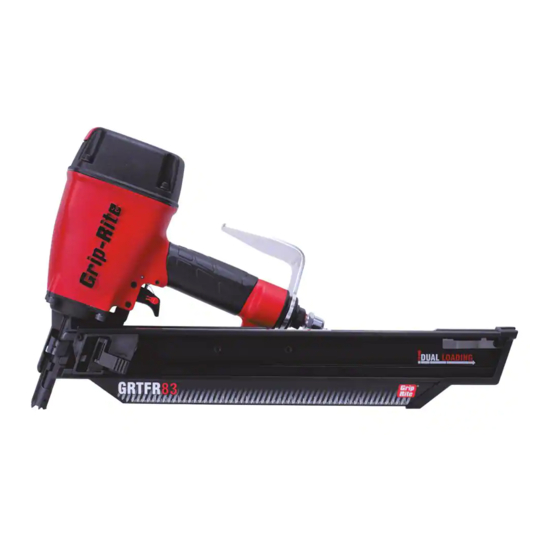

Grip Rite GRTFR83 Operator's Manual And Parts List
  1. Manuals
  2. Brands
  3. Grip Rite Manuals
  4. Nail Gun
  5. GRTFR83
  6. Operator's manual and parts list

Grip Rite GRTFR83 Operator's Manual And Parts List

Short body framing nailers
Hide thumbs Also See for GRTFR83:
Table of Contents

Advertisement

Quick Links

All manuals and user guides at all-guides.com

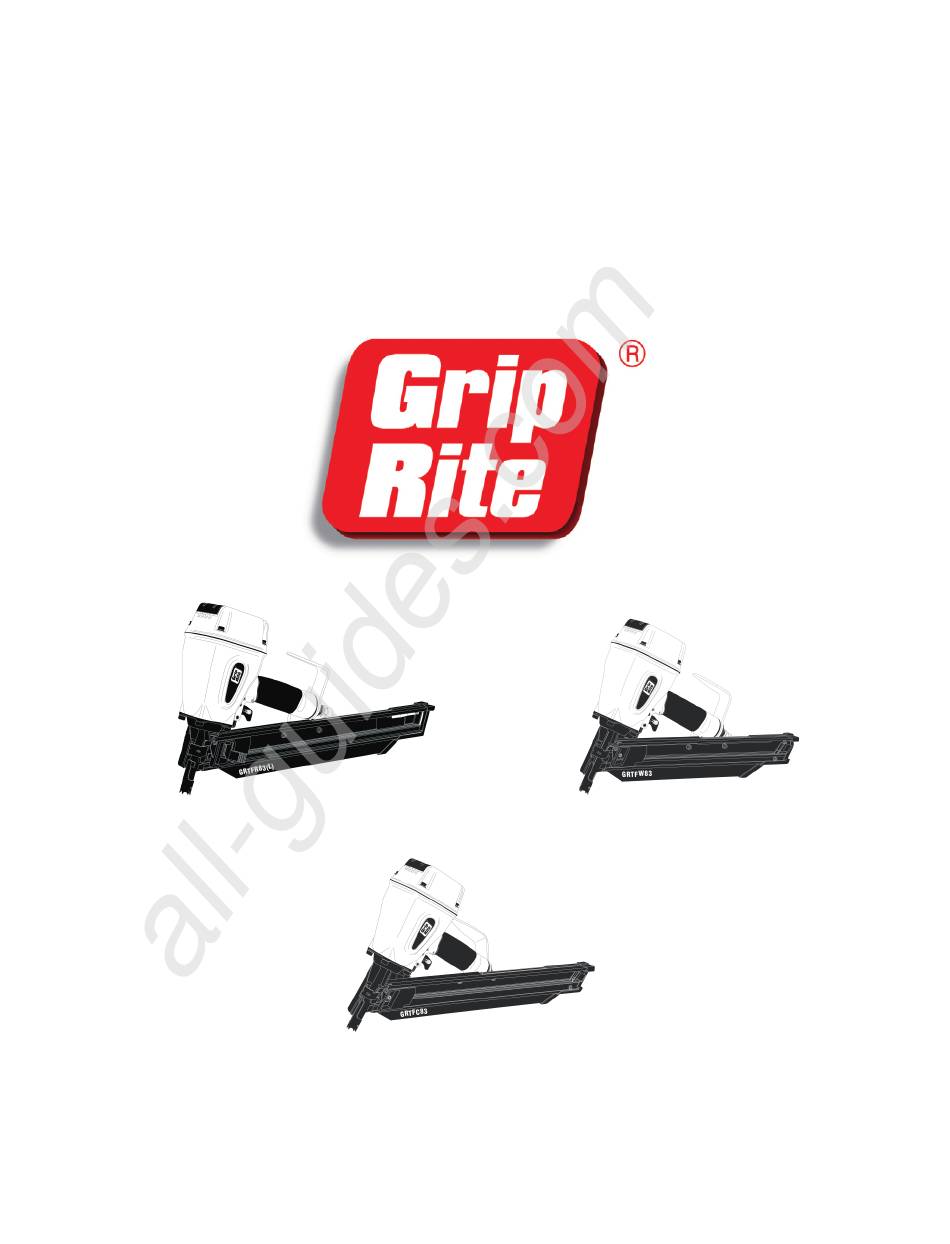

OPERATOR'S MANUAL
AND PARTS LIST
SHORT BODY FRAMING NAILERS
MODELS
GRTFR83, GRTFR83L, GRTFC83 & GRTFW83
GRTFR83(L)
GRTFW83
GRTFC83
www.grip-rite.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRTFR83 and is the answer not in the manual?

Questions and answers

Related Manuals for Grip Rite GRTFR83

Summary of Contents for Grip Rite GRTFR83

  • Page 1 All manuals and user guides at all-guides.com OPERATOR’S MANUAL AND PARTS LIST SHORT BODY FRAMING NAILERS MODELS GRTFR83, GRTFR83L, GRTFC83 & GRTFW83 GRTFR83(L) GRTFW83 GRTFC83 www.grip-rite.com...

  • Page 2: Table Of Contents

    Contact Trip Operation ---------------------------------------------18 MAINTENANCE ---------------------------------------------------------19 Lubrication -------------------------------------------------------------19 Cleaning ---------------------------------------------------------------19 Trigger Check ---------------------------------------------------------19 GRTFR83 PARTS SCHEMATIC & LIST -------------------------20 GRTFR83L PARTS SCHEMATIC & LIST -------------------------22 GRTFC83 PARTS SCHEMATIC & LIST --------------------------24 GRTFW83 PARTS SCHEMATIC & LIST --------------------------26 TROUBLESHOOTING -------------------------------------------------28 TOOL CHECKS...

  • Page 3: Specifications

    A-weighted single-event surface sound pressure level -----------------------------------------------------------------LpA, 1s = 89 dBA VIBRATION CHARACTERISTIC VALUES IN ACCORDANCE WITH ISO 8862-1 Weighted root mean square acceleration ------------------------------= 3.6 m/s For best results, use Grip-Rite® collated fasteners. GRTFR83(L) FASTENER SELECTION CHART Size Shank Bright Galvanized HD Galvanized 2”x .113...

  • Page 4: Grtfc83 Fastener Selection Chart

    All manuals and user guides at all-guides.com SPECIFICATIONS GRTFC83 SPECIFICATIONS MODEL GRTFC83 FRAMING NAILERS FASTENER RANGE 2” - 3 1/4” (50 mm - 83 mm) .113” - .131” dia. (3 - 3.3 mm) FASTENER TYPE 30°-34 Clipped & Offset Round Head Paper Collation °...

  • Page 5: Grtfw83 Fastener Selection Chart

    All manuals and user guides at all-guides.com SPECIFICATIONS GRTFW83 SPECIFICATIONS MODEL GRTFW83 FRAMING NAILERS FASTENER RANGE 2” - 3 1/4” (50 mm - 83 mm) .113” - .131” dia. (3 - 3.3 mm) FASTENER TYPE 28° Wire Weld Framing MAX MAGAZINE CAPACITY 95 Nails MAX AIR PRESSURE 120 psi (8.3 bar)

  • Page 6: Safety

    The safety label must be legible at all times, and must be replaced if it becomes worn or damaged. GRTFR83 USER MUST READ OPERATION MANUAL BEFORE USING TOOL TO REDUCE THE RISK OF INJURY. FAILURE TO FOLLOW THESE OPERATIONS MAY RESULT IN SERIOUS INJURY.
  • Page 7 All manuals and user guides at all-guides.com SAFETY SAFETY INSTRUCTIONS WEAR SAFETY GLASSES Always wear safety glasses with side shields that meet ANSI Z87.1 requirements when operating the tool. Make sure all others in work area wear safety glasses. WEAR HEARING PROTECTION Wear hearing protection to protect your hearing from noise.
  • Page 8 All manuals and user guides at all-guides.com SAFETY SAFETY INSTRUCTIONS DO NOT ATTEMPT TO OPERATE THE TOOL IF THE TOOL’S OPERATING CONTROLS HAVE BEEN MODIFIED OR ARE NOT WORKING PROPERLY. Attempting to use a tool with modifed or malfunctioning trigger or workpiece contact can result in a fastener being driven unintentionally.
  • Page 9 All manuals and user guides at all-guides.com SAFETY SAFETY INSTRUCTIONS KEEP HANDS AND BODY PARTS AWAY FROM AREA BEING FASTENED. Fasteners can defect and turn as they are being driven into the workpiece, and penetrate fngers, hands, and other body parts that may be in the fastening area.

  • Page 10: Tool Parts & Descriptions

    All manuals and user guides at all-guides.com DESCRIPTION GRTFR83(L) TOOL PARTS...
  • Page 11 All manuals and user guides at all-guides.com DESCRIPTION GRTFR83(L) PART DESCRIPTIONS 1. Heavy Duty Cap - Seals tool housing. 2. Cushioned Grip - Cushioned handgrip reduces fatigue and provides comfortable operation. 3. Rotating Rafter Hook - Durable aluminum hook holds tool securely.

  • Page 12: Grtfc83

    All manuals and user guides at all-guides.com DESCRIPTION GRTFC83 TOOL PARTS...
  • Page 13 All manuals and user guides at all-guides.com DESCRIPTION GRTFC83 PART DESCRIPTIONS 1. Heavy Duty Cap - Seals tool housing. 2. Cushioned Grip - Cushioned handgrip reduces fatigue and provides comfortable operation. 3. Rotating Rafter Hook - Durable aluminum hook holds tool securely.

  • Page 14: Grtfw83

    All manuals and user guides at all-guides.com DESCRIPTION GRTFW83 TOOL PARTS...
  • Page 15 All manuals and user guides at all-guides.com DESCRIPTION GRTFW83 PART DESCRIPTIONS 1. Heavy Duty Cap - Seals tool housing. 2. Cushioned Grip - Cushioned handgrip reduces fatigue and provides comfortable operation. 3. Rotating Rafter Hook - Durable aluminum hook holds tool securely.

  • Page 16: Operation

    2a. Insert nail strip into TOP of magazine, with nail points angled forward and down. Slide nail strip forward. REAR LOADING (GRTFR83 & GRTFR83L ONLY) 2b. Insert nail strip into REAR of magazine, with nail points angled forward and down. Slide nail strip forward past stopper (C).

  • Page 17: Adjusting Nail Drive

    All manuals and user guides at all-guides.com OPERATION ADJUSTING NAIL DRIVE 1. Disconnect tool from air supply using quick-connect coupling. 2. Turn adjustment dial (D) backward toward magazine to increase nail drive, or forward toward front of tool to decrease nail drive, as shown by nail symbols on tool.

  • Page 18: Tool Operation

    All manuals and user guides at all-guides.com OPERATION TOOL OPERATION SEQUENTIAL (SINGLE FIRE ) OPERATION To operate this tool in SEQUENTIAL fire mode, move the selector button on the trigger to the rear position. 1. Hold the tool securely using the handgrip. Keep finger off trigger until tool is in position and you are ready to drive a fastener.

  • Page 19: Maintenance

    All manuals and user guides at all-guides.com MAINTENANCE MAINTENANCE Your tool will last longer and perform better if periodic maintenance is performed. Please use the information below to keep your tool operating in top condition. Lubrication Disconnect tool from the air supply and remove all fasteners.

  • Page 20: Grtfr83 Parts Schematic & List

    All manuals and user guides at all-guides.com GRTFR83 PARTS SCHEMATIC...
  • Page 21 All manuals and user guides at all-guides.com GRTFR83 PARTS LIST ITEM DESCRIPTION ITEM P/N DESCRIPTION GRTN2530 Spring Pin GRTN7080 Hex.Soc.Hd.Bolt 46 GRTN2550 Spring Pin GRTN6660 Defector 47 GRTN790 Pin Trigger GRTN7060 Hex.Soc.Hd.Bolt 48 GRTN6960 Guide, Safety Lever 4A GRTN6670 Cap Assembly...

  • Page 22: Grtfr83L Parts Schematic & List

    All manuals and user guides at all-guides.com GRTFR83L PARTS SCHEMATIC...
  • Page 23 All manuals and user guides at all-guides.com GRTFR83L PARTS LIST ITEM P/N DESCRIPTION ITEM DESCRIPTION GRTN7080 Hex.Soc.Hd.Bolt GRTN2530 Spring Pin GRTN6660 Defector 46 GRTN2550 Spring Pin GRTN7060 Hex.Soc.Hd.Bolt 47 GRTN790 Pin Trigger 4A GRTN6670 Cap Assembly 48 GRTN6960 Guide, Safety Lever GRTN6680 Gasket 49 GRTN2210...

  • Page 24: Grtfc83 Parts Schematic & List

    All manuals and user guides at all-guides.com GRTFC83 PARTS SCHEMATIC...
  • Page 25 All manuals and user guides at all-guides.com GRTFC83 PARTS LIST ITEM P/N DESCRIPTION ITEM DESCRIPTION GRTN7080 Hex.Soc.Hd.Bolt GRTN2530 Spring Pin GRTN6660 Defector 46 GRTN2550 Spring Pin GRTN7060 Hex.Soc.Hd.Bolt 47 GRTN790 Pin Trigger 4A GRTN6670 Cap Assembly 48 GRTN6960 Guide, Safety Lever GRTN6680 Gasket, Cap 49 GRTN2210...

  • Page 26: Grtfw83 Parts Schematic & List

    All manuals and user guides at all-guides.com GRTFW83 PARTS SCHEMATIC...
  • Page 27 All manuals and user guides at all-guides.com GRTFW83 PARTS LIST ITEM P/N DESCRIPTION ITEM DESCRIPTION GRTN7080 Hex.Soc.Hd.Bolt GRTN2530 Spring Pin GRTN6660 Defector 46 GRTN2550 Spring Pin GRTN7060 Hex.Soc.Hd.Bolt 47 GRTN790 Pin Trigger 4A GRTN6670 Cap Assembly 48 GRTN6960 Guide, Safety Lever GRTN6680 Gasket, 49 GRTN2210...

  • Page 28: Troubleshooting

    All manuals and user guides at all-guides.com TROUBLESHOOTING TOOL TROUBLESHOOTING Your pneumatic fastening tool has been designed for long life and trouble-free operation. However, if operating problems arise, please use the troubleshooting information below to determine how to remedy the problem.

  • Page 29: Tool Checks

    All manuals and user guides at all-guides.com TROUBLESHOOTING FASTENER DRIVING PROBLEMS Check magazine for jammed fastener. Clear Tool operates, but no jam and reload magazine. Check nail strip for fastener is driven. smooth feeding in magazine. Tool won’t operate - Remove jammed fastener.

  • Page 30: Warranty

    All manuals and user guides at all-guides.com WARRANTY PNEUMATIC TOOL/COMPRESSOR WARRANTY Pneumatic nailers, staplers & compressors marketed under the GRIP-RITE brand are warranted to be free from defects in ® workmanship & materials (except rubber o-rings, bumpers, seals, driver blades, dipsticks, & air filters) for a period of 3 years for tools and one year for compressors from the date of original purchase.
  • Page 31 All manuals and user guides at all-guides.com WARRANTY PNEUMATIC TOOL/COMPRESSOR SERVICE INFORMATION Should any mechanical problems develop during the life of your equipment the following options are available for service and parts: • Call (800)676-7777 where you will be routed to the nearest GRIP-RITE®...
  • Page 32 All manuals and user guides at all-guides.com USE GENUINE GRIP-RITE® FASTENERS FOR BEST PERFORMANCE www.grip-rite.com GRTF83MAN 9/10...
