Summary of Contents for Wuhan Guide NiiMbot D110

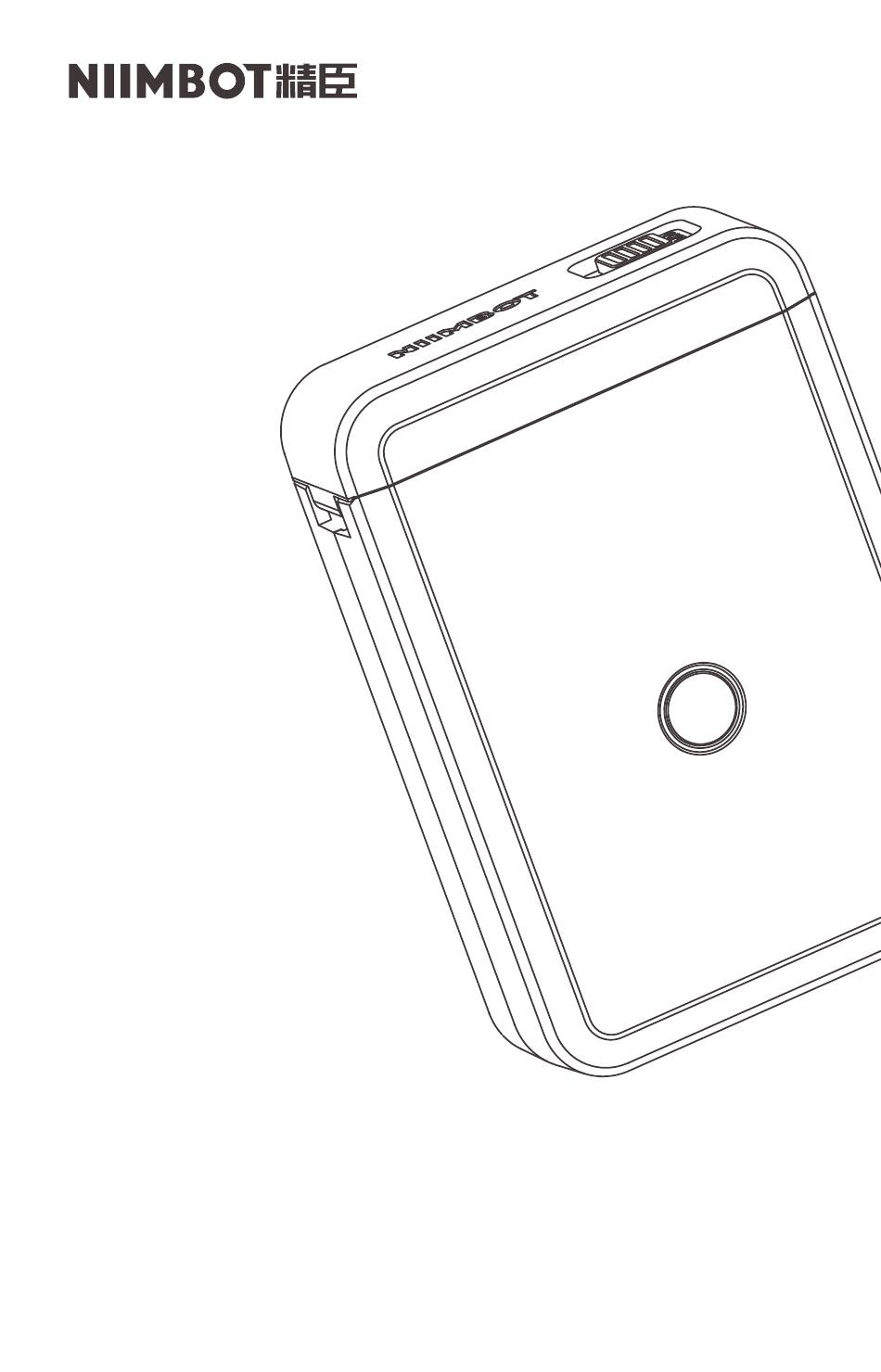

- Page 1 D110 Operating Instructions...
- Page 2 A Letter to our Customers Dear customers Thank you for choosing NiiMbot. NiiMbot is committed to providing the most intelligent label solution and the best customer service. Please feel free to contact us if you have any questions or suggestions during the use of our products. We pay great importance to user experience, and we are willing to hear our customers’...
- Page 3 Terms and Conditions Agreement is the required and legal agreement of the application market. For unregistered users who agree with the agreement will not be collected the information. The permission to location access is for a faster and more stable Bluetooth connection. Because of different network service providers in different countries, when accessing the location, the app can detect the device nearby more rapidly.
- Page 4 Basic Parametrs Basic Usage Indicator Light Instructions Quickstart Guide Q&A Cleaning Procedure After-sales Service Notes...
- Page 5 03 · 04 Basic Parametrs Model D110 Color White Material ABS+PC Printing method Thermal Resolution 203dpi Printing speed 15mm/s~20mm/s Label width range 15mm Frequency 2402-2480MHz Power 0dbm Connection Bluetooth 5.0 Barcode printing Supports barcodes and QR codes Working temperature -10℃ — 50℃ Battery Type 1200mAh Lithium battery Interface...
- Page 6 Basic Usage Slide left to open the lid 1.Lid opening method 90° 2.Opening angle...
- Page 7 Detector Paper bin 3.Consumable installation...
- Page 8 Make sure 0.1-0.2 inch of label paper left outside. Make the label sticker side down Be sure to slide to t he rightmost 4.Correct closure...
- Page 9 Power Button Indicator light 5.Press the power button about 3-5 seconds to start printer Connect the printer with APP to set consumable specifications. Edit the print contents and press OK to print.
- Page 10 Indicator Light Instructions Indicator Status Instruction light Blue Strobe slowly Bluetooth not connected During printing and charging Blue Strobe quickly Bluetooth connected and battery Blue Normally on fully charged Bluetooth not connected and low Strobe slowly battery Printing and charging with low Strobe quickly battery Normally on...
- Page 11 Quickstart Guide App Download 1. Search NIIMBOT in Google App Store or App Store to download. 2. NIIMBOT APP is compatible with Android, Microsoft and iOS systems. About new device: There is usually some power left for customers to boot up the new Niimbot label maker.
- Page 12 2. Click on the “unconnected” button in the top right corner of the app, then choose the correct device (e.g. D110 series) and click on “search”. Your device will be found. Click on the [ unconnected ] button 9:41 AM 100% Search device...
- Page 13 3. Click on “pair”or “connect”, you will successfully connect to the Bluetooth. Note: If a PIN code is needed, please enter 1234 or 0000. Label loading 1. Slide the button on the cover of the device to open the cover. 2.
- Page 14 2. Close the cover and make sure some label paper is left outside. Note: 1. If the label is laid reversely, blank pages will continue to be printed. 2.No label paper left outside will cause the abnormal paper feeding. The device will not response or response without paper feeding.
- Page 15 Printing Steps 1. After Bluetooth connection and correct paper loading, the app automatically identifies the label template and displays it. Click on the recognized template and go into the editing page. 2. Click on 【Text】 at the lower part of the page, the text box pops up.
- Page 16 Note: 1. D110 label maker applies direct thermal printing technology and uses chemically-treated paper that darkens when heated by a thermal print head. At present, the only black printout is supported. 2.There is a number of materials in the app, including but not limited to symbols, figures, simple images, QR codes, bar codes, intelligent Identification function and so on, which can help to create personalized labels.
- Page 17 Question: Is there one roll of label paper offered for free? What style is it? Answer: NiiMbot D110 is sold with a roll of white label paper inside the machine. The label is 12 *40 mm. Question: Why can not the label maker be fully charged when...
- Page 18 Question: Will the machine be automatic shut down? Answer: After being disconnected the Bluetooth or the app is not used for 15 minutes, the machine will automatically shut down, saving power and protecting the battery. Question: Why does the machine work normally but keep printing blank paper? Answer: It may be because the label paper is laid reversely, please keep the label sticker side down.
- Page 19 Question: Why does the machine keep feeding paper? Answer: （1） It may be because there is label or residues sticking on the detectors on the cover or in the paper bin. （2） It may be because there is label or residues sticking on the print head.
- Page 20 （2） There are residues sticking on the detectors, resulting in failed label detection. Please remove the residues. （3） It may be because of temporary failure of chip detection. Please contact customer service and provide the label code. Our Tech Support will fix the problem for you in 10 minutes. Question: Why is the Bluetooth suddenly disconnected and fail to be connected for many times? Answer: It may be because the Bluetooth system crashes.
- Page 21 Answer: D110 supports batch printing. The APP currently supports up to 999 labels in one batch. But considering the actual number of label paper in different sizes, around 300 label stickers can be printed in one batch at most. Question: In what situation does the error “cover is open” pop out? Answer: There are possibilities as follows: （1）...
- Page 22 Question: What is the reason for the sudden stopping of printing. Answer: In order to ensure the safety of the label maker, multiple protection modes have been programmed. In the event of “lack of paper” , “cover open” , “data error” , “ overheat temperature”...
- Page 23 Cleaning Procedure Turn off the label maker; Wait the print head to cool off completely after printing. Open the cover to find print head; Clean the dust or residues with alcohol cotton ball (drained); Wait 5-10 minutes to make sure the alcohol has been volatilized before closing the cover.
- Page 24 After-sales Service Customers enjoy free return and exchange service within 30 days from the date of receipt of the product. Customers enjoy one replacement service within one year from the date of receipt of the product. Customers enjoy an additional two-year warranty service from the date of receipt of the product.
- Page 25 Notes Safely keep this product and accessories out of the reach of children to prevent danger. Do not open the paper bin when the machine is printing. Make sure that the paper bin is clean before using. If there is any residue inside, it may cause damage to the print head while printing.
- Page 26 In the event of the damaged power cable, please do not use it as this may result in electric shock, fire or damage to the power adapter. After printing, the print head may be still hot. Do not touch it to avoid bums.
- Page 27 When unplugging the printer, grab the power adapter. Pulling the power cable directly will damage the cable. Do not use the printer where there are Inflammable substances like gas stations and fuel warehouses. If there is any problem about usage, please contact the dealers or NiiMbot after-sales service.
- Page 28 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user?ÿs authority to operate the equipment.
