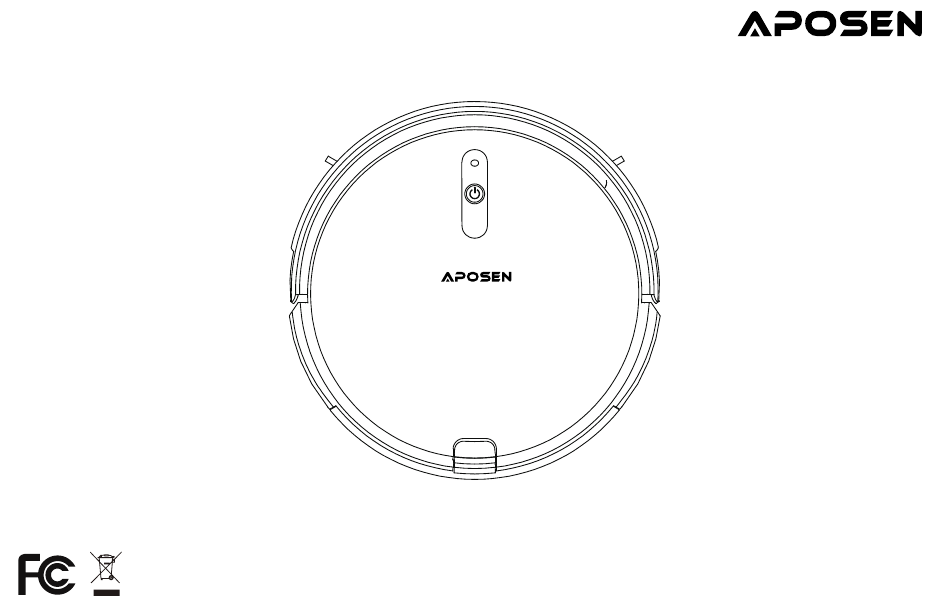

- Page 1 Instruction Manual ROBOT VACUUM CLEANER Model:A450...
-
Page 3: Table Of Contents
Instruction Manual 1. Safety Regulations 2. Product Instruction 3. Parameter 4. Attention 5. Maintenance 6. Lighting Effects And Alarm Tips 7. FAQ 8. Customer Service... -
Page 5: Safety Regulations
1. Safety Regulations Please read the manual carefully before using the product and keep this instruction for reference. Products cannot be used by children under 8 years of age or people with mental disabilities. If you need to use it, please do so under the supervision of the guardian. - Page 6 -cigarettes, matches, ash, or other items that may cause a fire. Do not take any product that is burning, such as Do not place items at the suction outlet. Do not use products when suction is blocked. Clean dust, cotton wool, hair, etc. at the suction port to ensure smooth air circulation at the suction port. Use the power cord carefully to avoid damage.
-
Page 7: Product Instruction
2. Product Instruction 2.1. What’s in the box 1. Robot Vacuum 3. Remote Control 5. Side Brushes X 4 7. Clean Brush 2. Charging Base 4. Power Adapter 6. HEPA X 2 8. Instruction Manual Instruction Manual Vacuuming Robot Model:A450... - Page 8 2.2. Assembly Name Master Bumper Switch Panel DC charging port Dust Box Top View Lower Vision Sensor Universal Wheel Charging Pole Piece Right Brush Left Brush Drive Wheels Roller Brush Assembly Bottom View...
- Page 9 Dust Box Infrared Buffer Bumper Switch Dust box High Efficiency Filter (HEPA) Dust Box Button...
- Page 10 Changing Stand Assembly Cleaning Tools Indicator Light Power Adapter Charging Pole Piece Power Adapter Slots Remote Control Power Return home Forward Right Left Backward Stop/Start Spot cleaning Turbo Wall following...
-
Page 11: Parameter
3. Parameter Product Model A450 Input 100-240V/50-60Hz Power Battery Capacity Li-ion 2500mAh Dust Box Capacity 0.6L Cleaning Time 100 mins Charging Time DC 3V(AAA) Battery Remote Control Method Infrared Emitting and Receiving Distance ≤5M Input 100-240V/50-60Hz Output 19V / 0.6A Install 2 AAA batteries before using the remote control for the first time. -
Page 12: Attention
4.1 Considerations Please refer to the following guidelines to check the cleaning area before the cleaner works. 1. Power lines and other 2. Please roll the debris scattered on the carpet tassels or ground may trip up work on short-hair product must be rugs. - Page 13 4.2 Rapid Operation 4.2.1 Install The Side Brushes Please install the right brush into the right bottom mounting port of the machine, the left brush into the left bottom mounting port of the machine, and ensure that the two side brushes are in place.
- Page 14 4.2.2 Charging Operation 1. Connect the adapter to the charging stand. Place the charging stand flat against the wall. Do not place objects in the left and right 1M and the front 2M,and do not have objects with strong reflection surfaces such as mirrors. 2.
- Page 15 3.Master Charge Place the master in the charging stand and pay attention to the charging pole piece. Turn on the power switch, the robot will enter standby mode. Red light flashes indicates that the battery need to be charged. Blue light breathing light flashes indicate charging. When the blue light is off means charging is completed.
- Page 16 4.2.4 Mode Selection In order to adapt to different ground conditions and achieve deep cleaning, this product has a variety of cleaning modes, which can be selected by remote control as needed. The remote control can switch any mode directly. Before starting the mode, make sure that the outer ring of the key is blue and the master is in the state of being awakened.
- Page 17 Edge Mode It is suitable for cleaning at the corners of the room. The master is cleaned around the periphery of a fixed object (such as a wall) and cleaned back to the charging stand. Return Charging Mode During the cleaning process, the master can sense that its power is insufficient, and automatically find the charging stand for charging.
-
Page 18: Maintenance
4.2.5 Roller Brush Assembly and Cleaning Remove the roller brush brush cover plate, remove the roller brush, cut off the hair wound on it and then use the cleaning brush to clean it. Set roller brush assembly: take out sucking assembly first, set the roller brush, cover the board and press it to lock. 5. - Page 19 Please let these parts dry naturally for more than 24 hours.
- Page 20 5.2 Side Brushes Cleaning Side Brushes Pull out the side brush and wipe it with a clean rag. 5.3 Other Assembly Cleaning the universal wheel to reduce hair entangle. Clear down the sensor to ensure the sensitivity of the sensor. To clean the charging pole pieces, use a dry rag to clean the charging poles on the bottom of the master or the charging stand.
-
Page 21: Lighting Effects And Alarm Tips
6. Lighting Effects And Alarm Tips 6.1 Alarm Tips When the host fails, the red light of the outer ring of the host key flashes, and the buzzer sounds of different lengths will be emitted Refer to the following table to check the cause of the fault: Cleaner Status AUTO Display Status Solution... -
Page 22: Faq
7. FAQ Please install the right brush into the right bottom mounting port of the machine, the left brush into the left bottom mounting port of the machine, and ensure that the two side brushes are in place. Q : What should I do when it can not work on the carpet ? A : We don’t suggest you make it clean the carpet. -
Page 23: Customer Service
1. The repair or replacement of your APOSEN appliance if your APOSEN appliance is found to be defective due to faulty materials, workmanship or function within 1 years of purchase or delivery (if any part is no longer available or out of manufacture, APOSEN will replace it with a functional replacement part). - Page 24 WARRANTY SERVICE 1. If you have a query about your APOSEN appliance, please contact the APOSEN customer service email : usa@iaposen.com 2. Please inform us your model name/number, purchase date, order number, machine problem and your requirement. 3. Your model number can be found on rating plate. For information on your rating plate see the inside front cover.
