ICP CON ET-7200 Quick Start Manual

Hide thumbs

Congratulations!

This Quick Start will provide information needed to get started with ET-7200/PET-7200.

Please also consult the User Manual for detailed information on the setup and use of

ET-7200/PET-7200.

What's In the Box?

In addition to this guide, the package includes the following items:

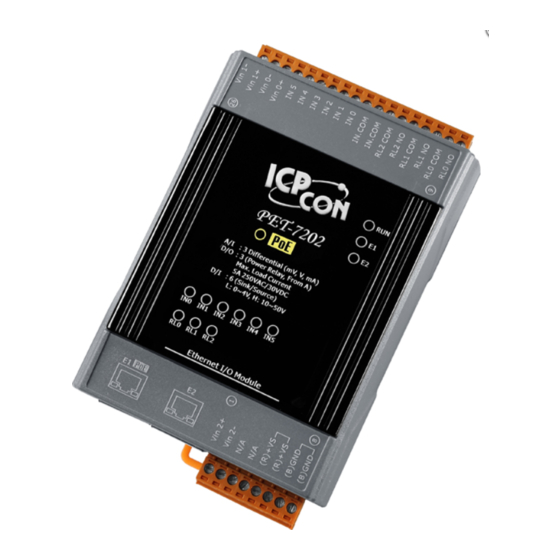

ET-7200/PET-7200 Module

Technical Support

 ET-7200/PET-7200 User Manual

CD:\NAPDOS\NAPDOS\ET7200\Document\

http://ftp.icpdas.com/pub/cd/6000cd/napdos/et7200/document/

 ET-7200/PET-7200 Website

http://www.icpdas.com/products/Remote_IO/et-7000/et-7000_introduction.htm

 ICP DAS Website

http://www.icpdas.com/

Quick Start for ET‐7200/PET‐7200

Software Utility CD

January 2014, Version 1.0.0

Table of Contents

Need help?

Do you have a question about the ET-7200 and is the answer not in the manual?

Questions and answers

Summary of Contents for ICP CON ET-7200

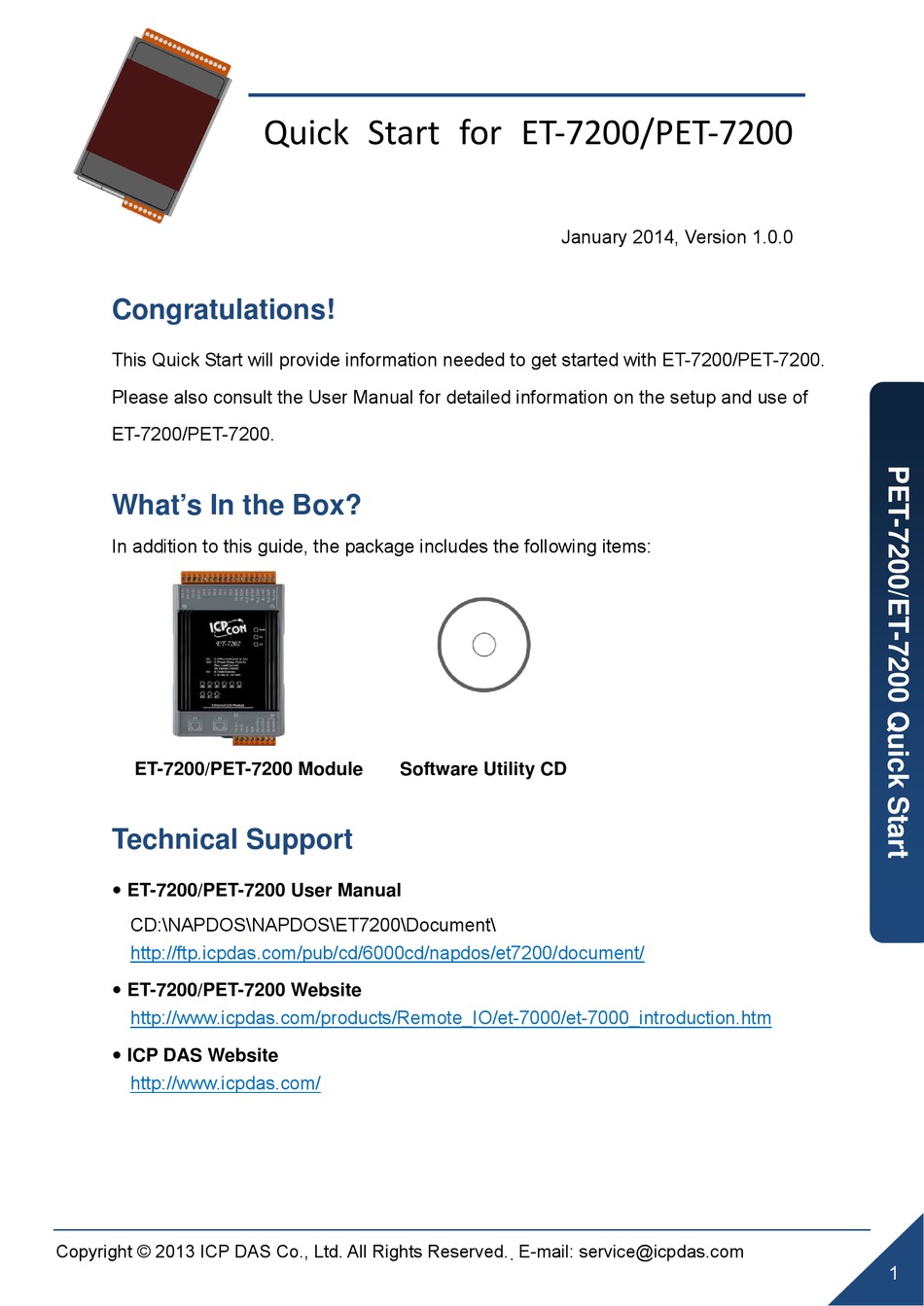

Page 1 Quick Start for ET‐7200/PET‐7200 January 2014, Version 1.0.0 Congratulations! This Quick Start will provide information needed to get started with ET-7200/PET-7200. Please also consult the User Manual for detailed information on the setup and use of ET-7200/PET-7200. What’s In the Box?
Page 2 ET-7200 functions. ---------------------------------------------------------------------------------- Connecting to Network, PC and Power The ET-7200/PET-7200 is equipped with an RJ-45 Ethernet port for connection to an Ethernet hub/switch and PC Non-PoE Copyright © 2013 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
Page 3 MiniOS7 Utility on the desktop. ---------------------------------------------------------------------------------- Using MiniOS7 Utility to Assign a New IP The ET-7200/PET-7200 are Ethernet devices, which comes with a default IP address, therefore, you must first assign a new IP address to the ET-7200/PET-7200 Item Default IP Address 192.168.255.1...
Page 4 Step 1：Run the MiniOS7 Utility Double-click the MiniOS7 Utility shortcut on your desktop. Step 2：Press“F12”or choose“Search”from the“Connection”menu After pressing F12 or choosing Search from Connection menu, the MiniOS7 Scan dialog will appear, that will display a list of all MiniOS7 modules on your network. See the status tip, waiting for the search to be done.
Page 5 Step 3：Choose the module name and then choose“IP setting”from the toolbar Step 4：Assign a new IP address and then choose “Set” button Step 5：Choose “Yes” button Press the Yes button in the Confirm dialog box to exit the procedure. Copyright © 2013 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
Page 6 Then reboot ET-7200/PET-7200. ： Step 2 Open a browser Please use a standard internet browser to view the ET-7200/PET-7200 webpage, such as Mozilla Firefox or Internet Explorer…etc. Copyright © 2013 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
Page 7 ： Step 3 Type the URL address of ET-7200/PET-7200 If you haven’t changed the default IP address of the ET-7200/PET-7200, please refer to “4. Using MiniOS7 Utility to Assign a New IP” to configure it. ： Step 4 Fill out the User name and Password...
Page 8 Step 6：Check out the data acquisition services Under the Main Menu, expand the Web HMI, and then select the Web HMI option to check the values of the data acquisition. Copyright © 2013 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
