Summary of Contents for Ideal Heating HALO

  • Page 3 This product The Ideal Halo Heat & System RF is a wireless must be installed to all applicable standards. PRT that is paired with the Halo Smart Interface Always isolate the mains supply before installed alongside the boiler.

  • Page 4: Kit Contents

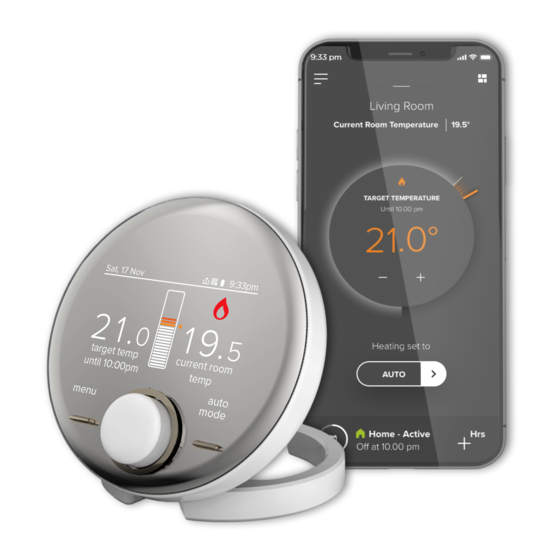

    A. KIT CONTENTS 3. Trim plate 1. Halo Combi PRT display unit 2. PRT rear housing 5. Smart wiring centre 4. Desk stand 5. Smart Wiring Centre 6. Smart Interface 9. 4 AA Batteries 8. Install/user guides, wiring diagrams 7. Smart Interface bracket and zone valve labels 10.

  • Page 5: Location Guidelines

    B. LOCATION GUIDELINES The Halo Heat & System uses wireless Zigbee communication from the Smart Interface to the Smart Wiring Centre and Halo 1.2-1.5m PRT up to a maximum distance of 30 meters. Occasionally house constructions and materials can reduce this communication...

  • Page 6: System Overview

    C. SYSTEM OVERVIEW Smart Interface This is a simplified diagram of how the Halo units, Smart Wiring Centre and Smart Pipework Interface communicate. Some wiring and pipework has been omitted for clarity. RF Connection Wiring TOP TIP: For a robust signal between units, where possible, ensure that the line of communication between the Smart Interface and other units is not through any stone or metallic object.
  • Page 7 If there are any concerns regarding signal strength and location of the wall mounted PRT it is advisable to pair the control and check the signal strength before fixing to the wall. 1. The Halo can be installed with or without the provided 2. If no trim plate is required, use the rear housing of the trim plate.
  • Page 8 DESK MOUNTING THE HALO 1. The Halo has an integrated rear housing and desk stand. 2. Insert the 4 AA batteries provided into the front housing of the Halo. Pay close attention that the orientation of the batteries is as indicated in the housing.
  • Page 9 E. INSTALLING THE SMART WIRING CENTRE The Smart Wiring Centre controls the operation of the zone valves for the central heating system. The Smart Wiring Centre communicates wirelessly to the Smart Interface via the Zigbee RF protocol. The Smart Wiring Centre must be mounted to a fixed surface before installation.
  • Page 10 F. WIRING THE SMART INTERFACE The Smart Wiring Centre must be installed by a competent person with the appropriate safety qualifications. All wiring must be adequately sheathed and insulated. Isolate any 230V ac mains supply to the Smart Wiring Centre and any other linked components before commencing works.
  • Page 11 G. INSTALLATION OF THE SMART INTERFACE BRACKET AND THE SMART INTERFACE To install the Smart Interface into a new boiler follow the steps below. For further details on the compatibility of older boilers please visit idealheating.com. The Smart Interface Bracket can be mounted straight to the wall or onto an existing single gang wall box. 1.
  • Page 12 G. INSTALLATION OF THE SMART INTERFACE BRACKET AND THE SMART INTERFACE (CONT.) Remove rear knock out Remove bottom knock out 4a. Rear cable mounting; From the fuse spur wire the 4b. Surface cable mounting; From the fuse spur wire Live, Neutral and Earth connections into the left the Live, Neutral and Earth into the left hand side hand side connections in the Smart Interface Bracket connections in the Smart Interface Bracket marked...
  • Page 13 G. INSTALLATION OF THE SMART INTERFACE BRACKET AND THE SMART INTERFACE (CONT.) Mains Weather OpenTherm compensation IN L IN L Smart Interface 230V connections Low voltage connections 7. Carefully push the Smart Interface into the bracket. 8. Locate the wiring terminal within the boiler control box (230V connections are on the left and low voltage on the right).
  • Page 14 H. PAIRING OF THE SMART INTERFACE TO THE SMART WIRING CENTRE To pair the Smart Wiring Centre to the Halo Smart Interface follow the steps below. 1. Turn the power back on to the boiler and 2a. The Smart Wiring Centre will power up and Smart Wiring Centre.
  • Page 15 3. Check the Smart Interface connection to the boiler by 4. Press and hold the Pair button on the Smart interface pressing the override button. The override LED should be until the Zigbee LED flashes red.  green and the boiler will fire. Press the override button again to switch off the boiler, the override LED should now go out* 5.
  • Page 16 I. PAIRING OF THE HALO The Halo PRT will now need to be paired with the Smart Interface installed by the boiler. Ensure the Smart Interface is still in pairing mode with the Zigbee LED flashing red. 1. When the batteries are inserted, the Halo PRT will power up automatically.

  • Page 17: Advanced Settings

    Service phone number Ideal Heating Opportunity to input Installer contact number for service reminders. number HALO FEATURES AND CONFIGURATION To enter the settings menu press the menu button. Menu options Action Holiday mode allows the device to be switched off for a predefined period of time then Holiday automatically returns to the pre-programmed heating schedule.
  • Page 18 Green flashing - Failsafe active* opening and closing of the zone valves. No illumination - Override OFF* *Override and Failsafe only active when communication is lost between the Halo PRT and Smart Interface. See Halo User Guide for more information.

  • Page 19: Commissioning Checklist

    COMMISSIONING CHECKLIST When the Halo is set up use this commissioning checklist to check and complete the install. Confirmed Description Zigbee LED on Smart Interface flashes green Use the “Identify” function to confirm successful pairing has taken place. Short press on the Pair Halo home screen flashes to indicate button on the Smart Interface.
  • Page 20 Full battery level indication on Halo home screen. Zigbee network icon is present on the Halo home screen. Cloud network icon is present on Halo home screen. *Halo Combi Wi-Fi only Time and date correct. Zone valves labelled using provided labels.

  • Page 21: Troubleshooting

    Smart Interface closer to the PRT. Deleting Halo from the On the Halo press the dial and the right hand key together for 15 seconds, this will delete the Halo Zigbee Network from the Zigbee network and factory reset the device.
  • Page 22 NOTES _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
  • Page 24 T: 01482 498660 following internet address idealheating.com E: enquiries@idealheating.com UIN: 227164 A01 RF frequency: 2405 – 2480MHz Max. RF output power: 10dBm Ideal Heating is a trading name of Ideal Boilers and associated Group Companies welcome to our ideology idealheating.com |...
