Alula RE106 Install Manual

Resolution Compatibles

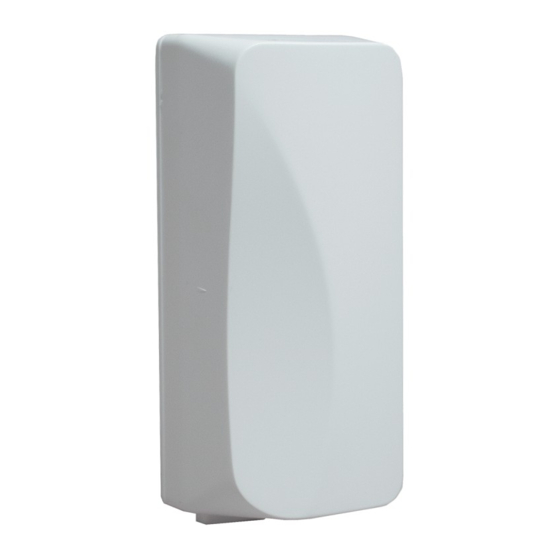

Tilt Sensor
is a full-featured security transmitter typically
used to sense the tilt of overhead garage doors and
windows. It will alarm when the sensor is tilted more
than 45 degrees.

Features

• Industry-leading wireless range and battery life
• Secure encrypted wireless transmissions
• 5-year warranty

Enroll

by placing the panel into wireless enrollment
mode and then sending an enrollment signal from
the sensor.
Options for sending an Enrollment Signal
• Remove the battery tab and cover to
trip tamper.
Install
by mounting the sensor to the inside of
a door or window using the mounting screw
locations. For garage door installations, the
sensor should be mounted to the top panel of the
overhead door.

Tilt Detection

exceeds a 45 degree angle. If the
sensor rotates further than 135
degrees, it is likely to remain in a
non-alarm state. For best results,
the sensor should rotate within 90
degrees to ensure an alarm state
occurs.
RE106 Tilt Sensor
Interlogix
occurs when the sensor
Use the panel installation guide to verify proper system setup.
Compatible
®

Mounting

Screw
Holes
I
Cover-Securing
Screw Hole
