Summary of Contents for HID OMNIKEY 2061
- Page 1 15370 Barranca Parkway Irvine, CA 92618-2215 ® OMNIKEY 2061 Bluetooth Reader USER MANUAL © 2010 HID Global Corporation. All rights reserved. Firmware Version 1.30 March 23, 2010 2061-905, Rev A.1...
-
Page 2: Table Of Contents
+44 (0) 1440 711 822 fax: +44 (0) 1440 714 840 HID GLOBAL, HID, the HID logo, OMNIKEY are the trademarks or registered trademarks of HID Global Corporation, or its licensors, in the U.S. and other countries. Con t e n t s Read Me First............................ -
Page 3: Overview
2 Belt Clips 1 Safety and Product Information Manual Contact the dealer if your OMNIKEY 2061 Bluetooth reader package is incomplete. 1 .2 Syst e m Re qu ir e m e n t s Operating System Windows® Vista® - 32-bit (x86) Windows XP®... -
Page 4: Operation
Ba t t e r y Ch a r gin g Ensure the battery is fully charged before use. For a discharged battery, it takes approximately four hours to charge. To charge the battery, connect the OMNIKEY 2061 Bluetooth reader to a computer through the enclosed USB cable. 3 .3 Re a de r Se t u p Define a common name for the reader before installation. - Page 5 7. From the Installation dialog, click Start. Clicking Start pairs the reader and installs the Bluetooth device driver. 8. If successful, the Bluetooth LED displays constant illumination. March 24, 2010 Page 5 of 17 © 2010 HID Global Corporation. All rights reserved.
-
Page 6: Bluetooth Configuration Software
If simultaneously selecting a Profile and Reader the current Parameter Set always contains the parameters from the Profile File. Therefore, it is possible to transfer the configuration parameters from the current Parameter Set to the currently connected OMNIKEY 2061 Bluetooth reader. From Installation Properties and Energy Saving Parameters, click Update Reader. - Page 7 User Manual, Firmware V1.27 4 .2 Re a de r M a n a ge m e n t Using the Reader menu you can install, select and configure a USB connected OMNIKEY 2061 Bluetooth reader. 4 .2 .1 Re a de r Se le ct ion With the Select Reader dialog, select USB connected OMNIKEY 2061 Bluetooth reader.
- Page 8 4 .2 .2 Re a de r I nst a lla t ion Install the OMNIKEY 2061 Bluetooth reader with the Installation dialog. Note: Connect the reader using the USB cable and switch on. Clicking Start pairs the reader and installs the Bluetooth device driver. After finishing the installation process the reader is ready to use.
- Page 9 Bluetooth Configuration Software. 4 .2 .6 Se t Re a de r PI N Set Reader PIN sets the OMNIKEY 2061 Bluetooth reader PIN. The PIN is required for pairing your reader manually. March 24, 2010 Page 9 of 17 ©...
- Page 10 Ba t t e r y St a t u s The Battery Status indicates the current battery status. 100% means the battery is fully charged. Page 10 of 17 March 24, 2010 © 2010 HID Global Corporation. All rights reserved.
- Page 11 The Configuration Parameters dialog displays information about the configuration environment. OMNIKEY Drivers displays the installed Bluetooth driver and the version. Detected Bluetooth Stack Provider displays the active Bluetooth stack and the version. March 24, 2010 Page 11 of 17 © 2010 HID Global Corporation. All rights reserved.

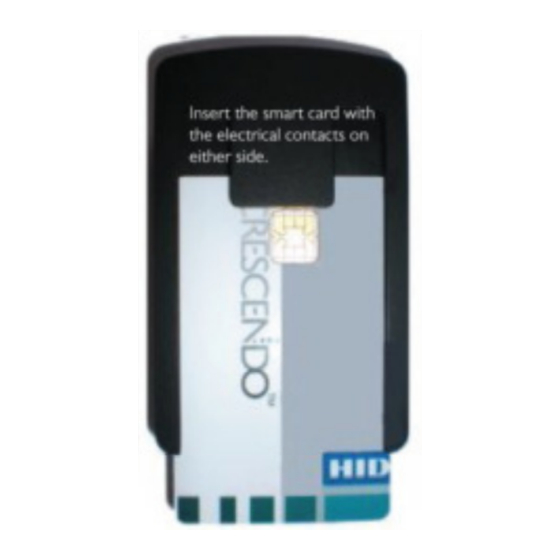

- Page 12 For a functional test, insert a working smart card into the reader. As a result, an ATR string and other card details display. Download the latest version of the OMNIKEY Diagnostic Tool from www.hidglobal.com/omnikey. Page 12 of 17 March 24, 2010 © 2010 HID Global Corporation. All rights reserved.
-
Page 13: Conditions
Bluetooth software and hardware. In addition, there is a maximum number of Virtual COM Ports supported by the host’s operating system. Install the OMNIKEY 2061 Bluetooth reader with no more than eight hosts. Installing the reader on a ninth host, removes the first reader instance from the host reader list. - Page 14 Bluetooth radio, it is unpredictable which readers are connected. When an OMNIKEY 2061 Bluetooth reader is installed on more than one host and the Bluetooth field of this host overlaps, it is unpredictable to which of the hosts the device will connect.
-
Page 15: Manual Installation
2061-905_ A.1 User Manual, Firmware V1.27 M a n u a l I n st a lla t ion Install an OMNIKEY 2061 Bluetooth reader manually without using the Configuration Tool (see section 0 March 24, 2010 Page 15 of 17... - Page 16 6 .1 M icr osoft Blu e t oot h St a ck 1. Power on the OMNIKEY 2061 Bluetooth reader. The green LED is illuminated. If not, verify the batteries are charged. 2. Pair the reader with the host: a.
- Page 17 User Manual, Firmware V1.27 6 .2 Tosh iba Blu e t oot h St a ck 1. Power on the OMNIKEY 2061 Bluetooth reader. The green LED is illuminated. If not verify the batteries are charged. 2. Pair the reader with the host: a.
