Delacora J004-160-001 Assembly Instructions Manual

ITEM NO. / ARTICLE NO. / ARTICULO NO : J004-160-001/ J004-160-010
Page 1 of 10

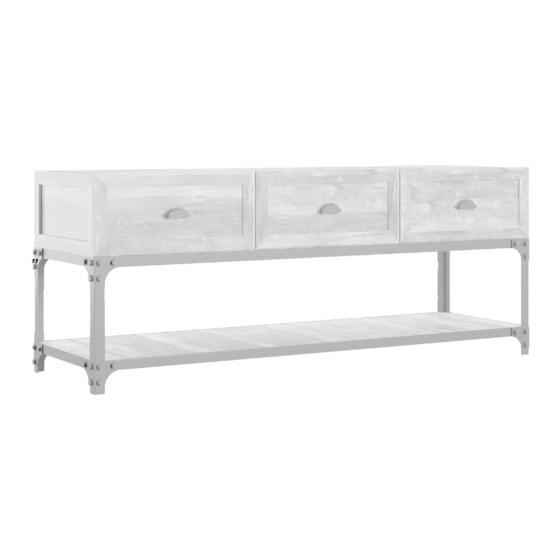

TV STAND / MEUBIE TV / MESA PARA TV
A. RJ004-160-001/ 010 - DRAW - Drawer A
(Qty. 1)
D. M10x12mm Hex Bolt
Boulon
Perno
(Qty. 12+1 extra)
Tools required: Open wrench (included) and screwdriver (not included).
Herramientas necesarias: Llave inglesa (incluido) y un destornillador (no incluido).
Residential Use Only
B. RJ004-160-001/ 010 -LEG Frame - Leg B
Tiroir A
Cadre de patte B
(Qty. 2)
E. M4x12mm Screw
Vis
Tornillos
(Qty. 4+1 extra)
For further assembly information, please go to www.myfurnitureinstructions.com
C. RJ004-160-001/ 010-SHEL - Bottom Shelf C
Tablette du bas C
Estante de abajo C
(Qty. 1)
F. Open Wrench G. Furniture Tipping Restraint
Llave inglesa antibasculement
Lista del kit de materiales antivuelco
(Qty. 1)
(Qty. 1)
