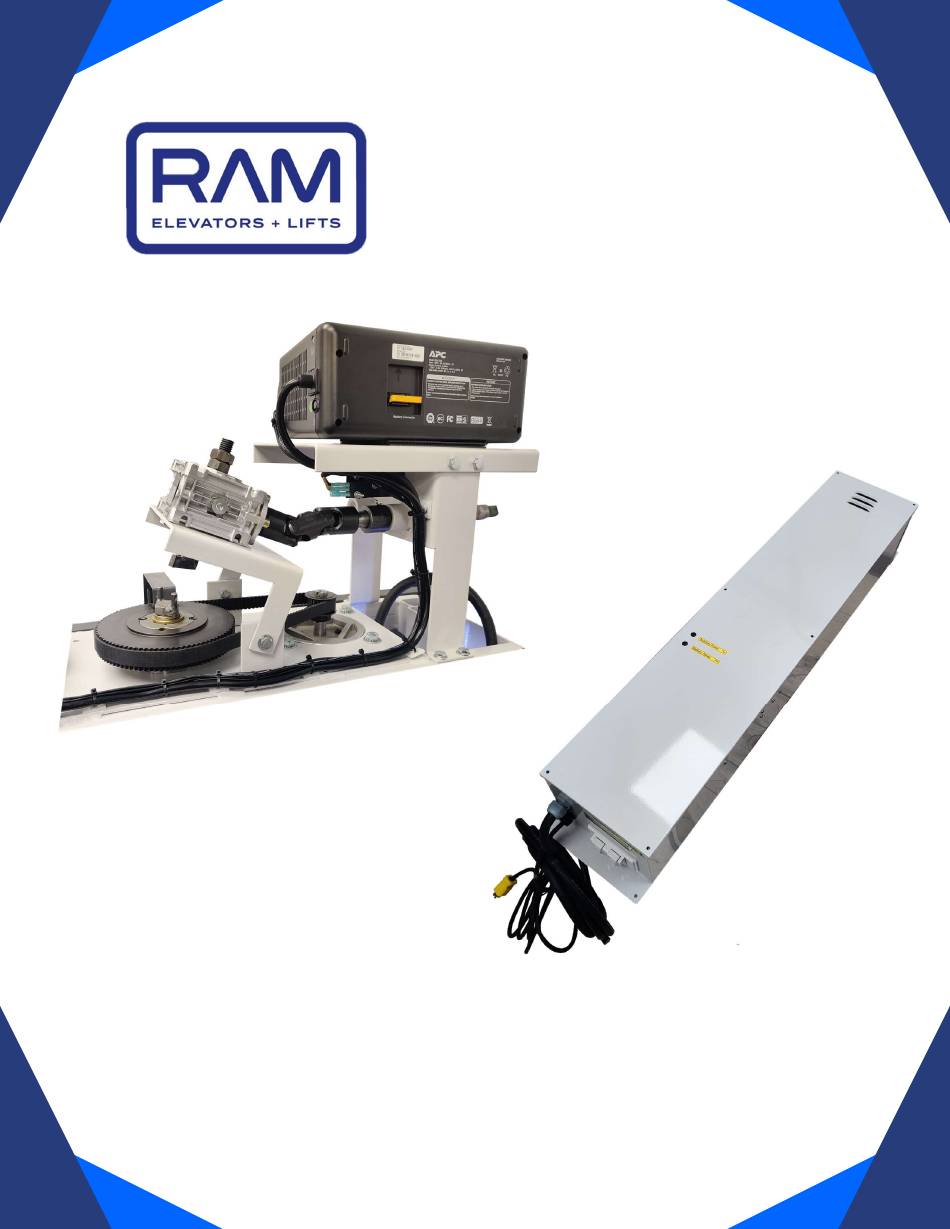

- Page 1 TRUS-T-LIFT SUPPLEMENTAL MANUAL #4 EMERGENCY OPERATION DEVICES...
- Page 2 RAM Elevators + Lifts 1-800-563-4382...
-
Page 3: Table Of Contents
2.1: Symbols and Definitions ......................... 1 2.2: Additional Symbols ......................... 1 2.3: Safety Notes ............................. 2 Section 4: 90 Degree Manual Crank ......................3 Section 5: UPS ............................5 Section 6: Tower of Power ........................6 1-800-563-4382 RAM Elevators + Lifts... -
Page 4: Section 1: Introduction
This supplemental manual has been provided to walk you through the safe and efficient installation of a Trus-T-Lift UPS, Tower of Power, and 90 Degree Manual Crank. Please read this manual, as well as the main installation manual, thoroughly before installing and operating your lift. -
Page 5: Safety Notes
The lift is intended for use by people and not to be used for cargo or other purposes. Lifting capacity is up to a maximum of 750 lb. unless otherwise noted on the lift and in RAM’s supplied documentation. (DO NOT OVERLOAD THE LIFT). Overloading the lift will render RAM’s warranty null and void. -
Page 6: Section 4: 90 Degree Manual Crank

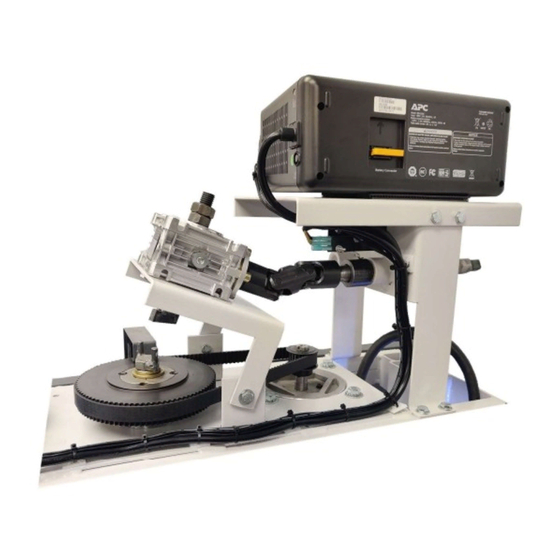

Section 4: 90 Degree Manual Crank As an optional upgrade to the Trus-T-Lift, RAM offers a 90 degree manual cranking device that allow the lift to be cranked from the side without removing the top cover. The above figure shows the normal position of the 90 Degree Manual Crank, disengaged. While the figure only shows the manual crank access on the left, the side the crank is on is specified at the time of order. - Page 7 4) After the lift platform has reached the desired landing, rotate the shaft in the opposite direction approximately 5 times to relieve the load on the gearbox, and then retrieve the socket ratchet and extension to disengage the crank. 1-800-563-4382 RAM Elevators + Lifts...
-
Page 8: Section 5: Ups
Section 5: UPS If you ordered your Trus-T-Lift with a UPS, the unit will come with the UPS pre-installed under the top cover. To set up the UPS, press the power button located on the carriage side of the tower. -
Page 9: Section 6: Tower Of Power
Section 6: Tower of Power The Trus-T-Lift Tower of Power serves as a battery backup for the lift, supplying power to the unit when building power has been cut off or irregular. The Tower of Power does not come with batteries. - Page 10 5) Turn on the inverter switch located on the bottom side of inverter. 6) Wait 105 seconds, and battery power light should come on. Once you confirm that the tower is operating correctly, reinstall the front cover. RAM Elevators + Lifts 1-800-563-4382...
