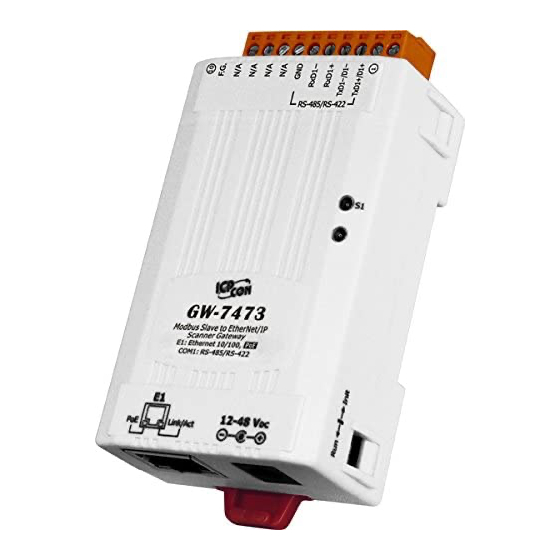

GW-7473 QUICK START
What's in the shipping package?
The package includes the following items:
GW-7473

Installing software on your PC

Install GW-7473 Utility:
The software is located at:
Fieldbus_CD:\EtherNetIP\Gateway\GW-7473\Utility
http://ftp.icpdas.com/pub/cd/fieldbus_cd/ethernetip/gateway/gw-7473/utility/
Software CD
(This Document)
GW-7473 Quick Start
GW-7473
English/ June 2014/ Version 1.0
Quick Start
(DC connector to
2-wire power cable)
CA-002
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GW-7473 and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA GW-7473

Summary of Contents for ICP DAS USA GW-7473

  • Page 1 GW-7473 QUICK START GW-7473 English/ June 2014/ Version 1.0 What’s in the shipping package? The package includes the following items: CA-002 Quick Start Software CD GW-7473 (DC connector to (This Document) 2-wire power cable) Installing software on your PC Install GW-7473 Utility:...
  • Page 2 PC and GW- 7473 with RS-485/RS-422 converter。 5. Connect both the GW-7473 and your computer to the same sub network or the same Ethernet switch, and power the GW- 7473 on. GW-7473 also supports to PoE connections. Users can make a PoE connection with a PoE switch.
  • Page 3 GW-7473 Utility 1. Double click the GW-7473 Utility shortcut on the desktop. 2. Select the connection interface Modbus RTU or Modbus TCP 3. Click “connect” to open “Diagnostic Window” GW-7473 Quick Start...
  • Page 4 3. Modbus RTU Configurations: “Net ID”, “Baud Rate”, “Data Bits”, “Stop Bits” and “Parity”， The default Modbus settings are shown below. Item Settings (Init Mode) Net ID Baud Rate 115200 Data Bits Stop Bits Parity None 4. Click “Submit” to finish the configurations. GW-7473 Quick Start...
  • Page 5 2. Click “Add” to add a new EtherNet/IP adapter information to the menu. Click “Edit” to modify the menu. Click “Del” to remove the adapter information on the menu. Click “Submit” to save the configurations. 3. GW-7473 will connect to the EtherNet/IP adapter automatically after rebooting. GW-7473 Quick Start...
  • Page 6 1. On the Modbus Command window, users can modify the Modbus command. Click “Add” to add a Modbus Command to the menu. Click “Remove” to remove the command on the menu. 2. Click “START” to send Modbus command. Click “STOP” to finish the process. GW-7473 Quick Start...
  • Page 7 Related Information GW-7473 Product page: http://www.icpdas.com/products/Remote_IO/can_bus/GW -7473.htm GW-7473 Documentations: Fieldbus_CD:\EtherNetIP\Gateway\GW-7473\Manual http://ftp.icpdas.com/pub/cd/fieldbus_cd/ethernetip/gateway/gw-7473/manual/ GW-7473 Utility: Fieldbus_CD:\EtherNetIP\Gateway\GW-7473\Utility http://ftp.icpdas.com/pub/cd/fieldbus_cd/ethernetip/gateway/gw-7473/utility/ GW-7473 firmware Fieldbus_CD:\EtherNetIP\Gateway\GW-7473\firmware http://ftp.icpdas.com/pub/cd/fieldbus_cd/ethernetip/gateway/gw-7473/firmware/ IC P DAS Web Site: http://www.icpdas.com Contact Us (E- Mail): Se rvice@icpdas.com Copyright @ 2014 by ICP DAS Co., Ltd. All Rights Reserved.
