1. SPECIFICATIONS

[DVR-A06/ KBXV]
A
[Setting]
This drive is Horizontal and Vertical Use.
[Disc Size]
• 12 cm (4.72") / 8 cm (3.15")*
*8 cm (3.15") discs cannot be used at upright position.
[Data Transfer Rate]
Data Read (Sustained)
DVD
CD
B Data Write (Sustained)
DVD
CD
Host Interface specification
PIO Mode 4, Multi word DMA Mode 2
Ultra DMA mode 2
• The data transfer rate may not be output due to disc conditions (scratches, etc.).
[Access Time/ Seek Time]
Access time (Random average)
C
Seek time (Random average)
[Audio Characteristic]
Line Out
[Others]
Power Supply
Dimensions
D
(including front panel)
Weight
Operation temperature
Operation humidity
Storage temperature
Storage humidity
[Accessories]
Short-circuit socket
Audio cable
Mounting screw
E
Operating instructions
NOTE:
• Specifications and design subject to possible modifications without notice, due to improvements.

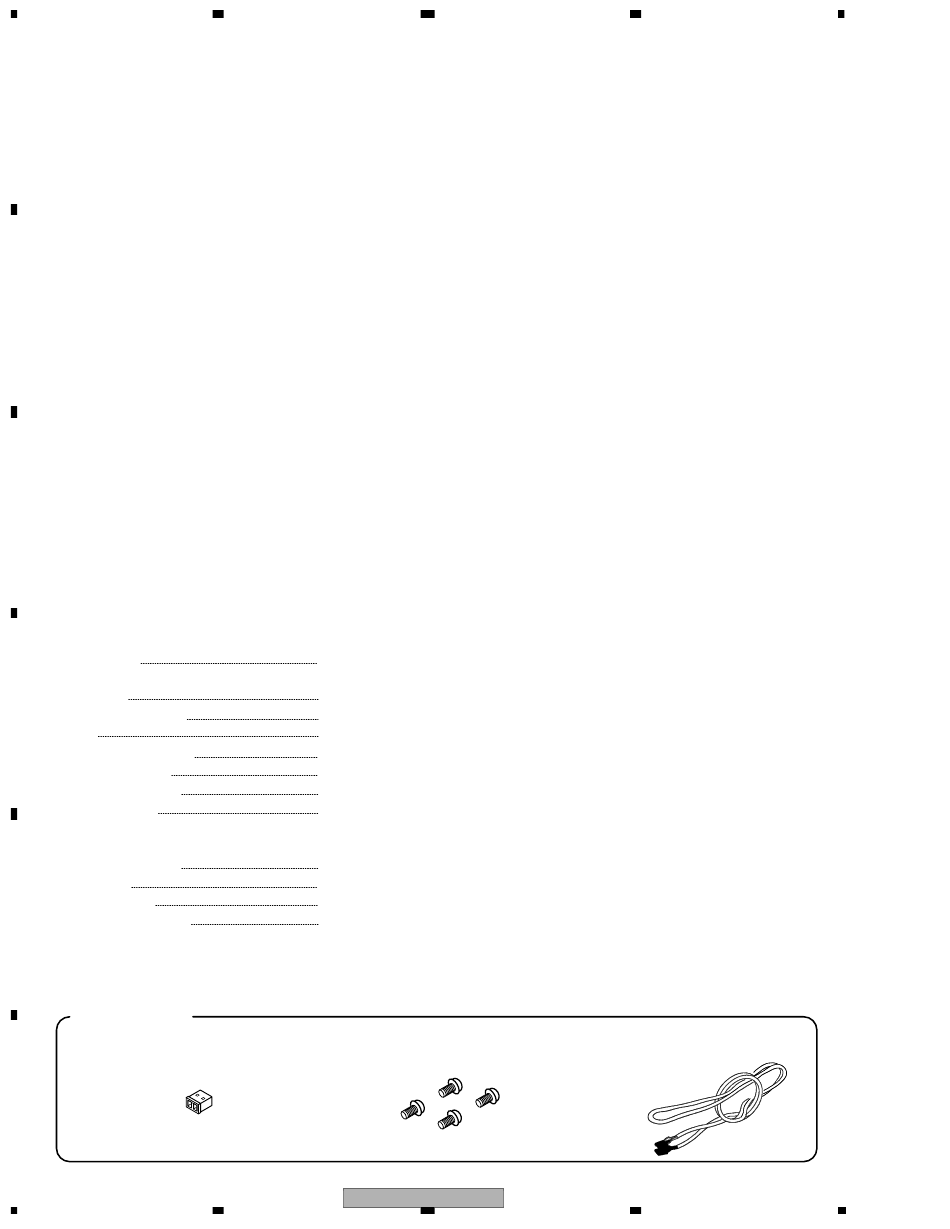

Accessories
Short-circuit socket x1
(DKX1046)
F
4
1
2
Max. 16.62MBytes/sec.
Max. 4.92MBytes/sec. (13.7 - 32X CAV Mode over 16 block transfer)
Ave. 5.54 MBytes/sec. (4X DVD-R)
Ave. 2.46 MBytes/sec. (16X CD-R)
16.6 Mbytes/sec.
33.3 MBytes/sec.
DVD-ROM 140 ms CD-ROM 130 ms
DVD-ROM 120 ms CD-ROM 100 ms
0.7 ± 0.1 Vrms (at 10 kΩ load)
DC +12 V, 0.6 A
DC +5 V, 1.1 A
148 (W) x 42.3 (H) x 198 (D) mm
5-27/32 (W) x 1-11/16 (H) x 7-25/32 (D) in.
1.1 kg (2.43 lb)
+5°C to +45°C (41°F to 113°F)
5% to 85% (no condensation)
– 40°C to +60°C (– 40°F to 140°F)
5% to 90% (no condensation)
x1
x1
x4
x1
Mounting screw x4
(PMB30P060FMC)
DVR-A06
2
3
Audio cable x1
(DKP3369)
3
4
