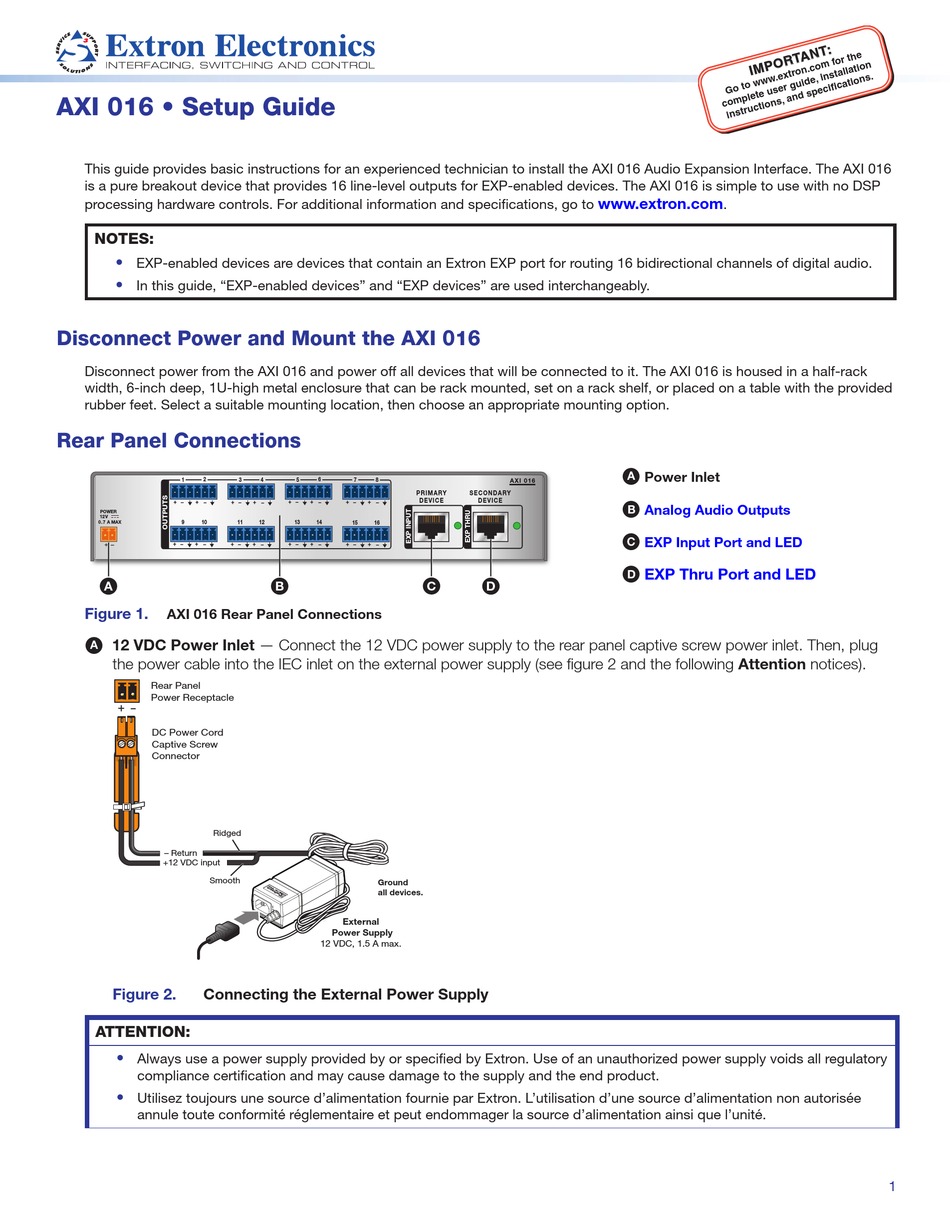

AXI 016 • Setup Guide

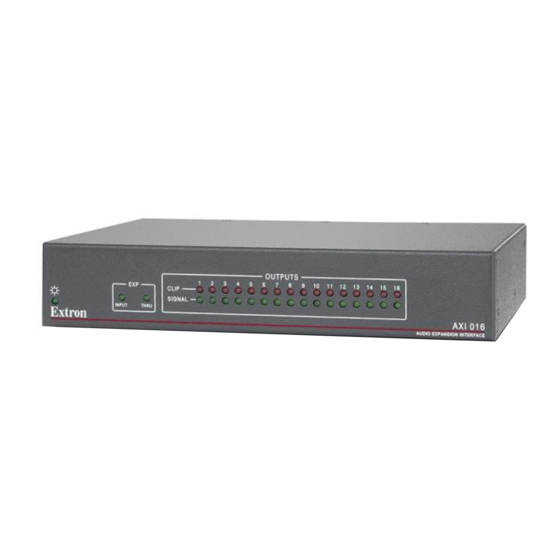

This guide provides basic instructions for an experienced technician to install the AXI 016 Audio Expansion Interface. The AXI 016
is a pure breakout device that provides 16 line-level outputs for EXP-enabled devices. The AXI 016 is simple to use with no DSP
processing hardware controls. For additional information and specifications, go to
NOTES:
•
EXP-enabled devices are devices that contain an Extron EXP port for routing 16 bidirectional channels of digital audio.
•
In this guide, "EXP-enabled devices" and "EXP devices" are used interchangeably.
EXP
CLIP
Disconnect Power and Mount the AXI 016
SIGNAL
INPUT
THRU
Disconnect power from the AXI 016 and power off all devices that will be connected to it. The AXI 016 is housed in a half-rack
A
B
width, 6-inch deep, 1U-high metal enclosure that can be rack mounted, set on a rack shelf, or placed on a table with the provided
rubber feet. Select a suitable mounting location, then choose an appropriate mounting option.
Rear Panel Connections
1
2
POWER
12 V
9
10
0.7 A MAX
A
Figure 1.
AXI 016 Rear Panel Connections
12 VDC Power Inlet — Connect the 12 VDC power supply to the rear panel captive screw power inlet. Then, plug
A
the power cable into the IEC inlet on the external power supply (see figure 2 and the following Attention notices).
Rear Panel
Power Receptacle
DC Power Cord
Captive Screw
Connector
Ridged
– Return
+12 VDC input
Smooth
Figure 2.
Connecting the External Power Supply
ATTENTION:
•
Always use a power supply provided by or specified by Extron. Use of an unauthorized power supply voids all regulatory
compliance certification and may cause damage to the supply and the end product.
•
Utilisez toujours une source d'alimentation fournie par Extron. L'utilisation d'une source d'alimentation non autorisée
annule toute conformité réglementaire et peut endommager la source d'alimentation ainsi que l'unité.
OUTPUTS
1
2
3
4
5
6
7
8
9
10
11 12
13 14
C
3
4
5
6
7
8
PRIMARY
13
14
11
12
15
16
B
Ground
all devices.
External
Power Supply
12 VDC, 1.5 A max.
www.extron.com
15 16
AXI 016
AUDIO EXPANSION INTERFACE
AXI 016
SECONDARY
DEVICE
DEVICE
C
D
.
A
Power Inlet
B
C
D
1
Advertisement
Table of Contents
Related Manuals for Extron electronics AXI 016
Summary of Contents for Extron electronics AXI 016
- Page 1 AUDIO EXPANSION INTERFACE Disconnect power from the AXI 016 and power off all devices that will be connected to it. The AXI 016 is housed in a half-rack width, 6-inch deep, 1U-high metal enclosure that can be rack mounted, set on a rack shelf, or placed on a table with the provided rubber feet.
- Page 2 (–). EXP Input Port and LED — This RJ-45 EXP port connects the AXI 016 to the EXP port of a primary EXP device. The Expansion output channels of the primary EXP device are sent to the AXI 016 line outputs (see...
- Page 3 Daisy-chaining two or more AXI 016 units together is not supported. Connecting a Primary Device to the EXP Input Port The diagram below displays the AXI 016 signal flow when only a primary EXP device, such as the DMP 128 Plus, is connected to the EXP INPUT port of the AXI 016.
- Page 4 All 16 Expansion output channels of the primary EXP device are routed to the 16 analog line outputs of the AXI 016 (see path A1 in the figure below). Expansion output channel 1 of the primary EXP device is routed to the AXI 016 line output 1, and so •...
- Page 5 OVER TP RS-232 50-60 Hz Tx Rx Tx Rx NOTE: Dotted lines represent signal flows inside the AXI 016. Solid lines represent signal flows over CAT 6 cable. Figure 6. Advanced Signal Flow when Primary and Secondary EXP Devices are Connected...
- Page 6 • All 16 Expansion output channels of the secondary EXP device are routed to the 16 line outputs of the AXI 016. The Expansion output channels of a secondary EXP device are only routed to the AXI 016 line outputs when no primary device...
