Summary of Contents for Geneinno T1 Pro

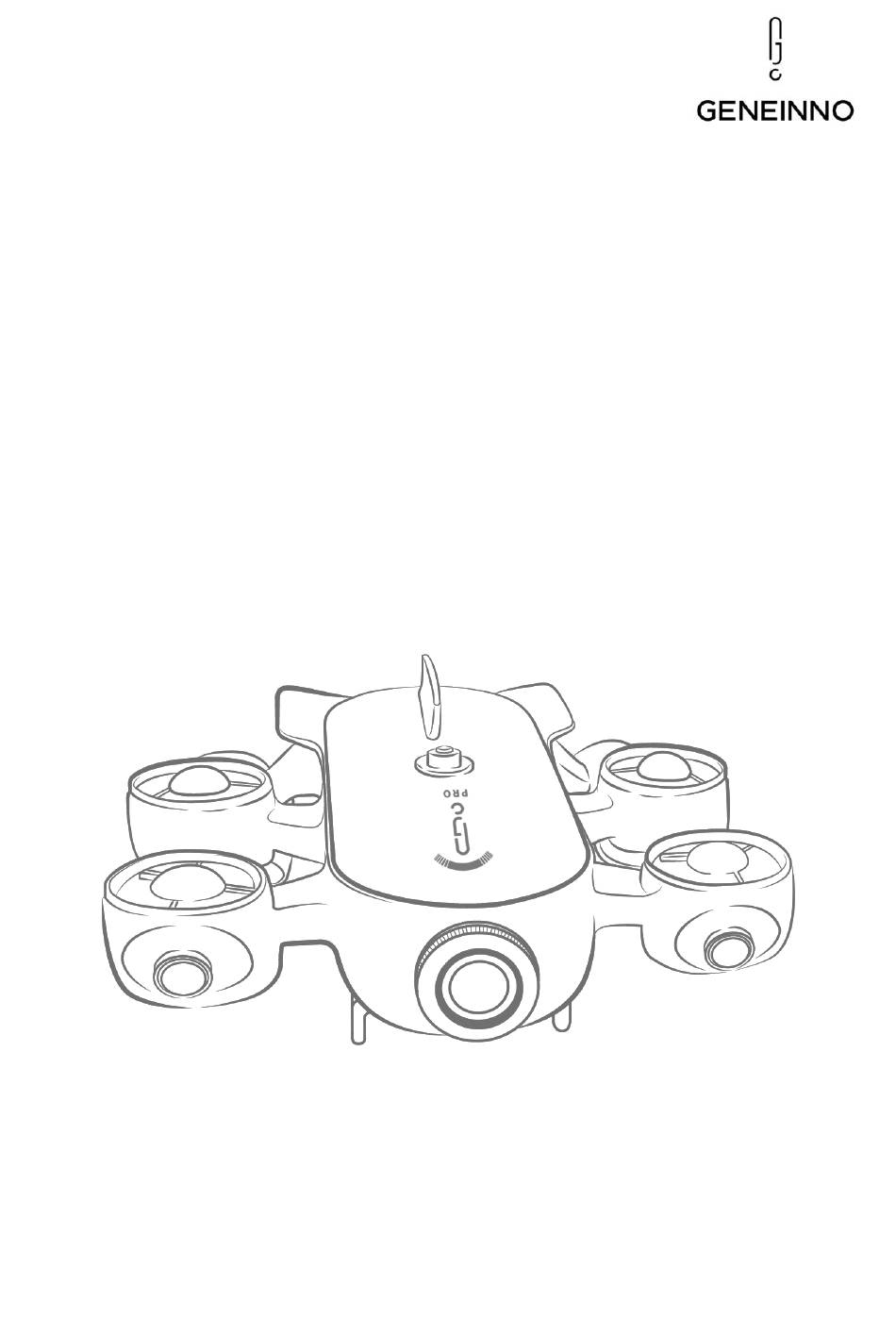

- Page 1 Geneinno Intelligent Robot T1 Pro User Manual V1.0.1 2020.12 Shenzhen Geneinno Technology Co., Ltd www.geneinno.com...
- Page 2 13. Failure or damage caused by third-party products, including products provided or embedded into T1 Pro by GENEINNO at your request; 14. Damage caused by unofficial technology or third-party guidance, such as incorrect product settings, installation, and firmware upgrades;...
- Page 3 I. Introduction Geneinno T1 Pro is a light industrial-grade intelligent underwater robot able to dive to 175m depth. CarriedA17/A7 dual cores CPU, support H264/265 ultra-HD 4K video codec, built-in 12-million-pixel class professional camera, 3000lm led fill light in front. built-in dedicated image...
- Page 4 According to the use environment, should set sea water or fresh water in the APP to avoid affecting the water depth data. © 2020-2022 GENEINNO All Rights Reserved.
-
Page 5: App Download
Open APP, Please register as a Geneinno member and log in. 2. Start l Separately insert the two buoyancy cables into the T1 PRO and the wireless relay then tighten the fastening nut. Note: Check whether the O-ring on the waterproof connectors missing or damaged. -
Page 6: Device Operation
It can also be connected to a Bluetooth controller for precise operation with professional controllers. l Detailed APP operating instructions can be viewed in the “Beginner Help” of APP or download the latest version of the operating instructions on the official website of Geneinno.(www.geneinno.com) © 2020-2022 GENEINNO All Rights Reserved. -
Page 7: Bluetooth Controller
APP homepage, choose “Bluetooth Controller ”, click to search Bluetooth controller , it can find the Bluetooth controller (GENEINNO-XXXX), click “Connect”, after the connection is successful, the controller LED1/2 will always be on; c. Switch Off: Flip the left switch to “Off”, controller will power off. -
Page 8: Installation
III. T1 Pro Special Accessory Guideline Accessory Buoyancy Block Installation ① ② ① Align the mounting hole with the hole on bracket, with the arrow of buoyancy block upward. ② Install the wing screw through the hole, insert from the outside to the inside, and tighten the nut by hand. - Page 9 Install and connect the Lateral Thruster to underwater robot first, and then power on the robot. Use a tablet or smart phone to connect, and enter the control page in the Geneinno APP. l Operate the right joystick to control the horizontal movement, the left and right direction is the movement direction of the T1.
- Page 10 Tighten it clockwise. Note: The connector has an anti-reversal insertion design, please pay attention when inserting, please do not rotate when inserting, to avoid damage to the pin and its internal structure. ① ② ③ ④ © 2020-2022 GENEINNO All Rights Reserved.
- Page 11 LED, please use the standard dedicated charger only. Note: The special charger for external batteries can only charge external batteries, and is not allowed to charge any other devices. © 2020-2022 GENEINNO All Rights Reserved.
-
Page 12: Specification
IRIS: F2.5 FOV: 160° White Balance 3000K~8000K Video Resolution: 4K UHD:4000*3000 30fps; Frame Rate 1080P FHD: 1920*1080 60fps Video Format MP4(H264/H265) Photo Format JPEG Lumens 2*1500 LM Cable Cable Work Strength 55kg/220lbs Length 200m/300m Diameter 4.5mm © 2020-2022 GENEINNO All Rights Reserved. -
Page 13: App Operation
Note: with buoyancy material External Battery with LED Dimensions 472mm*φ36mm Weight 1650g(air), 400g (water) Battery Parameters 4400mAh/97.68Wh/22.2V Battery Life Charing Time Lateral Thruster Dimensions 112mm*φ78mm Weight 205 g Maximum thrust output 1.2kg Maximum Current 3.8A © 2020-2022 GENEINNO All Rights Reserved. -
Page 14: Maintenance
This kind of damage is unrecoverable. After-sale service More information please check in Geneinno APP Help selection. If you need other after sales support or technical issue, please contact support@geneinno.com or check our website “Service & Support”, https://www.geneinno.com/support... - Page 15 Official Media Facebook YouTube Wechat Weibo Shenzhen Geneinno Technology Co.,LTD www.geneinno.com...
