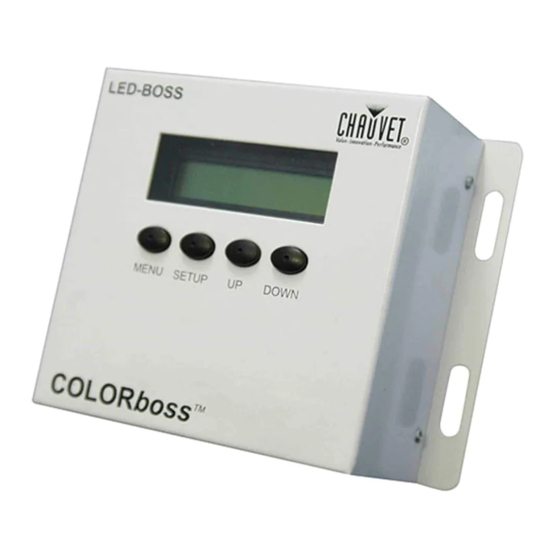

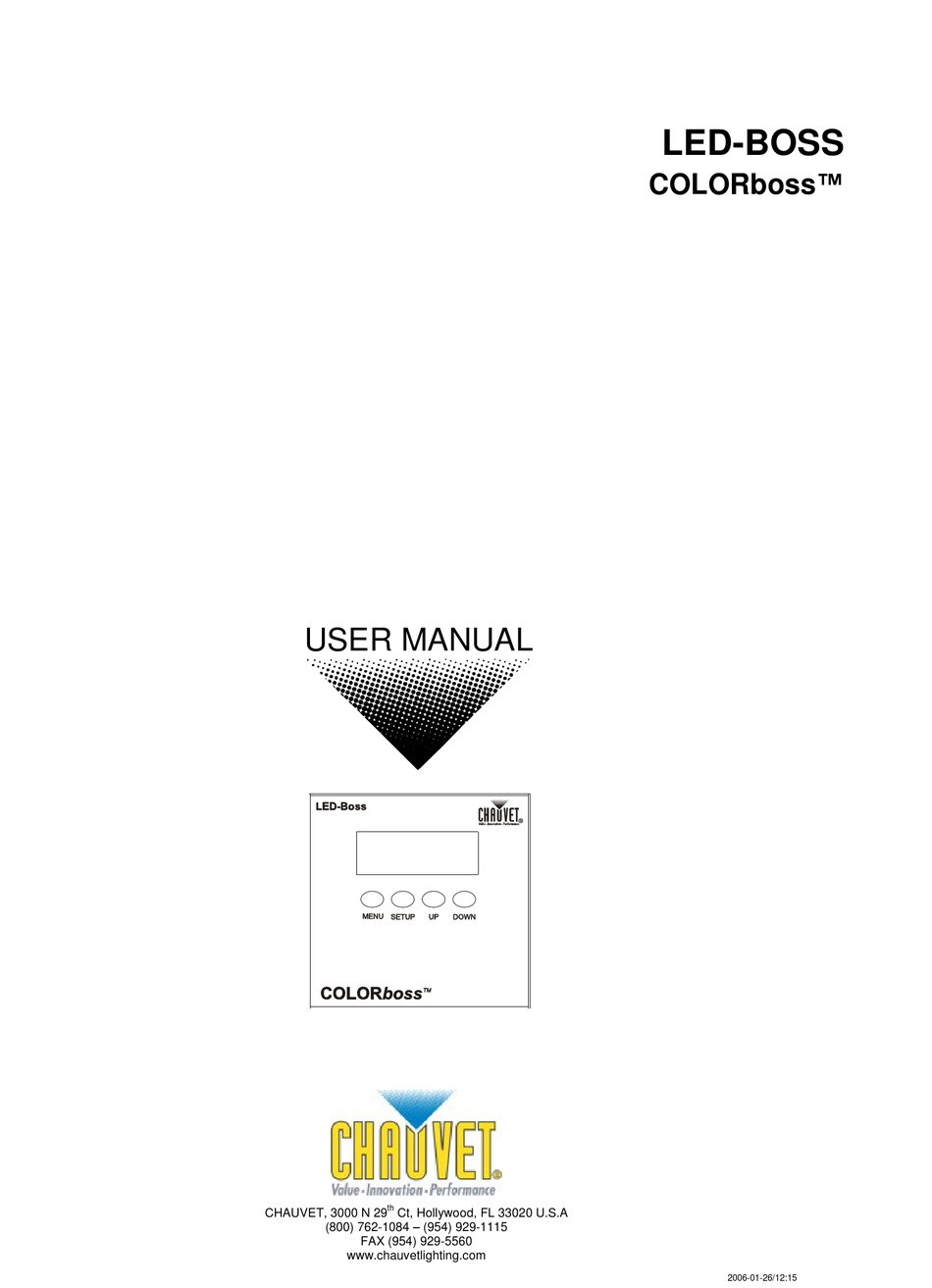

- Page 1 LED-BOSS COLORboss™ USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2006-01-26/12:15...
-
Page 2: Table Of Contents
DMX C ... 8 ONTROL DMX Channel Values... 8 APPENDIX ... 9 DMX P ... 9 RIMER Fixture Linking ... 9 ... 10 ETURNS ROCEDURE ... 10 LAIMS ... 10 ECHNICAL PECIFICATIONS ... 10 ECHNICAL UPPORT LED-BOSS User Manual 2006-01-26/12:15... -
Page 3: Before You Begin
There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. LED-BOSS User Manual NOTICE This controller will work only with the LED-PAR196 COLORsplash™... -
Page 4: Introduction
Select up to 20 par cans in a program Speed, Flash or Chase control channel Chase speed control channel Features Built in Microphone Digital LCD display DMX Channel Summary HANNEL Range of Fixtures Control Options Chase Speed LED-BOSS User Manual UNCTION Programs 2006-01-26/12:15... -
Page 5: Product Overview
Connect from the DMX Output of the controller to the Fix. 1 - Channel 1 DMX Input of the first fixture. LED-BOSS User Manual SEGMENT BUTTONS UTTONS Used to navigate and select MENU controller functions SETUP... -
Page 6: Dmx Setup & Addressing
Total = 24 Resolving address using simple math. Address 233 LED-BOSS User Manual MOUNT DDRESS 233 – (128) = 105, Turn ON Dip # 8 105 – (64) = 41, Turn ON Dip # 7 41 – (32) = 9, Turn ON Dip # 6 9 –... -
Page 7: Operating Instructions
For example, you can select par 1 or 1-3, or 1-10 etc. With your channel fader on the console raised full, all 20 pars would become visible. LED-BOSS User Manual [MENU] Returns to Main menu or step backward through functions... -
Page 8: Dmx Control Mode
118 137 138 156 157 176 177 196 197 215 216 235 236 254 000 255 000 255 000 255 LED-BOSS User Manual UNCTION Programs Black Green Yellow Blue Purple Cyan White... -
Page 9: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 10: Returns Procedure
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.
