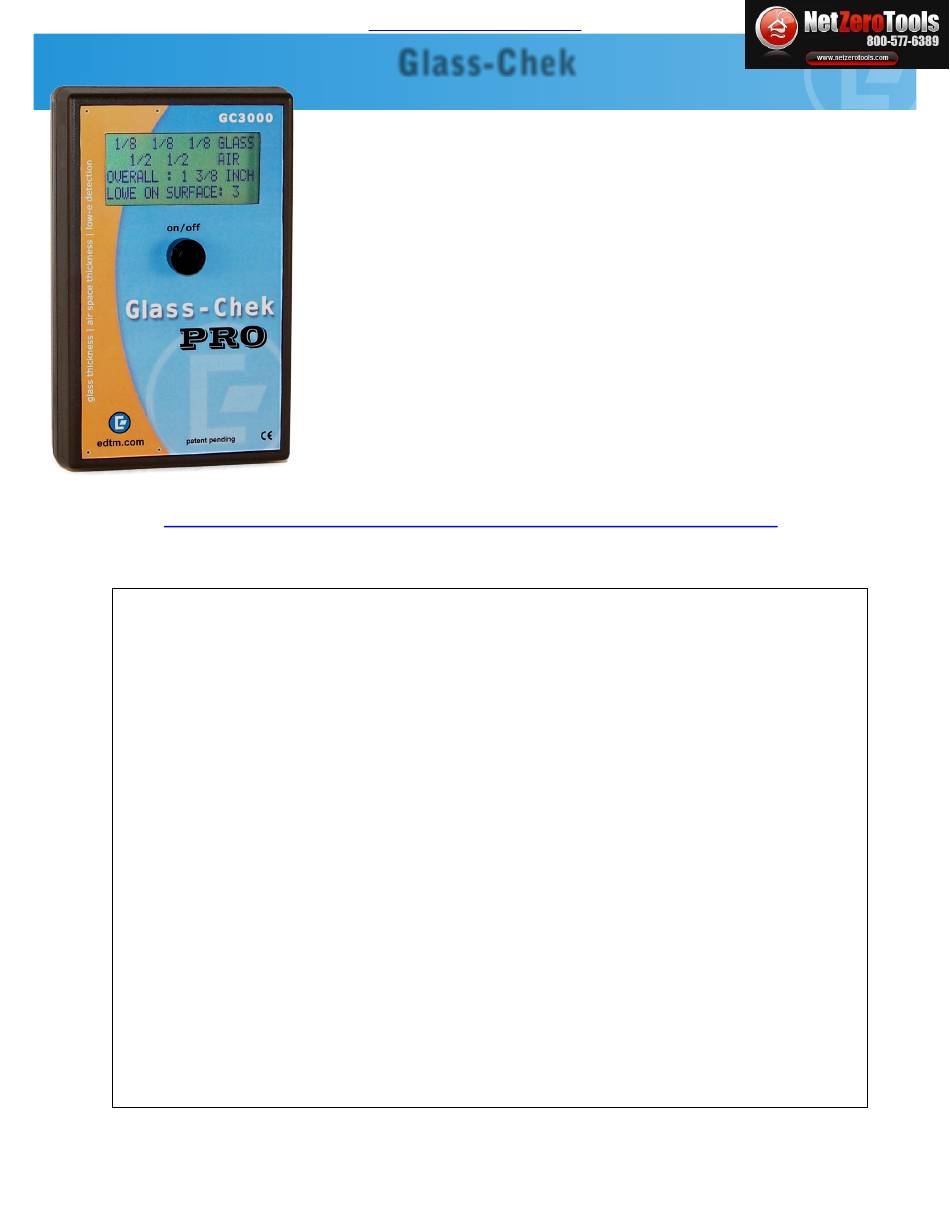

Glass-Chek
Glass Thickness Meter and Low-E Coating Detector
Operating Manual
Glass-Chek PRO - GC3000

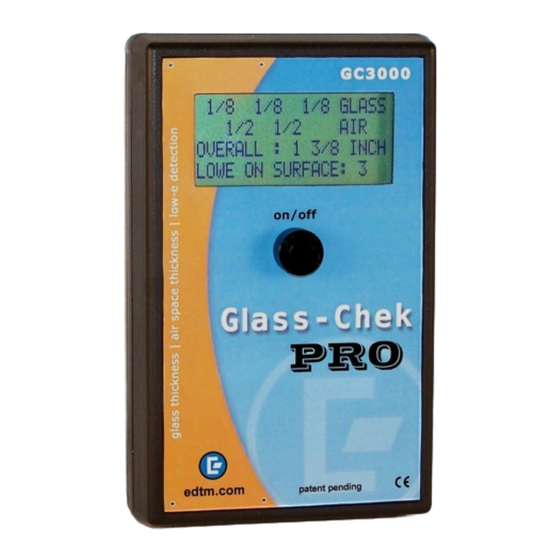

The Glass-Chek PRO enables you to measure glass and air space
thickness of triple pane windows from a single side (also compatible with
double and single pane). Furthermore, the GC3000 allows you to
determine the presence, location and type of invisible low-E coatings.
This manual will outline how to use the meter, including choosing language
and measurement settings, explanations of "results" screens, proper use,
and maintenance of the meter. Additionally, it will outline appropriate
applications, technical details and warranty information.
Contents
• Choose Normal, Hi Res or Low-E Laminate
• Choose Display Units
• Proper Hand Placement
Application Details
• Compatible Applications
Application Details
• Glass-Chek Pro Specifications
• Laminated glass (continued on Page 9)
Glass-Chek PRO Specifications
• Laminated Glass with Low-E against the PVB
• Warranty Details
netzerotools.com
PRO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EDTM Glass-Chek PRO
Summary of Contents for EDTM Glass-Chek PRO
-
Page 1: Table Of Contents
Glass Thickness Meter and Low-E Coating Detector Operating Manual Glass-Chek PRO - GC3000 The Glass-Chek PRO enables you to measure glass and air space thickness of triple pane windows from a single side (also compatible with double and single pane). Furthermore, the GC3000 allows you to determine the presence, location and type of invisible low-E coatings. -
Page 2: Model # Gc3000
DO NOT SAVE - EXIT SAVE CHANGES - EXIT As shown at right, gently touch the back of the Glass-Chek PRO to scroll through the menu options. Touching the back of the meter will advance the arrow to the next line. Do not hit or tap the meter with excessive force. -
Page 3: Choose Your Language In Setup Mode
netzerotools.com Choose Your Language in Setup Mode Page 2 In the Setup Mode menu, select the “LANGUAGE” option. MODE: NORMAL Touch the back of the meter to scroll through the available languages. Push the DISPLAY UNITS button to select your desired language when it appears on the display. Save LANGUAGE: ENGLISH LANGUAGE: ENGLISH your changes. -
Page 4: Proper Operation Of The Glass-Chek Pro
Proper Operation of the Glass-Chek PRO Page 3 Place the meter on the window to be tested. Press and release the button to turn the meter on and take a measurement. As the initial message (below at left) is displayed, the meter is already taking a reading. Do not hold the button down, as this will cause you to enter setup mode. -
Page 5: Explanation Of Measurement Displays
Explanation of Measurement Displays Page 4 The Glass-Chek Pro offers various display formats. The following illustrations are examples of measurement displays with explanations of the application being tested and how the display format was configured. — Measurement Display Example One —... -
Page 6: Explanation Of Error Messages
PURPOSES ONLY", and that the goods have "NO COMMERCIAL VALUE". If you must put a commercial value on the products, place $1 or $10 value on it so there will be no customs impact. Please note that EDTM will not be responsible for any customs or government processing fees. -
Page 7: Troubleshooting Guide
7) Be sure nothing is touching the glass while taking readings. Placing your hand or a metallic object against the lite of glass you are testing may cause the Glass-Chek PRO to yield improper Low E results. Remove your hand or object. Do not touch any part of the glass with your hand while taking readings. -
Page 8: Low-E Detection Capabilities
Glass-Chek PRO Application Details Page 7 Will Test: • Flat glass applications • Clear glass or glass with low-E coatings, self-clean coatings or other specialty coatings as long as the glass/coating is transparent • Laminated glass with low-E coatings positioned against the laminate (see page 9) •... -
Page 9: Glass Thickness Range
Glass-Chek Pro Application Details Page 8 Specifications • Power Source: 9 volt alkaline battery (NEDA 1604A) only • Physical Dimensions: 3.5” x 5.5” x 1.7 inch (89 x 140 x 43mm) • Weight: 0.75 pounds • Maximum Laser Output: <1mW (2M laser product) -
Page 10: Gc3000 Standards Table
Batteries are not covered by warranty. EDTM, Inc. assumes no liability for the consequential damages of any kind through the use or misuse of the GC3000 product by the purchaser or others. No other obligations or liabilities are expressed or implied.
