Summary of Contents for NSK TiMax Z

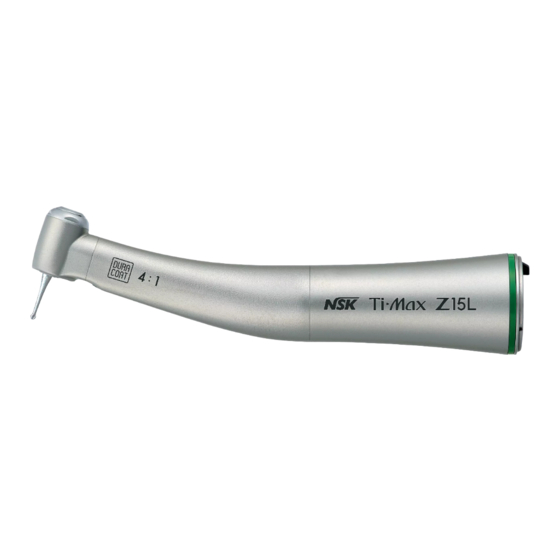

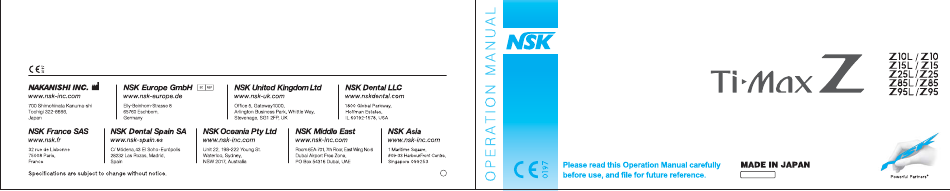

- Page 1 Contra Angle Handpiece The EU directive 93/42/EEC was applied in the design and production of this medical device. ’11.11.05 S OM- C0442E...
- Page 2 Intended to use This handpice is intended only for dental clinic/dental office use. CAUTION · When operating the Handpice always consider the safety of the patient. · Check for vibration, noise and overheating outside the patient's oral cavity before use. If any abnormalities are found, stop using the Handpice immediately and contact dealer.
-
Page 3: Specification
1. Specification · Always keep bur shanks clean. Dirt or debris in a chuck could cause poor bur concentricity or low chuck retention force. · Do not exceed the drive motor speed recommended the bur manufacturers. Model Z10L Z15L Z25L Z85L Z95L ·... -
Page 4: Check Before Treatment
1) Connect handpiece and motor. Follow the check below, before use. If any abnormalities are found, stop using the handpiece immediately and contact the authorized NSK dealer 2) Depressing the push button and insert the bur into the chuck. ( Fig. 2 ) Push Button 1 ) Insert the Bur. -
Page 5: Maintenance
4-2 Removing the Bur ( Fig.3 ) 5-2 Cleaning ( Z10L,Z15L,Z25L,Z85L,Z95L ) Cotton Swab Push Button 1 ) Push the push button with a thumb. ( Wipe clean the Cellular Glass Optic Rod entry point and exit point with an alcohol-immersed cotton 2 ) Pull out the bur. -
Page 6: Warranty
6. Warranty NSK warrants the handpiece against production errors and material defects. NSK reserves the right to analyze and determine the cause of any problem. Warranty is voided should the handpiece be not used correctly. Replacement parts are available for seven years beyond discontinuation of the...
