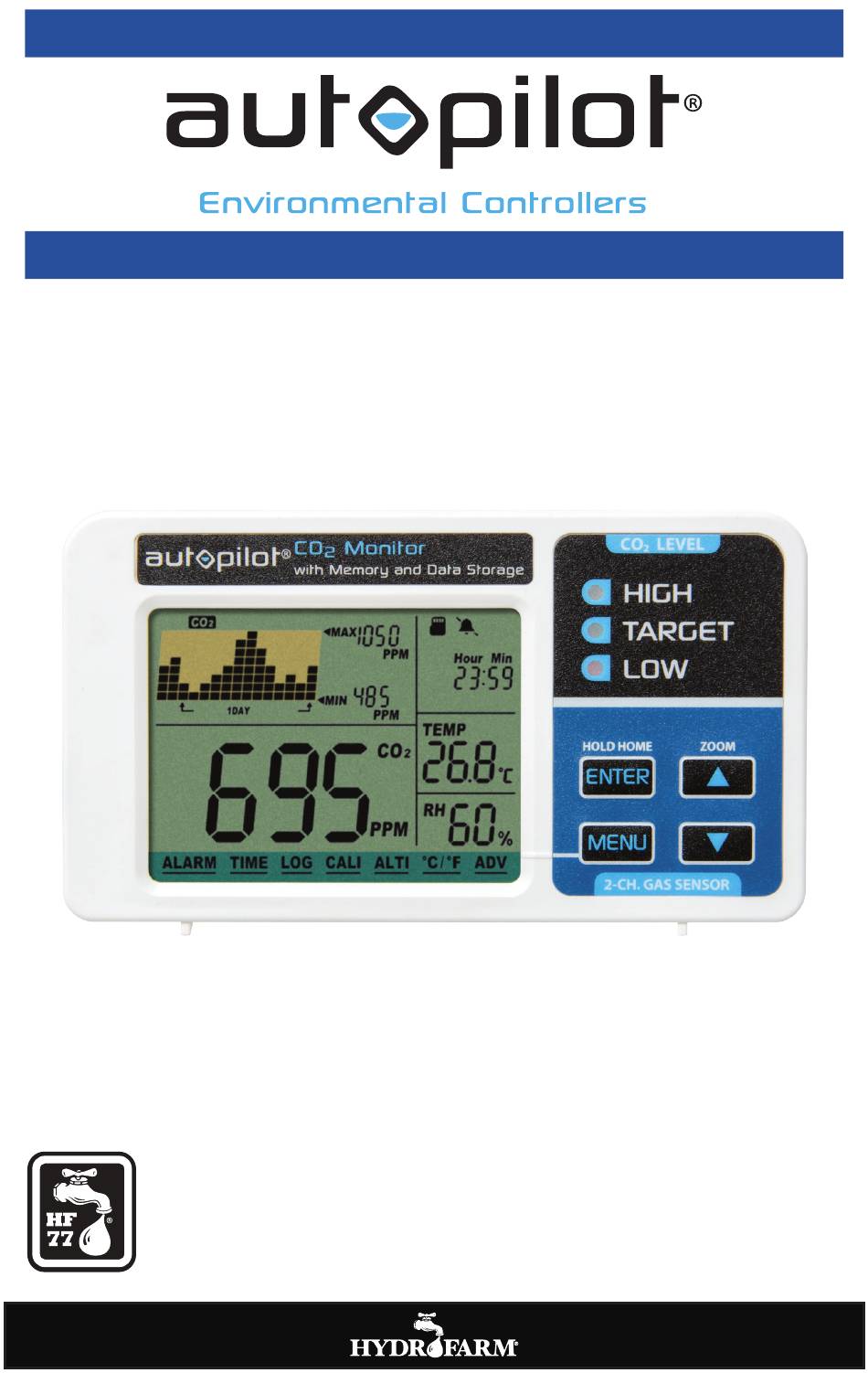

- Page 1 USER MANUAL MONITOR (w/Memory & Data Storage) APCEMDL AutopilotControllers.com...
- Page 2 AutopilotControllers.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS OVERVIEW PARTS LIST (WHAT’S IN THE BOX) LCD DISPLAY DISCLAIMERS OPERATING INSTRUCTIONS INITIAL SETUP SD CARD FOR LOGGER MAIN MENU FUNCTIONS TREND CHART TREND CHART ZOOM MAX/MIN CLOCK MAIN MENU FUNCTIONS CHART SPECIFICATIONS WARRANTY... -
Page 4: Overview

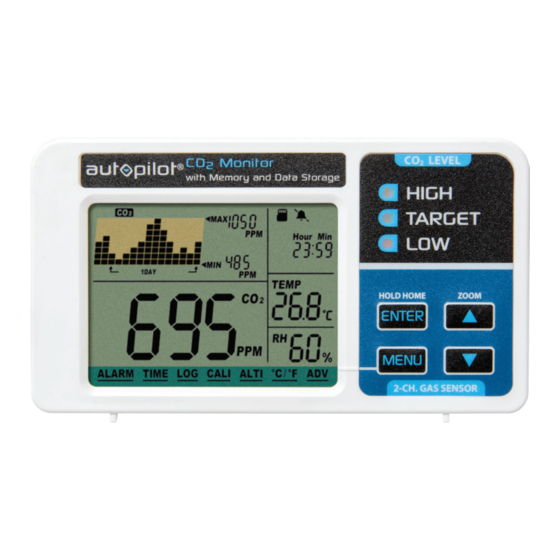

OVERVIEW Thank you for purchasing the Autopilot APCEMDL Desktop CO Monitor with Memory and Data Storage. Developed to detect the presence of CO in ambient air, this device is smart, compact and easy to use. In addition to measuring the CO concentration, the APCEMDL also measures the room’s ambient temperature and relative humidity. -
Page 5: Parts List (What's In The Box)
PARTS LIST - (WHAT’S IN THE BOX) PARTS LIST C - 1GB Micro SD card A - Power cord D - CO Monitor B - USB Power Adapter Holes for Screws Hole for Rope Strap Calibration Hole (screws not included) (strap not included) (for factory only) 2.0"/50.8 mm... -
Page 6: Lcd Display
Neither Hydrofarm nor the manufacturer assume any responsibility for any damage or loss suffered by the user or any third party arising through the use of this product or its malfunction. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS INITIAL SETUP When first unboxing, plug the included Micro USB cable (or one of your own) into the unit and the other end into almost any cell phone charger or USB power source. If successfully connected, three things will happen while booting up: •... -
Page 8: Main Menu Functions
The APCEMDL records data to the log (.csv file) every 5 seconds. Each .csv file compiles a maximum of 30,000 sets of data. If the maximum limit of 30,000 sets is reached, the unit will simply create another new .csv file (spreadsheet). In a full year of constant operation and data-logging, the SD card will contain 210 spreadsheets (over 6 million entries total). -
Page 9: Trend Chart
TREND CHART The trend chart displays the past readings for CO , temperature and RH parameters. These readings can be toggled by using the DOWN key: CO , TEMP, RH. See below: TREND CHART ZOOM Below is a table that shows the available zoom levels for all parameters, as well as the duration of each division for corresponding zoom levels: Using UP will toggle the available zoom levels for each parameter. -
Page 10: Main Menu Functions Chart
MAIN MENU FUNCTIONS CHART FUNCTION DIRECTIONS By default, the audible alarm for CO levels exceeding set level, is set to OFF. Once ALARM is selected (by pressing ENTER), use either UP or DOWN to ALARM toggle the selection from ON to OFF or vice versa. Press ENTER one more time to confirm. -
Page 11: Specifications
SPECIFICATIONS Typical test conditions, unless otherwise specified: Ambient Temp =73+/-3°F, RH=50%-70%, Altitude=0-100 meters MEASUREMENT SPECIFICATION Operating Temperature 32°F to 122°F (0°C to 50°C) Storage Temperature -4°F to 140°F (-20°C to 60°C) Operating & Storage RH 0-95%, non-condensing Measurement Accuracy at 0-3000 ppm ±50 ppm or ±5% of reading, whichever is greater Accuracy over 3000 ppm ±7%... -
Page 12: Warranty
Hydrofarm will, at our discretion, repair or replace the APCEMDL covered under this warranty if it is returned to the original place of purchase. To request warranty service, please return the APCEMDL, with original sales receipt and original packaging, to your place of purchase.
