Additional manual for Shuttle RG
この度は Shuttle RG [M] をお買い上げ頂き有り難
う御座います。
以下のページはこの説明書を参考にして組み立て
て下さる様、よろしくお願い致します。
Shuttle RG 取扱説明書
Instruction manual
アッパーフレームの組立
2
Assembling the upper frame
ロアーフレームの組立
5
Assembling the lower frame
ウォッシュアウトの組立
12
Assembling the wash-ou
ウォッシュアウト・スワッシュプレートの組立
14
Combination of the wash-out and swash plate
テールギヤの組立
15
Assembling the tail gear
リンケージの取付
21
Installation of the linkage

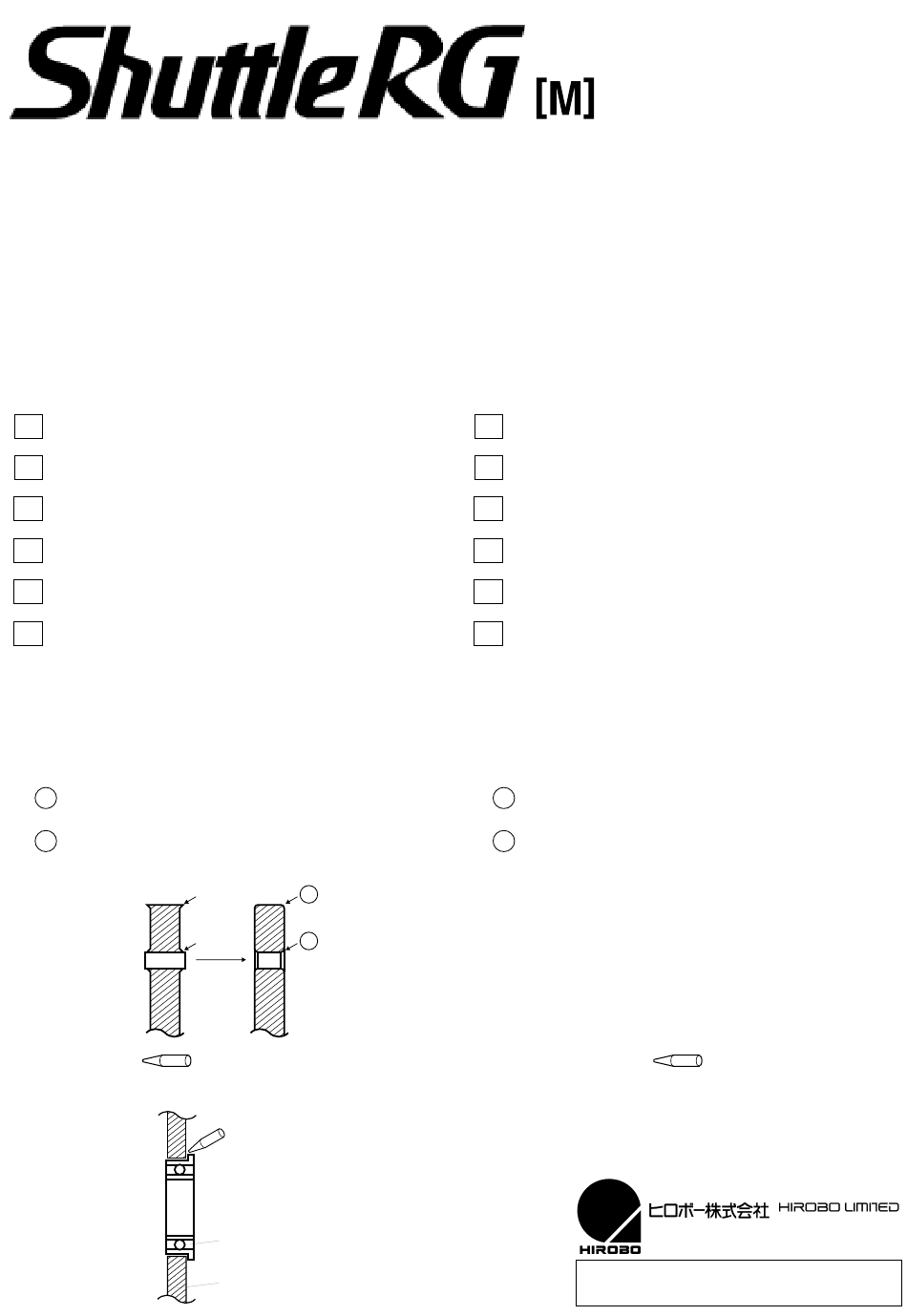

● カーボンフレームの面取り加工
カーボンフレームは、 カットや穴開け加工の際にバリ等
が出て、面が下図の様になっています。
1 カーボンフレームの外周を紙ヤスリで軽く面取りし
ます。
2 ベアリングホルダー、クロスメンバー等の取付け位
置を紙ヤスリで面取りします。
● ベアリングに
瞬 間
瞬間接着剤を付け、 内輪に付かない様十分に注意して下
さい。
バリ
1
Burrs
バリ
2
Burrs
 マークのある場合は、図の位置へ
ベア リ ン グ
Bearing
カーボン フ レーム
Carbon frame
Thank you for purchasing the Shuttle RG [M].
For assembling the following parts, please follow this
additional instruction manual.
本書(追加説明書)
This additional instruction manual
アッパーフレームの組立
P 12,13 → 2
Assembling the upper frame
ロアーフレームの組立
P 15
→ 5
Assembling the lower frame
ウォッシュアウトの組立
P 22
→ 12
Assembling the wash-outt
ウォッシュアウト・スワッシュプレートの組立
P 23
→ 14
Combination of the wash-out and swash plate
テールギヤの組立
P 24
→ 15
Assembling the tail gear
リンケージの取付
P 41
→ 21
Installation of the linkage
追加パーツリスト
Additional parts list
● Chamfering of the carbon frames
Burrs are produced in cutting and perforating the carbon frames.
The bevels are as is shown in the figure below.
1 Chamfer lightly the outer circumference of the carbon
frame with fine sand paper, etc.
2 Chamfer the positions for attaching a bearing holder, a
cross member, etc. with fine sand paper.
● When the bearing has
portions as shown while using extreme care so as not to let the
adhesive reach the inside.
1
追加説明書
 mark, apply adhesive to the
瞬 間
ひら
技術で拓く真心のクオリティー
530-214 MOTOYAMA-CHO,HUCHU-SHI,
広島県府中市本山町530-214 〒726-8614
HIROSHIMA-PREF.,JAPAN.  〒726-8614
TEL:(0847)41-6780(代)  FAX:41-8902
TEL:(0847)41-6780 FAX:41-8902
モ デ ル 事 業 部
MODEL DIVISION
TEL:(0847)41-7400(代)  FAX:41-9361
TEL:(0847)41-7400 FAX:41-9361
平成 11 年 7 月
First Printing
[
M
]
P 3,4
P 5
P 6
P 7,8
P 9
P 10
P 12
初版発行
7, 1999

Advertisement

loading
Need help?

Need help?

Do you have a question about the Shuttle RG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hirobo Shuttle RG

  • Page 1 追加説明書 Additional manual for Shuttle RG この度は Shuttle RG [M] をお買い上げ頂き有り難 Thank you for purchasing the Shuttle RG [M]. う御座います。 以下のページはこの説明書を参考にして組み立て For assembling the following parts, please follow this て下さる様、よろしくお願い致します。 additional instruction manual. Shuttle RG 取扱説明書 本書(追加説明書) Instruction manual This additional instruction manual アッパーフレームの組立 アッパーフレームの組立 P 12,13 → 2 P 3,4 Assembling the upper frame Assembling the upper frame ロアーフレームの組立 ロアーフレームの組立 P 15 → 5 P 5 Assembling the lower frame Assembling the lower frame ウォッシュアウトの組立 ウォッシュアウトの組立 P 22 → 12 P 6 Assembling the wash-ou Assembling the wash-outt ウォッシュアウト・スワッシュプレートの組立 ウォッシュアウト・スワッシュプレートの組立 P 23 →...
  • Page 2  警 告 WARNING フライト前には必ず各部の点検を行いましょう。 Please be sure to inspect every parts before flight. 1 ・ 組立てたばかりの機体や高回転部(ローターヘッド部、マスト部、エンジン部、テール部等)は、 ネジが緩みやすいので、フライト前に毎回点検・増締めを行って下さい。 2 ・ 部品の損傷等、異常がないかも必ずご確認下さい。 3 ・ 安全の為、取扱説明書は必ずお読み下さい。 1 ・ Screw of just assembled helicopter, and on the high rotating area (Roter head, Main mast, Engine, Tail) are tend to become loose. Please be sure to check and re-tighten those before every flight. 2 ・ Please confirm that there is nothing wrong with the parts. 3 ・ For your safety, please be sure to read the instruction manual carefully.
  • Page 3 アッパーフレームの組立 Assembling the upper frame STEP 1 M3×26 ク ロス メ ンバー....4 M3×26 cross member M3 ナイ ロ ンナ ッ ト φ 19 Brg. ホルダー (Brg. 圧入済) φ 3× φ 8×0.5FW M3 nylon nut φ 19 Brg. holder (Brg. press-fit) テールブームホルダー エレベータ ー レバー Tail boom holder Elevator lever Brg.  φ 6×10×3F ......2 M3×6 ボタ ンボル ト M3×35CSは仮組みに...
  • Page 4 STEP 2 注 :   コ レク ト ピ ッ チ レバー (L) のベア リ ン グの向き Note:  Direction of collective pitch lever (L) bearing φ 6 シ ャ フ ト ス ト ッ パー ....2 Brg.  φ 4× φ 8×3F コ レク ト ピ ッ チ レバー (R) φ...
  • Page 5 燃料タンクの組立 Assembling the fuel tank STEP 1 タ ン ク防振ゴム 燃料タ ン ク Tank vibration  Fuel tank preventing rubber φ 5× φ 10×1FW ......1 シ リ コ ンパイ プ  φ 3×5×150 Silicon pipe 燃料タ ン ク ニ ッ プル φ 5× φ 12×0.8FW ......1 Fuel tank nipple 燃料タ...
  • Page 6 ウォッシュアウトの組立 Assembling the wash-out STEP 1 ピボ ッ ト ボル ト  (E) ......2 Pivot bolt (E) ウ ォ ッ シュアウ ト Assy Wash-out Assy ピボ ッ ト ボル ト (E) Pivot bolt (E) ピボ ッ ト ボル ト (E) Pivot bolt (E) スワッシュプレートの組立 Assembling the swash plate STEP 1 EX ...
  • Page 7 ウォッシュアウト / スワッシュプレートの組立 Combination of the wash-out and swash plate STEP 1 M3×12 ボタ ンボル ト....1 M3×12 button bolt M3×18CS ......... 1 M3 ナイ ロ ンナ ッ ト M3 nylon nut M3 ナイ ロ ンナ ッ ト......1 M3 nylon nut M3×18CS ラ ジアス ブロ ッ ク Radius block M3×3SS ウ...
  • Page 8 セン タ ーハブ 図 -1 Center hub Fig.1 ラ ジアス ブロ ッ ク Radius block この面を 合わせる ス ラ イ ドブロ ッ ク Align here Slide block ピ ン 図 -2 ピ ッ チハイ の時 Fig.2 When pitch is High アジ ャス ト ロ ッ ド Adjust rod 長さ調節...
  • Page 9 テールギヤの組立 Assembling the tail gear STEP 1 注意 Caution M3 ナイ ロ ンナ ッ ト......1 テール ピ ッ チ レバー台 M3 ナイ ロ ンナ ッ ト M3×6 ボタ ンボル ト M3 nylon nut Tail pitch lever stand M3 nylon nut M3×6 button bolt タイ ミ ングベル トは、 折り曲げたり、 キズを つけたり しないで く ださい。 破損の原因 テールユニ...
  • Page 10 STEP 10 ラダー       M2×6CS ........1 ・  ラダーコントロールロッドをガイ  ・  Pass the rudder control rod through the  Rudder   ドと水平尾翼尾翼ブラケット外を    guide and out of the bracket, and attach    通して先端にM2ロッドエンドを取    the M2 rod end to the rudder control    り付けます。   rod. EX  φ 5 ボール ......1 EX  φ 5 ball M2 ナ ッ ト ........1 M2 nut ガイ...
  • Page 11 パーツリスト PARTS LIST 0402-719 0402-729 2532-002 0402-720 0402-730 2531-001 2505-006 0402-726 0402-721 0402-727 0402-724 2500-063 2521-049 0402-731 2506-019 0402-594 0402-600 2511-002 2532-003 2531-002 0404-023 0402-595 2530-005 0402-026 2505-001 2506-021 0402-731 0404-567 2523-015 0402-718 0402-621 0402-722...
  • Page 12 コード No. 品名 入数 価格(円) 備考 Cord No. Name of Parts Q'ty Price Remarks SE メインブレード L=550 (FRP) 一式 7,500 オプション 0402-621 SE Main blade L=550 (FRP) 1set Option SE ロングテールドライブセット (マイクロピッチ) 一式 8,500 SE テールドライブシャフト、SE テールプーリー 35T、M3 × 5ss 0402-717 SE タイミングベルト 782-4.8、SE テールドライブプーリー 20T 付 SE Long tail drive set (micro-pitch belt) 1set With SE Tail drive shaft, SE Tail pully 35T, M3 × 5ss SE Timing belt 782-4.8, SE Tail drive pully 20T テールブームパイプ L=695 (カーボン) 5,000...
