Art. no. 96.06.5.0705/05.07
http://www.henkovac.nl, e-mail: info@henkovac.nl.
User manual
COMPACT ECO-RANGE
Manufactured by:
Het Sterrenbeeld 36, 5215 ML 's-Hertogenbosch The Netherlands
P.O.Box 2261, 5202 CG 's-Hertogenbosch The Netherlands
tel: +31(0)73-6271271, fax: +31(0)73-6271200
http://www.hfe.nl, e-mail:
info@hfe.nl
Advertisement
Table of Contents
Related Manuals for Henkovac COMPACT ECO Series
Summary of Contents for Henkovac COMPACT ECO Series

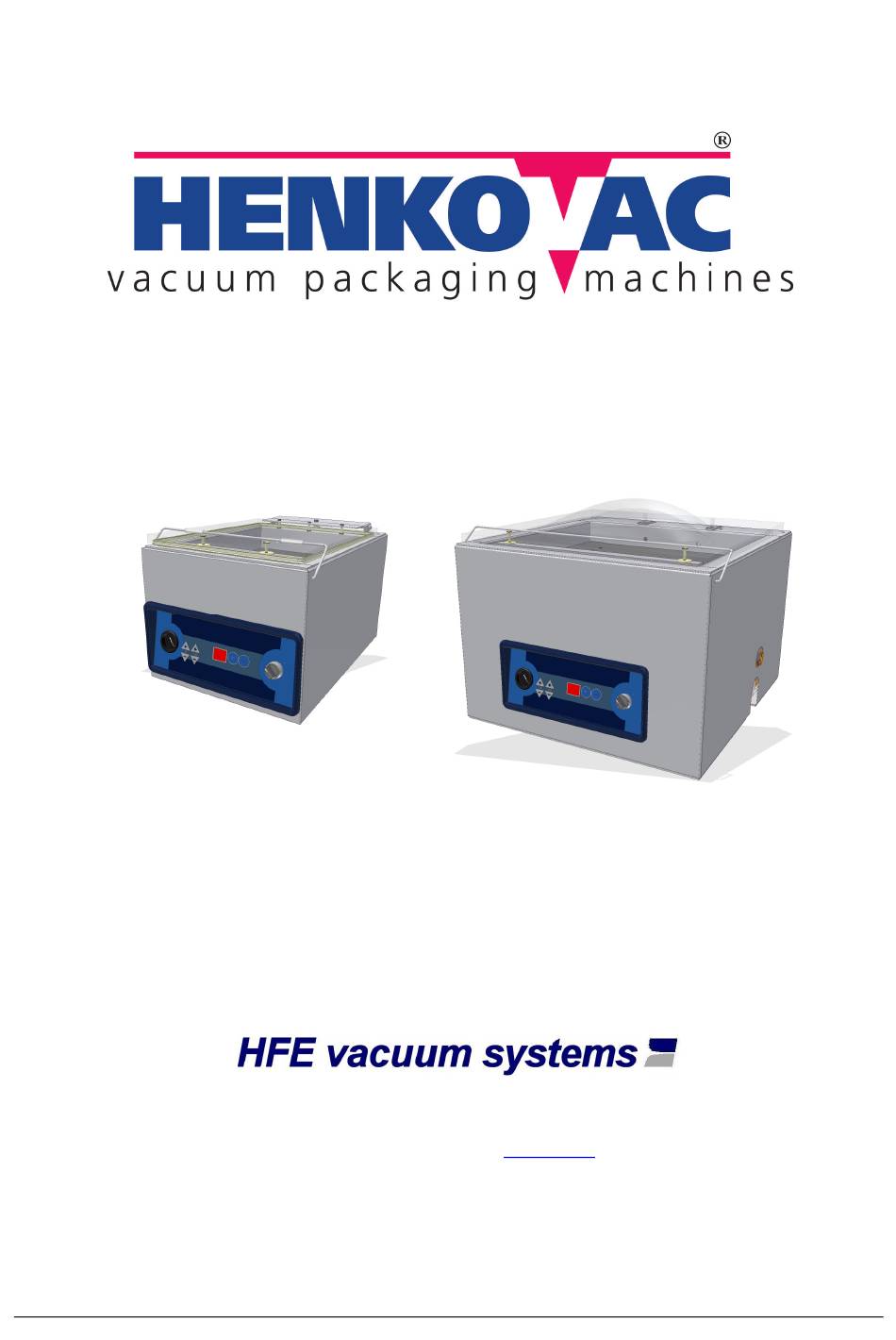

- Page 1 Art. no. 96.06.5.0705/05.07 http://www.henkovac.nl, e-mail: info@henkovac.nl. User manual COMPACT ECO-RANGE Manufactured by: Het Sterrenbeeld 36, 5215 ML ‘s-Hertogenbosch The Netherlands P.O.Box 2261, 5202 CG ’s-Hertogenbosch The Netherlands tel: +31(0)73-6271271, fax: +31(0)73-6271200 http://www.hfe.nl, e-mail: info@hfe.nl...
- Page 2 This document is applicable to the indicated models of the Henkovac packing machine in the version supplied. The manufacturer therefore does accept any liability for any form of damage or injury resulting from deviating from the specifications of these machines as supplied to you.
-
Page 3: Table Of Contents
Contents CONTENTS SAFETY AND WARNING NOTICES ....................4 1 INSTALLATION ........................... 5 2 OPERATION ..........................6 2.1 Warm up ............................... 7 2.2 Vacuuming and Sealing........................7 2.2.1 Vacuuming..............................7 2.2.2 Sealing ................................ 7 2.3 Packing ..............................7 3 MAINTENANCE........................... 8 3.1 Warnings............................... -
Page 4: Safety And Warning Notices
Safety and warning notices SAFETY AND WARNING NOTICES The manufacturer accepts no liability whatsoever for damage or injury caused by not (strictly) following the safety directions and instructions in this manual, or carelessness during the installation, use, maintenance and repair of the machines identified on the front of this document and any accompanying options. The owner of the machine is responsible at all times for observing the locally applicable safety regulations and guidelines. -
Page 5: Installation
Installation 1 INSTALLATION The vacuum machines are solid and safe. For your own safety and optimal maintenance of the machine, the following instructions must be obeyed. Make sure the machine is level and has been placed on a solid surface. •... -
Page 6: Operation
Operation 2 OPERATION The Compact is a machine that functions automatically. When the filled vacuum pouch has been put in the vacuum chamber and the lid is closed the operation will start automatically. The machine will automatically follow the entered program from vacuuming to sealing. After the sealing has been completed the vacuum pump will turn off, the chamber aerates and the lid will automatically open. -
Page 7: Warm Up
Operation 2.1 Warm up If the machine has been switched off for a period of time we recommend that the machine is “warmed up”. The machine vacuums a certain time, aerates a short time and then starts vacuuming again. These cycles will be repeated for certain times. Turn on the machine with the Off/On switch (G) and press button (E). -
Page 8: Maintenance
Maintenance 3 MAINTENANCE Regular and thorough maintenance prevents breakdowns, prolongs the machine’s operational life and guarantees optimum hygiene. 3.1 Warnings Always unplug the machine when carrying out maintenance or repairs. • Never use high-pressure water to clean the machine as this can cause irreparable damage to the •... -
Page 9: Oil
Maintenance 3.6 Oil Check oil: 1 time a week. If necessary fill till the correct level. Replace oil By normal use after 160 running hours; by incidental use at least 1 time a year. Fig. 3-1 COMPACT ECO MINI Description Oil filler plug Oil gauge Oil drain plug... -
Page 10: Seal Bar
Seal bar 4 SEAL BAR Clean the sealing and counter bars daily to ensure optimum sealing of the packaging material. Use • a dry cloth for this purpose. Check the condition of the sealing wires regularly. They should be free of kinks and should be •... -
Page 11: Replacing The Sealing Wires
Seal bar 4.2 Replacing the seal wire Ensure that the two tension spring (2) and screw (3) assembly are in place in either end of the seal bar. Fold over 50mm of the end of the new seal wire (6), push this end into the slot (underneath the seal bar) so that it extends beyond the (hole) position where the electrical pin contacts in the chamber fit. -
Page 12: Technical Data
Technical data 5 TECHNICAL DATA Data per machine Type COMPACT Gastrovac Gastrovac MINI ECO MAXI ECO PRO ECO Size and weight of the machine Height Width Depth Weight Size and weight of the packed machine Length Width Depth Weight Size of the vacuum chamber Length Width Depth... - Page 13 Technical data General data Maximum leakage 1 mbar/s Recommend oil Ambient temperature VM 068 5 - 12º C VM 100 12 - 30º C VS 100 or VC 101 30 - 40º C Electrical connections Tension, power, frequency See the identification Maximum permissible voltage variance - 10% to + 10% Ambient conditions...
-
Page 14: Problems And Solutions
Problems and solutions 6 PROBLEMS AND SOLUTIONS If the machine indicates a fault, use the following table to check whether you can solve the problem. Problem Cause Solution Machine does not work. • The plug is not inserted in the •... - Page 15 Het Sterrenbeeld 36, 5215 ML 's-Hertogenbosch The Netherlands, declare totally on our own responsibility that the products: Henkovac Vacuum packing machines: Compact MINI, Compact MAXI, Compact Gastrovac and Compact Gastrovac Pro. to which this declaration refers, comply with the following standards: EN 60204-1: 1997;...
