INSTALLATION INSTRUCTIONS
Product
7160-0882

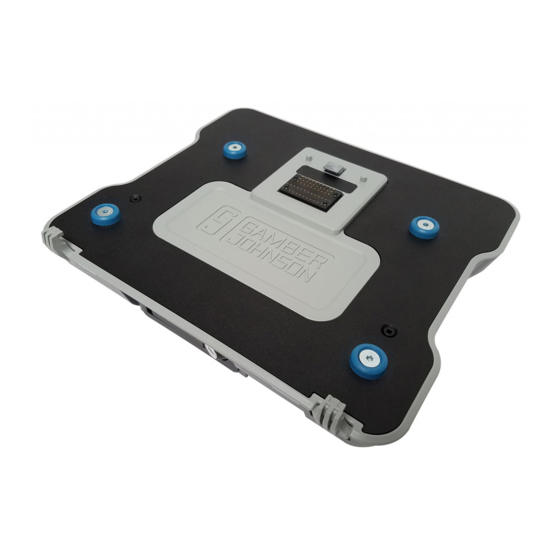

Dell Latitude Rugged Laptop Docking Station
This instruction sheet is for the Dell Rugged Laptop docking station only. For instructions
on features, set-up, and operation of the Dell Rugged computer, please refer to the
manual provided by Dell with the computer.
This docking station works with
1.
Dell 12" Latitude Rugged Extreme 2-in-1 Laptop
2.
Dell 14" Rugged Laptop
3.
Dell 14" Rugged Extreme Laptop
4.
Dell 14" Rugged Extreme Business Laptop
See page 4 for set-up instructions.
This instruction sheet is for the following products:
Item No. 7160-0882-00 Dock - Dell Rugged Laptop No RF
Item No. 7160-0882-03 Dock - Dell Rugged Laptop Tri RF
Gamber Johnson recommends the following power supply to power the
docking station. They can be ordered from Gamber-Johnson seperatley.
7300-0468 - Auto (11-16 Vdc Input) - Available with the docking station as KIT
7170-0551-00 (Non-RF) and 7170-0551-03 (Tri-RF)
Note: *Use the hardware provided in the hardware bag for attaching the dock to the
mounting surface.
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Revision
Rev. F
Printing Spec: PS-001
Form
INST-775
1 / 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gamber Johnson 7160-0882
Summary of Contents for Gamber Johnson 7160-0882
- Page 1 See page 4 for set-up instructions. This instruction sheet is for the following products: Item No. 7160-0882-00 Dock - Dell Rugged Laptop No RF Item No. 7160-0882-03 Dock - Dell Rugged Laptop Tri RF Gamber Johnson recommends the following power supply to power the docking station.
- Page 2 PRE-INSTALLATION RECOMMENDATIONS Conduct a "Bench Test" Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and software issues are resolved prior to installation: Make sure the computer is operational by itself. Insert computer into the docking station and verify that the computer is operating in the dock.
- Page 3 DELL RUGGED DOCKING STATION FEATURE IDENTIFICATION Docking Connector TRI RF Connector (Optional) Adjustable Front Hooks Rear Hook Recessed Button Lockable Latch (For Front Hook Adjustment) Vesa 75 mm hole pattern (Use 1/4-20 hardware bag for mounting.) DO NOT OVER-TORQUE BOLTS Recommended Torque = 25 in/lbs ANT 1 ANT 2...
- Page 4 DELL RUGGED DOCKING STATION ADJUSTABILITY This docking station works with Dell 12" Latitude Rugged Extreme Convertible Laptop Dell 14" Rugged Laptop Dell 14" Rugged Extreme Laptop Dell 14" Rugged Extreme Business Laptop Follow the instructions below to adjust the front hooks to accomdate the laptop. Latitude 7214 - 12"...
- Page 5 DOCKING THE COMPUTER 1. If the dock is in the closed position, push the latch button to open the latch. 2. Insert the front of the DELL laptop under the front hooks on the dock, such that the tabs on hook goes into the pockets of the laptop.
- Page 6 Screen Support Installation Screen supports are recommended on all laptop dock/cradles in high-vibration environments. Screen support can be purchased from www.GamberJohnson.com Part Number: 7110-1213 Screen Support Mounting Locations Use #6-32 screws from screen support hardware bag to attach screen support to the left or right mounting location, do not over-torque screws.
- Page 7 Regulatory Certification Information Regulatory Model #: 7160-0882 GJ Model #'s & Description: 7160-0882-00 Dock - DELL RUGGED LATITUDE LAPTOP - NO RF 7160-0882-03 Dock - DELL RUGGED LATITUDE LAPTOP - TRI RF Certifications: • EN 55032: 2012/AC: 2013 Class A •...
