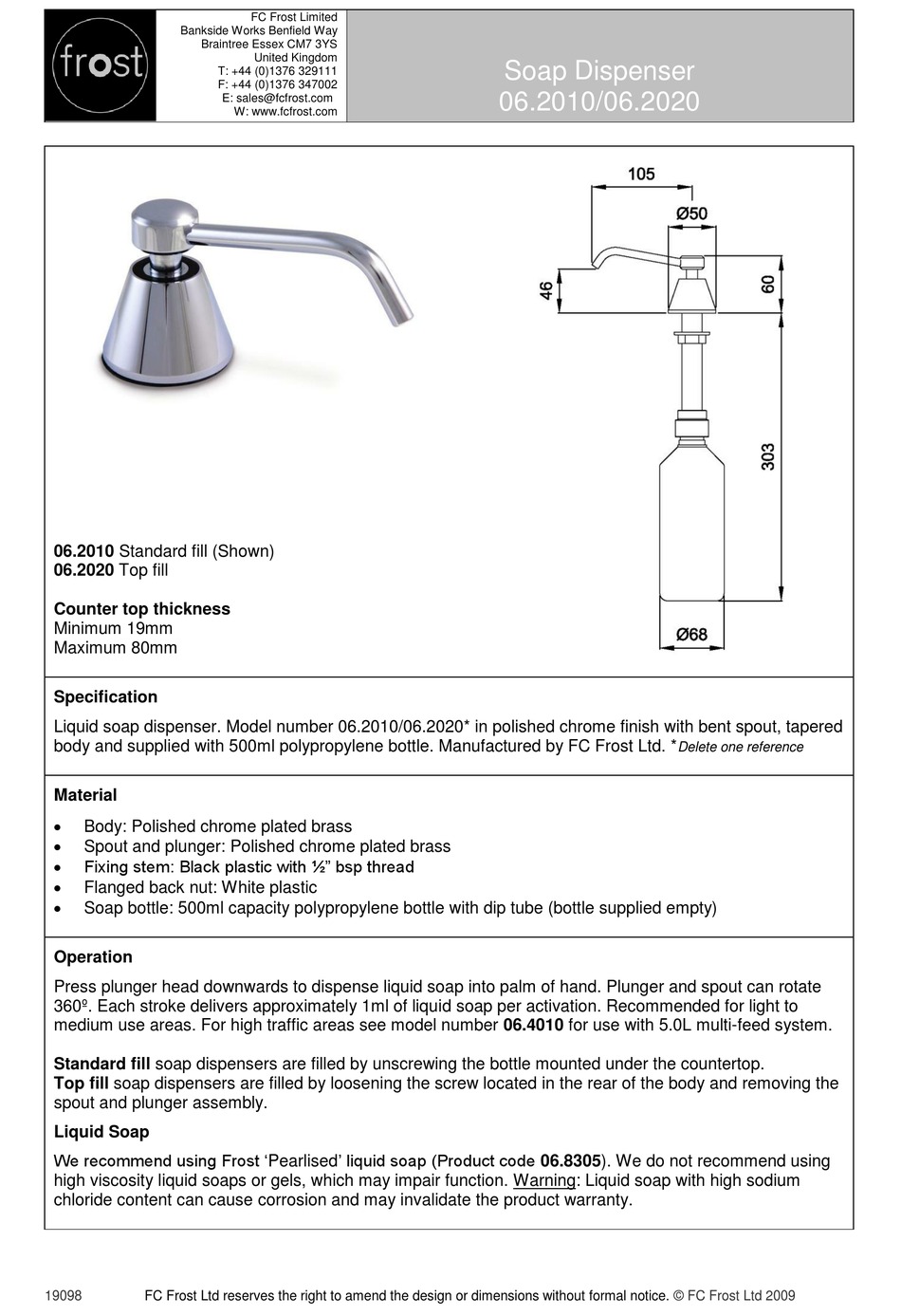

FROST 06.2010 Quick Start Manual

Bankside Works Benfield Way
Braintree Essex CM7 3YS
06.2010 Standard fill (Shown)
06.2020 Top fill
Counter top thickness
Minimum 19mm
Maximum 80mm

Specification

Liquid soap dispenser. Model number 06.2010/06.2020* in polished chrome finish with bent spout, tapered
body and supplied with 500ml polypropylene bottle. Manufactured by FC Frost Ltd. *

Material


Body: Polished chrome plated brass

Spout and plunger: Polished chrome plated brass

Fixing stem: Black plastic with ½" bsp thread

Flanged back nut: White plastic

Soap bottle: 500ml capacity polypropylene bottle with dip tube (bottle supplied empty)

Operation

Press plunger head downwards to dispense liquid soap into palm of hand. Plunger and spout can rotate
360º. Each stroke delivers approximately 1ml of liquid soap per activation. Recommended for light to
medium use areas. For high traffic areas see model number 06.4010 for use with 5.0L multi-feed system.
Standard fill soap dispensers are filled by unscrewing the bottle mounted under the countertop.
Top fill soap dispensers are filled by loosening the screw located in the rear of the body and removing the
spout and plunger assembly.

Liquid Soap

We recommend using Frost 'Pearlised' liquid soap (Product code 06.8305). We do not recommend using
high viscosity liquid soaps or gels, which may impair function. Warning: Liquid soap with high sodium
chloride content can cause corrosion and may invalidate the product warranty.
19098 FC Frost Ltd reserves the right to amend the design or dimensions without formal notice.
FC Frost Limited
United Kingdom
T: +44 (0)1376 329111
F: +44 (0)1376 347002
E: sales@fcfrost.com
W: www.fcfrost.com
Soap Dispenser
06.2010/06.2020
Delete one reference
© FC Frost Ltd 2009
