ELGA VEOLIA PURELAB Operator's Manual

Water purification
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
Operator Manual
MANU41319 VERSION D 08/20
Part No. LA824
WATER PURIFICATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PURELAB and is the answer not in the manual?

Questions and answers

Summary of Contents for ELGA VEOLIA PURELAB

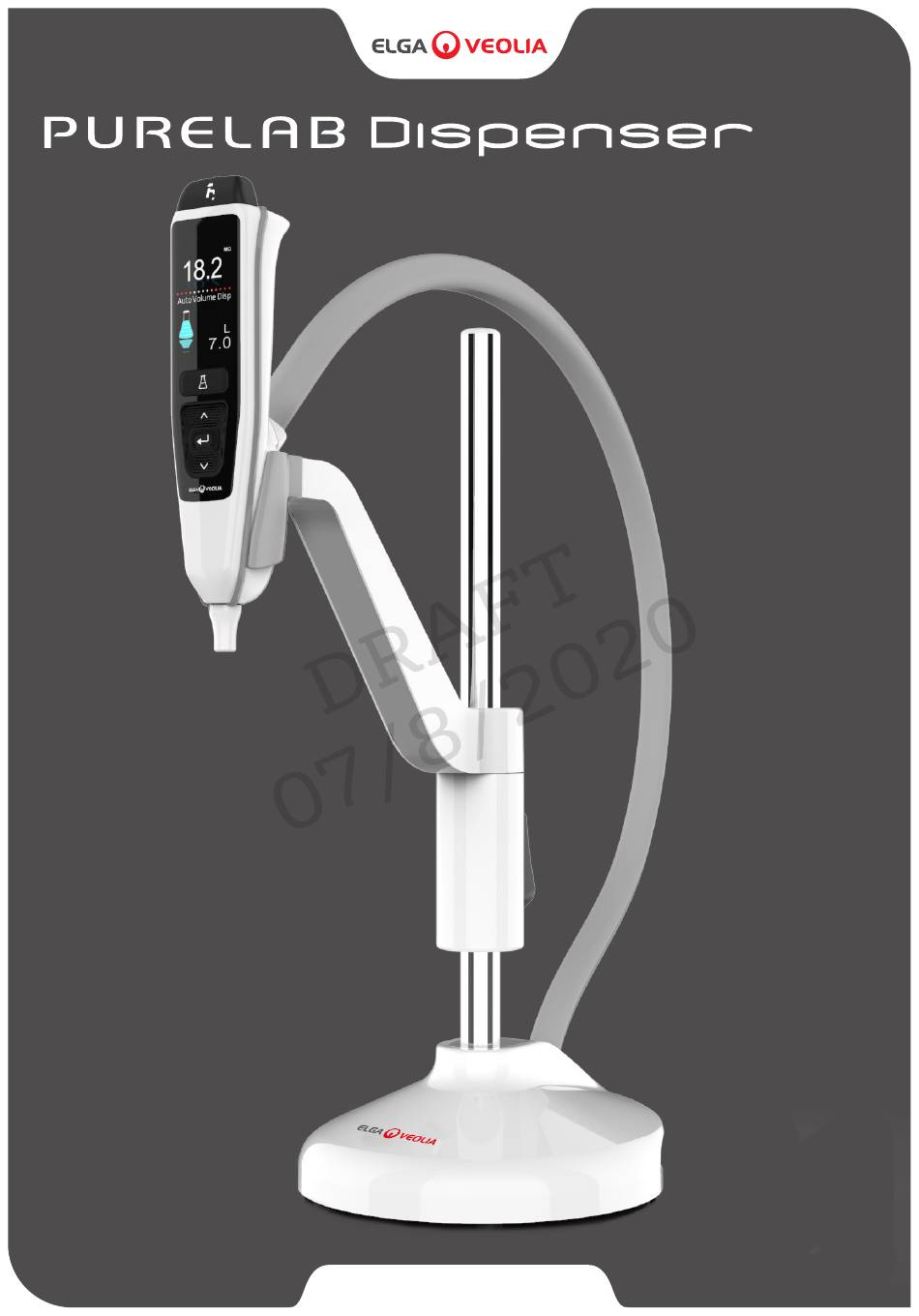

  • Page 1 ® Operator Manual MANU41319 VERSION D 08/20 Part No. LA824 WATER PURIFICATION...
  • Page 2 YOUR GUIDE TO THE CHORUS...

  • Page 3: Table Of Contents

    Copyright Note The information contained in this document is the property of VWS (UK) Ltd, trading as ELGA VEOLIA , and is supplied without liability for errors or omissions. No part of this document may be reproduced or used except as authorized by contract or other written permission from VWS (UK) Ltd.
  • Page 4 PURELAB Dispenser is not designed for use in fume cupboards where chemicals could damage the product. ® Caution! Installed on a flat level worktop, PURELAB Dispenser can also be securely fitted to a worktop using the ® mounting bracket provided, please see Quick Start Guide - section 2 for details.
  • Page 5 HEALTH AND SAFETY NOTICES SUPPLIED PARTS Items not supplied COMMS Tape Measure Phillips Screw Driver Plastic Pipe Cutters EN388 & EN374 Power Ø3mm Drill Tube Keys EN14126 Goggles Handset Labels Drill Bit...

  • Page 6: Quick Start Guide

    QUICK START GUIDE ENGLISH WELCOME Thank you for purchasing a PURELAB Dispenser, please read the Health and Safety notice before proceeding with this installation. ® HEALTH & SAFETY Please follow the safety information detailed in the front of the Quick Start Guide. Failure to observe these instructions could result in damage to the equipment and associated equipment resulting injury or death.
  • Page 7 SYSTEM CONFIGURATION - PURELAB QUEST Example 1: 1 X PURELAB Quest RO/DI/UV or RO/DI - 1 X PURELAB Dispenser LA824 (Max 1 Dispenser) - LA648 Boost Pump ® ® Quest Port 1: Feedwater Inlet Dispenser Port 1: Inlet Quest Port 2: Overflow...
  • Page 8 ® ® Example 1: 2 X PURELAB Chorus 3 RO or 2 X PURELAB Chorus 2 RO/DI - 1 X PURELAB Chorus 1 - 3 X PURELAB Dispensers LA824 (Max 4 Dispensers) - LA759 60L Reservoir or LA760 100L Reservoir Chorus 3 RO or Chorus 2 RO/DI fills an external reservoir with purified Type 3 or Type 2 water, which then feeds a Chorus 1 to produce Type 1 water.
  • Page 9 ® ® Example 3: 1 X PURELAB Chorus 3 RO or 1 X PURELAB Chorus 2 RO/DI - 1 X PURELAB Chorus 1 - 1 X PURELAB Chorus Halo Dispenser LA754 or ® LA755 - 1 X PURELAB Dispenser LA824 - LA757 15L Reservoir or LA758 30L Reservoir...
  • Page 10 ® ® Example 5: 1 X PURELAB Chorus 3 RO or 1 X PURELAB Chorus 2 RO/DI - 1 X PURELAB Chorus 1 - 1 X PURELAB Chorus Halo Dispenser LA754 or ® LA755 or LA756 - 1 X PURELAB Dispenser LA824 - LA757 15L Reservoir or LA758 30L Reservoir...
  • Page 11 SYSTEM CONFIGURATION - PURELAB CHORUS 1 COMPLETE AND 2+ NON EDI Example 1: 1 X PURELAB Chorus 1 Complete or PURELAB Chorus 2+ (Non EDI) - 3 X PURELAB Dispensers LA824 (Max 3 Dispensers) - ® ® ® LA759 60L Reservoir or LA760 100L Reservoir Chorus 1 Complete and 2+ recirculate purified water throught the reservoir for repeated exposure to the purifying technologies.
  • Page 12 SYSTEM CONFIGURATION - PURELAB CHORUS 1 COMPLETE AND 2+ NON EDI Example 2: 1 X PURELAB Chorus 1 Complete or PURELAB Chorus 2+ (Non EDI) - 1 X PURELAB Dispenser LA824 - ® ® ® LA757 15L Reservoir or LA758 30L Reservoir - 2 X PURELAB Chorus Halo Dispenser LA754 or LA755 or LA756 ®...
  • Page 13 SYSTEM CONFIGURATION - PURELAB CHORUS 2+ EDI ® Example 1: 1 X PURELAB Chorus 2+ (EDI) - 3 X PURELAB Dispensers (Max 3 Dispensers) - LA759 60L Reservoir or LA760 100L Reservoir ® Chorus 2+ EDI recirculate purified water throught the reservoir for repeated exposure to the purifying technologies.
  • Page 14 SYSTEM CONFIGURATION - PURELAB CHORUS 2+ EDI Example 2: 1 X PURELAB Chorus 2+ (EDI) - 1 X PURELAB Dispenser LA824 - LA757 15L Reservoir or LA758 30L Reservoir - ® ® 2 X PURELAB Chorus Halo Dispenser LA754 or LA755 or LA756 ®...
  • Page 15 Press and hold the height adjustment button to slide d) When you have found the perfect height, release the hight adjustment the handset arm up and down. (Fig.3) button to lock into position. (Fig.4) ® PURELAB Dispenser Operator Manual MANU41319 Version D 08/20 Page 10...
  • Page 16 EN388 & EN374 Goggles Ø3mm REMOVING THE SUPPLIED WORKTOP MOUNTING BRACKET (Fig.6) a) Undo the fixing screws screw from the base of the PURELAB Dispenser to remove the mounting bracket. (Fig.6) ® PURELAB Dispenser Operator Manual MANU41319 Version D 08/20 Page 11...
  • Page 17 Mark and drill two holes into the wooden worktop to a depth of a) Reassemble the mounting bracket back onto the base 30mm using an Ø3mm pilot drill bit. (Fig.7) as shown above. (Fig.8) FIXING THE PURELAB DISPENSER TO THE WORKTOP Screw cap Fixing Screw Screw cap washer (Fig.9)
  • Page 18 Using the tube supplied, firmly push one end securely into the (Fig.12) Port 5 water Return connection. Use the flow bends provided to mould the tube into position. (Fig.13) ® PURELAB Dispenser Operator Manual MANU41319 Version D 08/20 Page 13...
  • Page 19 Link the power cables as shown above, Power supply connections may vary depending on your system configuration. (Fig.15) Caution! Only use the power supply provided by ELGA VEOLIA. (Power supply is supplied with main product) ® PURELAB Dispenser Operator Manual MANU41319 Version D 08/20 Page 14...
  • Page 20 Type 1 or Type 2 system configuration reservoir to fill and reach full purity you can dispense purified water from the before dispensing any water. (Fig.19) PURELAB Dispenser. (Fig.20) (Water Purity Alarm will be active (Fig.18) during the commissioning) a) For new system system configurations, follow the on screen commissioning instructions.

  • Page 21: Manual Introduction

    Quick Reference Guide shows you 'day to day' functions while using the PURELAB® Dispenser. 1.5 Environment PURELAB® Dispenser should be installed on a flat, level surface, in a clean, dry environment it can also be mounted to a worktop using the purpose designed bracket, See Quick Start Guide section 2 for details 1.6 Commissioning...

  • Page 22: Guide To Your Purelab Dispenser

    2. GUIDE TO YOUR PURELAB DISPENSER YOUR GUIDE TO THE CHORUS LCD Display Flexible Screen Dispenser Tube Dispenser Handset Handset Cradle Dispense Button Water Purity Display Scrolling information bar - bar indicating the status. Height Adjustment Button Auto Volume or...

  • Page 23: Main Display Settings And Button Operation

    Auto Volume Dispense button will initiate a reservoir refill cycle. Accept Button Press the accept button to enter. Press and hold the accept button to enter the main menu options tabs. ® PURELAB Dispenser Operator Manual MANU41319 Version D 08/20 Page 18...

  • Page 24: Product Consumables

    REFER TO OPERATING INSTRUCTIONS SU REFERER AU MANUEL D'OPERATION IN DER BEDIENUNGSANLEITUNG NACHSEHEN Model number ELGA Veolia is the global laboratory water brand of Tel: +44 (0) 203 567 7300, Web: www.elgalabwater.com Serial number MADE IN THE UK Enter the model and serial number into the online form at: https://www.elgalabwater.com/support/register-a-product...

  • Page 25: Quick Reference Guide

    Press Auto Volume dispense Press up and down buttons, To confirm press dispense button button at anytime to open this to scroll throught the volumes. to start dispensing the water. feature. ® PURELAB Dispenser Operator Manual MANU41319 Version D 08/20 Page 20...

  • Page 26: Deactivating Auto Volume Dispense

    Press and hold accept button for 2 seconds to enter Press up and down buttons to scoll throught the the Main Menu. main menu options tabs, press accept button to confirm your selection. ® PURELAB Dispenser Operator Manual MANU41319 Version D 08/20 Page 21...

  • Page 27: Maintenance

    Step 2 - Unpacking the LC134 / LC145 / LC197 Point-Of-Use Filter and Installing 1. Unpack the new POU filter from it's outer and inner packaging, remove the cap (Fig.3) 2. Coupler is not required for PURELAB ® Dispenser, screw in the Point-of-Use filter (Fig.4)

  • Page 28: Customize Operation

    ON (Fig.4) 5. Software update is now complete, normal operation will resume (Fig.5) USB Port on the Product software version number main product location (example displayed) ® PURELAB Dispenser Operator Manual MANU41319 Version D 08/20 Page 23...

  • Page 29: Troubleshooting

    1. Check the mesh feedwater inlet filter for blockages. (See main product operator manual for instructions) Reduced Dispensing Flow Rate 2. Replace the Point-Of-Use Filter. 3. Check the feedwater valves are fully opened. ® PURELAB Dispenser Operator Manual MANU41319 Version D 08/20 Page 24...
  • Page 30 (follow the system configurations - Quick Start Guide) System configuration error 2. Update your main product software via the USB port. (See Customize Operation - section 9 Customize Operation) ® PURELAB Dispenser Operator Manual MANU41319 Version D 08/20 Page 25...

  • Page 31: Technical Specifications

    10. TECHNICAL SPECIFICATIONS PURELAB Dispenser - LA824 Dimensions and Weights 264mm 375mm Dispatch Weight 7.7 KG Operational Weight 4.5 KG Installation Free-standing on a worktop or secured to a worktop using the mounting bracket provided (see quick start guide for details)

  • Page 32: Warranty / Conditions Of Sale

    11. WARRANTY / CONDITIONS OF SALE YOUR GUIDE TO THE CHORUS ELGA VEOLIA® is a trading name of VWS (UK) Ltd. General Limited Warranty VWS (UK) Ltd. warrants the products manufactured by it against defects in materials and workmanship when used in accordance with applicable instructions for a period of one year from the date of shipment for the products.
  • Page 34 ELGA VEOLIA is the global laboratory water brand name of Veolia. The information contained in this document is the property of VWS (UK) Ltd, trading as ELGA Veolia, and is supplied without liability for errors or omissions. © VWS (UK) Ltd.
  • Page 35 ® Operator Manual MANU41319 VERSION D 08/20 Part No. LA824 WATER PURIFICATION...
