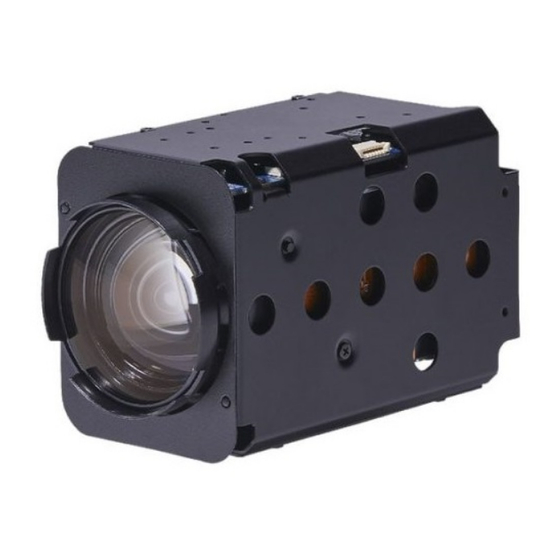

Active Silicon Harrier Series Technical Reference Manual

40x autofocus zoom camera (lvds / cvbs)
Hide thumbs Also See for Harrier Series:
Table of Contents

Advertisement

Quick Links

Download this manual
            
Harrier series camera
.
Harrier 40x Autofocus-
Zoom Camera
(LVDS / CVBS)
AS-CAM-40LHD-A
Technical
Reference Manual
Edition: v1.00
Issued Date: 20 May 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harrier Series and is the answer not in the manual?

Questions and answers

Related Manuals for Active Silicon Harrier Series

Summary of Contents for Active Silicon Harrier Series

  • Page 1              Harrier series camera Harrier 40x Autofocus- Zoom Camera (LVDS / CVBS) AS-CAM-40LHD-A Technical Reference Manual Edition: v1.00 Issued Date: 20 May 2021...

  • Page 2: Table Of Contents

                 Harrier series camera Contents FEATURES ....................3 CAUTIONS ....................4 SPECIFICATION ................... 5 CONNECTORS ..................... 8 INTERFACE ....................11 LVDS RECEIVER CIRCUITS ..............12 CABLE SPECIFICATIONS ................. 15 TIMING CHARTS ..................

  • Page 3: Features

                 Harrier series camera Features ◆ 1/2.8" Sony STARVIS CMOS sensor 2.16M Pixels (Total) 2.12M Pixels (Active) ◆ 40x Optical Zoom High reliability built-in 40x optical zoom lens with autofocus, auto-iris and auto-D&N functions.

  • Page 4: Cautions

                 Harrier series camera Cautions ◆ Power Supply This camera must always be operated at 9V to 15V DC ◆ Handling of the unit Be careful not to spill water or other liquids on the unit.

  • Page 5: Specification

                 Harrier series camera Specification Model AS-CAM-40LHD-A Image Sensor 1/2.8" Sony CMOS Sensor IMX462LQR-C Total Pixels 1945(H) x 1109V) = 2.16M pixels Effective pixels 1945(H) x 1097(V) = 2.13M pixels Active pixels 1937(H) x 1097(V) = 2.12M pixels...
  • Page 6              Harrier series camera Model AS-CAM-40LHD-A Exposure Mode Auto / Iris. Priority / Shut. Priority / Manual AGC(Gain Control) 0 ~ 10 steps Shutter Speed 1/1 ~ 1/30,000 sec Iris Close ~ F1.6...
  • Page 7              Harrier series camera Model AS-CAM-40LHD-A Display Disp Sel (Off / On) ID / Title / Zoom Ratio / System Message Set Title Text Edit Init Sel (Off / On) ID / Baud Rate / Protocol / Version / Init.

  • Page 8: Connectors

                 Harrier series camera Connectors J301 J302 J303 J301 Pin No. Name Level Pin No. Name Level TXOUT3+ TXOUT7+ Single mode: open TXOUT3− TXOUT7- Single mode: open TXCLKOUT+...
  • Page 9              Harrier series camera J302 Pin No. Name Level Pin No. Name Level RS-485 control 485-DIR signal CMOS 5V CMOS 5V Output Composite Video CVBS-OUT Output ADKEY OSD Control...
  • Page 10              Harrier series camera 1. D&N IN (J302-10) Port giving input of any external signal in Day&Night “Ext-In” Mode ⚫ Day Mode: High (+3.3V) ⚫ Night Mode: Low (Ground) 2.

  • Page 11: Interface

                 Harrier series camera Interface AS-CAM-40LHD-A THC63LVD827 LVDS (Thine Electronics, Inc.) 5 pairs (10pin) 8 bits x 2 8 bits x 2 LVDS Cr/Cb Cr/Cb Parallel LVDS Parallel...

  • Page 12: Lvds Receiver Circuits

                 Harrier series camera LVDS receiver circuits THC63LVD104C circuit example (Single output) May 2021 www.activesilicon.com Page 12 of 61...
  • Page 13              Harrier series camera THC63LVD1024 circuit example (Single output) May 2021 www.activesilicon.com Page 13 of 61...
  • Page 14              Harrier series camera THC63LVD1024 circuit example (Double output) May 2021 www.activesilicon.com Page 14 of 61...

  • Page 15: Cable Specifications

                 Harrier series camera Cable specifications ①, ②: Connecting to USL20-30S (KEL) ③: #42 thin coaxial cable ④: Binding tape May 2021 www.activesilicon.com Page 15 of 61...

  • Page 16: Timing Charts

                 Harrier series camera Timing Charts 1. 1080p Output Timing Chart ITU-R BT.1120 also includes progressive scan formats with 1080 active lines, with Y'C'BC'R 4:2:2 sampling at pixel rates of 74.25MHz (30/25fps) or 148.5MHz (60/50fps). The following diagrams show horizontal and vertical timing for 1080-line progressive systems.
  • Page 17              Harrier series camera 2. 720p Output Timing Chart ITU-R BT.1120 also includes progressive scan formats with 720 active lines, with Y'C'BC'R 4:2:2 sampling at pixel rates of 74.25MHz. The following diagrams show horizontal and vertical timing for 720-line progressive systems.
  • Page 18              Harrier series camera ④ Data stream over one video line- 720p 30fps ⑤ Data stream over one video line- 720p 25fps May 2021 www.activesilicon.com Page 18 of 61...
  • Page 19              Harrier series camera 3. EAV and SAV Sequence The EAV and SAV sequences are shown in Table A. The status word is defined as: F = “0” or “1” (Selectable) V = “1”...

  • Page 20: Pixel Data Format

                 Harrier series camera Pixel data format 1. Camera LVDS Tx IC settings (THC63LVD827) R/F (Input Clock Triggering Edge): H (Rising edge) RS(LVDS swing mode): H (350mV) iii.

  • Page 21: Block Diagram

                 Harrier series camera Block Diagram May 2021 www.activesilicon.com Page 21 of 61...

  • Page 22: Reliability

                 Harrier series camera Reliability 1. Zoom (1) Zoom operation cycle: 1,000,000 cycles (2) Operation condition: See below (3) Test condition: Normal temperature TELE side WIDE side 2 sec pause...
  • Page 23              Harrier series camera 3. Auto-iris (1) Auto-iris operation cycle: 500,000 cycles (2) Operation condition: See below (3) Test condition: Normal temperature OPEN CLOSE 3±1sec 3±1sec 4. IR-Cut Filter...

  • Page 24: Functions

                 Harrier series camera Functions 1. Zoom ⚫ Max. zoom ratio Optical Zoom: Max x40 Digital Zoom: Max x32 Optical + Digital Zoom: Max x1280 ※ Digital Zoom cannot be used with the DIS function.
  • Page 25              Harrier series camera ⚫ Manual focus mode Focus position can be adjusted by manual only using Far/Near button or Far/Near command. One push trigger: When a Trigger Command is sent, the lens moves to adjust the focus for the subject.
  • Page 26              Harrier series camera HLC (High Light Compensation) mode: When extremely bright light is projected to the camera masking is used on the portion to prevent partial saturation on the monitor ⚫...
  • Page 27              Harrier series camera 5. DNR (Digital Noise Reduction) By using both of 2D DNR (space-based) and 3D DNR (time-based), the amount of low illuminance noise has been significantly reduced and the signal-to-noise ratio(S/N) as well as horizontal resolution has been improved, resulting in a clear and sharp image display even in the dark environment.
  • Page 28              Harrier series camera Mask Number (mm): Mask A = 0 ~ Mask H = 7 ※ Mask A has highest priority and Mask H has lowest priority...
  • Page 29              Harrier series camera Pan/Tilt angle (ppp, qqq): Range of angle (PAN: -180˚ ~ 180˚, TILT: -90˚ ~ 90˚) Angle resolution (360˚ / 4096) 11. Motion detection Instructs the camera to detect movement within the monitoring area and the send an alarm signal automatically.
  • Page 30              Harrier series camera 12. DIS (Digital Image Stabilizer) The DIS function internally detects shaking of the image due to camera shaking, and performs digital compensation processing to suppress this shaking and stabilize the image output.

  • Page 31: Protocols

                 Harrier series camera Protocols 1. Timing As Command processing can only be carried out one time in a Vertical cycle, it takes the maximum 1V cycle time for an ACK/Completion to be returned. If the Command ACK/Completion communication time can be cut shorter than the 1V cycle time, then every 1V cycle can receive a Command.
  • Page 32              Harrier series camera 3. Pelco-D Protocol Command List Message Format (Hex) Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Zoom Tele Zoom Wide Focus Near Focus Far Stop Don’t care...
  • Page 33              Harrier series camera 4. Pelco-D Protocol Command List Message format (Hex) Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 Zoom Tele Zoom Wide Focus Near Focus Far Stop Don’t care...
  • Page 34              Harrier series camera 5. VISCA Protocol ⚫ Command packet (Variable packet length) X: 1 ~ 7 (Camera address) QQ: 01 (Command), 09 (Inquiry) ⚫ ACK message packet (Variable packet length)
  • Page 35              Harrier series camera ⚫ Example of communication Camera ID: 1 Socket number: 1 ※ Command ※ Inquiry command ⚫ Network change message Sent from the peripheral device to the controller when a device is removed from or added to the network.

  • Page 36: Visca Command List

                 Harrier series camera VISCA Command List Command Set Command Command Packet Comments AddressSet Broadcast 88 30 01 FF Address setting Broadcast 88 01 00 01 FF IF_Clear...
  • Page 37              Harrier series camera Command Set Command Command Packet Comments Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Red Gain Manual setting CAM_RGain...
  • Page 38              Harrier series camera Command Set Command Command Packet Comments Mode 8x 01 04 32 0p FF p: HLC Mode - 0(Off), 1(On), 2(Night Only) Level 8x 01 04 32 10 00 0p 0q FF...
  • Page 39              Harrier series camera Command Set Command Command Packet Comments 8x 01 04 34 02 FF CAM_Stabilizer Stabilizer ON/OFF 8x 01 04 34 03 FF Reset 8x 01 04 3F 00 0p FF...
  • Page 40              Harrier series camera Command Set Command Command Packet Comments mm: MaskSettings 8x 01 04 76 mm nn SetMask nn: 00=Modify, 01=New 0r 0r 0s 0s FF rr: W, ss: H...

  • Page 41: Visca Inquiry Command List

                 Harrier series camera VISCA Inquiry Command List Inquiry Command Command Packet Inquiry Packet Comments CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF CAM_ZoomPosInq 8x 09 04 47 FF...
  • Page 42              Harrier series camera Inquiry Command Command Packet Inquiry Packet Comments y0 50 02 FF CAM_BLCModeInq 8x 09 04 33 FF y0 50 03 FF CAM_BLCAreaInq 8x 09 04 3C 00 FF...
  • Page 43              Harrier series camera Inquiry Command Command Packet Inquiry Packet Comments y0 50 02 FF Night CAM_ICRStateInq 8x 09 04 01 FF y0 50 03 FF y0 50 02 FF...
  • Page 44              Harrier series camera Inquiry Command Command Packet Inquiry Packet Comments mnpq: Model Code (0466 h) y0 50 00 20 mn pq rs tu CAM_VersionInq 8x 09 00 02 FF...
  • Page 45              Harrier series camera Exposure Control Values Shutter Speed Iris Brightness Step (Hex) NTSC Step (Hex) IRIS Step (Hex) IRIS GAIN 1/30000 1/30000 F1.6 79.5dB F1.6 1/20000 1/20000 F1.8...
  • Page 46              Harrier series camera Zoom & Focus control values Optical Zoom D-Zoom : Combine Mode D-Zoom : Separate Mode Zoom Zoom Zoom Magnification Magnification Magnification Position Position Position...
  • Page 47              Harrier series camera Wide/Tele Limit Setting Wide/Tele Limit Wide Limit Tele Limit Setting Value Limit Setting Zoom Position Zoom Ratio Zoom Position Zoom Ratio Value 0000 1.00 4000 40.00...
  • Page 48              Harrier series camera OSD Position and Character Values 00 ~ 0Eh 15 Rows (CAM_MultiLineTitle) V Position 00 ~ 11h 17 Rows (CAM_User OSD) H Position 00 ~ 27h...
  • Page 49              Harrier series camera Register Setting Register Function Register Value Setting 2400 bps 4800 bps 9600 bps BaudRate 19200 bps 38400 bps 57600 bps 115200 bps 00-FF Wide Limit (0: Disabled)

  • Page 50: Osd Menu

                 Harrier series camera OSD Menu ◆ Main Menu MENU ZOOM/FOCUS ↲ EXPOSURE ↲ WHITE BAL ↲ IMAGE ↲ INTELLIGENCE ↲ SPECIAL FUNC ↲ DISPLAY ↲ [EXIT] [SAVE] [DFLT] Functions can be setup using “Menu Key Command”...
  • Page 51              Harrier series camera ◆ ZOOM / FOCUS MENU ZOOM/FOCUS FOCUS MODE AUTO ZOOM/FOCUS ↲ DISTANCE 3.0m EXPOSURE ↲ ZOOM SPEED WHITE BAL ↲ LENS REFRESH ONE PUSH↲...
  • Page 52              Harrier series camera ◆ EXPOSURE EXPOSURE MENU MODE AUTO ZOOM/FOCUS ↲ SHUT SPEED EXPOSURE ↲ IRIS WHITE BAL ↲ IMAGE ↲ FLICKERLESS INTELLIGENCE ↲ BRIGHTNESS SPECIAL FUNC ↲...
  • Page 53              Harrier series camera ⚫ BRIGHTNESS: Adjust brightness level. ► 0(dark) ~ 14(bright) steps BACK LIGHT: ⚫ Select HLC(High Light compensation) or BLC(Back Light compensation). ► OFF ► BLC LEVEL: 0 ~ 6 steps POSITION: Adjust the window position.
  • Page 54              Harrier series camera ◆ WHITE BALANCE WHITE BAL MENU MODE AUTO RED GAIN ZOOM/FOCUS ↲ BLUE GAIN EXPOSURE ↲ CHROMA WHITE BAL ↲ IMAGE ↲ INTELLIGENCE ↲...
  • Page 55              Harrier series camera ◆ IMAGE IMAGE MENU 2D/3D↲ MIRROR ZOOM/FOCUS ↲ SHARPNESS EXPOSURE ↲ CONTRAST WHITE BAL ↲ IMAGE BRIGHT IMAGE ↲ DWDR INTELLIGENCE ↲ DEFOG SPECIAL FUNC ↲...
  • Page 56              Harrier series camera IMAGE BRIGHT: ⚫ Adjust image brightness level. ► 0 ~ 20 steps ⚫ DWDR: Select WDR (Wide Dynamic Range). ► OFF ► AUTO ↲ : Select auto level (HIGH, MIDDLE, LOW) ►...
  • Page 57              Harrier series camera ◆ INTELLIGENCE MENU INTELLIGENCE PRIVACY ZOOM/FOCUS MOTION ↲ EXPOSURE ↲ WHITE BAL ↲ IMAGE ↲ INTELLIGENCE ↲ SPECIAL FUNC ↲ DISPLAY ↲ [BACK] [SAVE]...
  • Page 58              Harrier series camera ◆ SPECIAL FUNC MENU SPECIAL FUNC DEFECT ZOOM/FOCUS ↲ SYSTEM NTSC EXPOSURE ↲ HD FORMAT 1080p/30fps WHITE BAL ↲ COMM ↲ IMAGE ↲ INTELLIGENCE ↲...
  • Page 59              Harrier series camera ◆ DISPLAY MENU DISPLAY ZOOM/FOCUS DISP SEL ↲ EXPOSURE SET TITLE ↲ ↲ WHITE BAL INIT SEL ↲ IMAGE SET INIT MSG ↲ ↲...

  • Page 60: Camera Dimensions

                 Harrier series camera Camera Dimensions May 2021 www.activesilicon.com Page 60 of 61...

  • Page 61: Ordering Information

                 Harrier series camera ORDERING INFORMATION PART NUMBER DESCRIPTION AS-CAM-40LHD-A Harrier 40x AF-Zoom Camera (LVDS/CVBS) AS-CIB-USBHDMI-002-40LHD-A Harrier 40x AF-Zoom Camera with USB/HDMI output AS-CIB-3GSDI-002-40LHD-A Harrier 40x AF-Zoom Camera with 3G/HD-SDI output...
