Cornelius FCB V4 Operator Instructions

BLEND
ON/OFF
ON
MOTOR
Side 1
Side 2
Syrup Out Side 1 or Syrup Out Side 2 Message (
If either freeze cylinder is out of syrup, a warning will "Beep" seven times. The message display will
indicate Syrup Out Side 1 or Syrup Out Side 2. This indicates the syrup supplying that freeze cylin-
der must be replaced.
Proceed as follows:

Bag-in-Box System

A. Disconnect the syrup tube from the empty bag-in-box and remove the empty bag-in-box.
B. Install a full bag-in-box and connect the syrup tube. Proceed to step C.

FCB Control Panel

C. At the FCB panel, press and hold any one of the buttons for 5 seconds. This unlocks the panel
and allows programming.
D. Press Off 1 or Off 2 depending on which cylinder is being replenished.
E. Press and hold the SYRUP PRIME 1 or SYRUP PRIME 2 until the Syrup Out Side 1 or
Syrup Out Side 2 message goes out.
F. If the Syrup OUT Side 1 or Syrup OUT Side 2 message does not go out, repeat step E.
until it does.
G. Slowly pull the relief valve ring on the faceplate to relieve the CO
is filling. When the cylinder is full, liquid will run from the tube.
H. Press ON 1 or ON 2 to start the freeze process. The freeze cylinder beaters and the refrigera-
tion system will start automatically. Do not start unless the freeze cylinders are FULL.
See back for Bag-in-Box illustration and freeze cylinder location
Revision Date: May 09, 2014
© 1998-2014, Cornelius Inc.
FCB Operator's Instructions
(Applies to V4 Units)
ERROR
SYRUP PRIME RESET
ER
Í Í Í Í Í Í Í Í
Display
OFF
(Forward)>
<(Backward)
Manual Defrost
Menu/Select

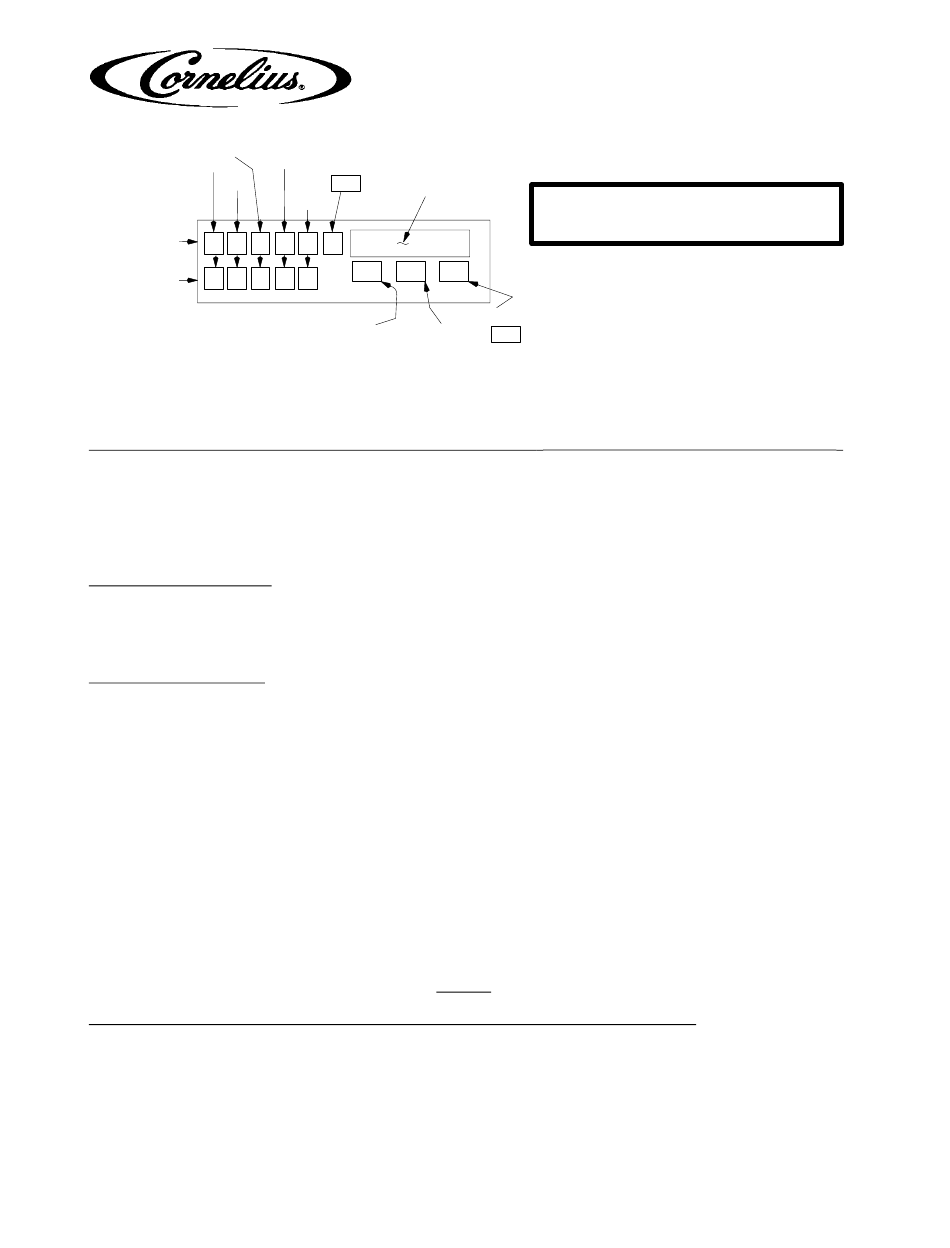

*CONTROL PANEL SWITCH IDENTIFICATION
*THE CONTROL PANEL IS ACCESSIBLE BY
OPENING THE UNIT FRONT ACCESS DOOR
Cancel Defrost
MS
see back for freeze cylinder location
1
Publication Number: 560002989
)
pressure while the cylinder
2
Revision: B
