Genesis GBP-ST2000 Mounting Instruction

Roller shutter with mosquito screen
Hide thumbs Also See for GBP-ST2000:

Advertisement

Quick Links

Download this manual

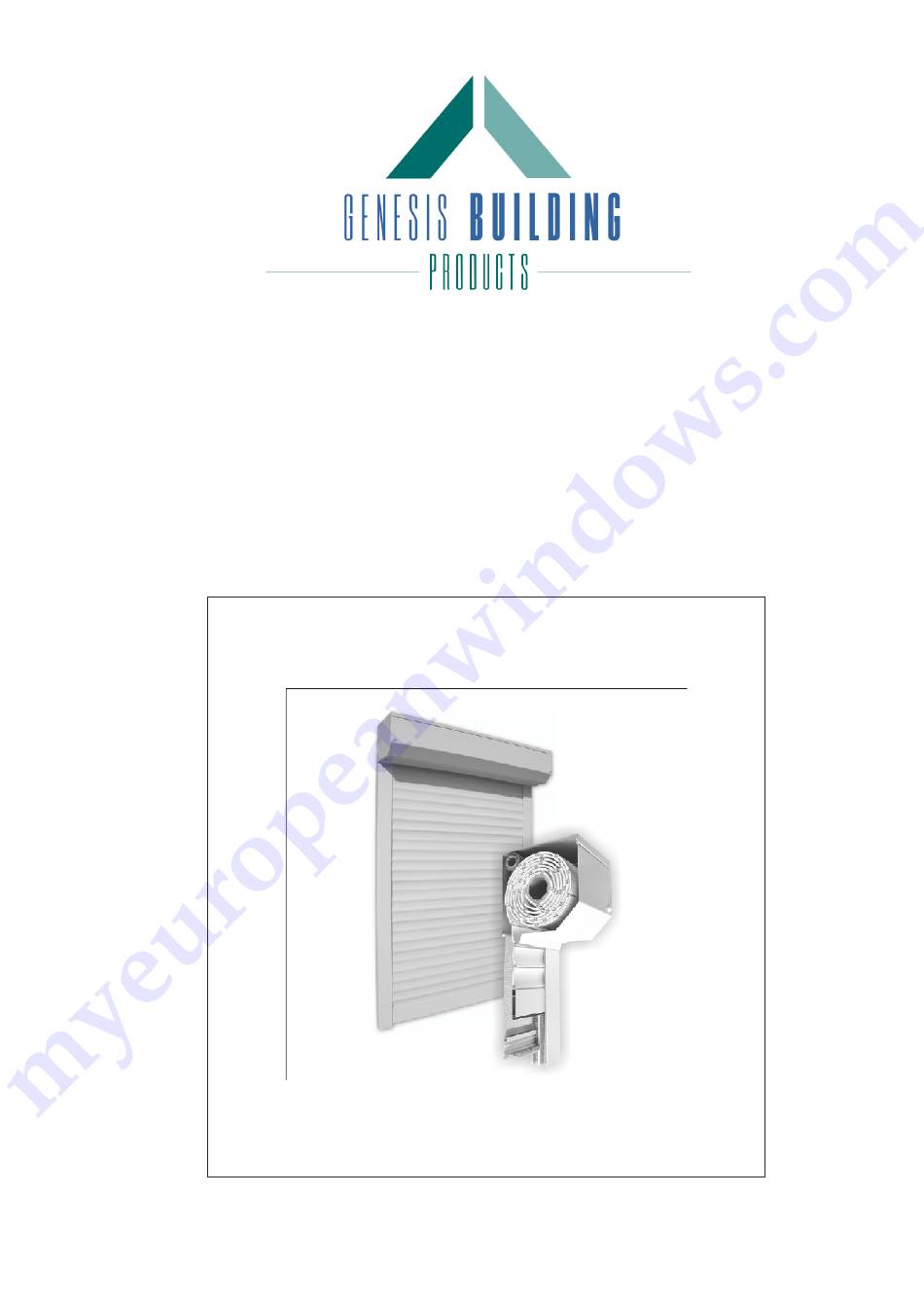

MOUNTING INSTRUCTION
ROLLER SHUTTER
GBP-ST2000
WITH MOSQUITO SCREEN

Advertisement

loading
Need help?

Need help?

Do you have a question about the GBP-ST2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genesis GBP-ST2000

Summary of Contents for Genesis GBP-ST2000

  • Page 1 MOUNTING INSTRUCTION ROLLER SHUTTER GBP-ST2000 WITH MOSQUITO SCREEN...
  • Page 2 EXTERNAL ROLLER SHUTTERS MOUNTING TYPES MOUNTING TYPE "A" MOUNTING TYPE "B" MOUNTING TYPE "C"...
  • Page 3 MOUNTING TYPE "A" min 70mm max 90mm 500mm 500mm Tools necessary to mount the blind. Dimensioning: H - height of opening S - width of the opening The GBP LLC does not provide screws and dowels Measure and mark the place where the holes are made on the guides for struts and PVC tubes.
  • Page 4 1 5 m Place the drilled guides against the wall and mark the holes On the wall, mark the place of drilling for the strap, string or cable. on mounting pins. Then drill 15 mm holes above the upper part of the guide in the middle of the chamber that introduces the foot of the box.

  • Page 5: String Installation

    STRING INSTALLATION STRAP INSTALLATION Pass the tape (cable or cord) through the hole into building. Carefully slide the box onto the guide by introducing the profile slider into the upper part of the guides. Blinds with a mosquito net, carefully insert the bottom rail so to not damage the net.
  • Page 6 MOSQUITO NET WITH KLIK-KLAK ... after unscrewing the Allen screws with the 2mm key, please After the blind is installed we recommend filling the upper and side use a screwdriver to move the hooks up or down. In the case of gaps between the wall and the roller shutter with silicone seals for protection against water.
  • Page 7 MOUNTING "B" MOUNTING "C" ... when assembling C - drill holes in the marked places on the wall. Drill holes in the marked places on the window frame for the screws. 25 mm Carefully slide the box into the guide by introducing the profile With the type of mounting into the openings on the window frame as sliders into the upper part of the guides.
  • Page 8 MOUNTING "C" Make sure that the blind is properly mounted (horizontally and vertically). Tighten the screws in the guides and then insert caps. Check the correct functioning of the blind. Check the correct operation of automatic bolts and bolts or lock, adjust if necessary. The retractor should be screwed to the wall or window frame Lower the shutter blinds, then the straps or rope should be cut vertically in relation to the cable outlet from the grommet.
  • Page 9 OPERATION MANUAL ROLLER SHUTTER WITH MOSQUITO SCREEN 1. Raising the blind Grab the strap and pull it down. During this time, the loose part of the tape will be rolled up to the retractor and the roller shutter's blind will rise to a certain height. Repeat the procedure several times until the blinds stops by the limiters mounted in the bottom bar and the blind is completely open.
  • Page 10 Spring drive: 1. Raising the blind. Grab the handle in the bottom strip and hold the blind. Use the key to release the lock. Slowly release the blind. The blind will roll up automatically and will stay open. 2. Closing the blind: Hold both handles in the lower bar with both hands and evenly pull the blind down.
  • Page 11 Drive for the engine: Press the switch key with the appropriate marking of the roller blind direction (up / down). At this moment, the blind will start raising or lowering. To stop the engine operation, release the switch key or briefly press the opposite direction key (in the hold-back switches).
  • Page 12 Supports mosquito nets in external blinds Closing the mosquito net: KLIK-KLAK System FISHING SYSTEM Hold both handles in the lower bar with both Hold both handles in the lower bar with both hands and evenly lower the mosquito net. The hands and evenly lower the mosquito net.
  • Page 13 Causes of improper functioning of the mosquito net in external blinds Incorrect installation of the guides may cause a malfunction of the KLIK-KLAK system. X1=X2 2 mm D1=D2 2 mm Incorrect adjustment of the catches in the mosquito net guides relative to each other may cause problems with the proper functioning of the mosquito net hook (eg one side of the mosquito net lower edge is attached to the hook and the other not).
  • Page 14 Roller maintenance: The roller shutter maintenance consists of periodically cleaning the roller shutter from dust and dirt, which may cause damage to the varnish. The roller blind should be cleaned with a soft cloth using generally available mild cleaning agents. Do not use abrasives or abrasive agents. Make sure that no objects are left in the guide channel or the box to cause the roller shutter curtain to jam.
  • Page 16 IMPORTANT SAFETY INSTRUCTIONS. WARNING - PROCEDURE UNDER THIS MANUAL IS ESSENTIAL FOR THE SAFETY OF PEOPLE. SAVE THESE INSTRUCTIONS. Genesis Building Products LLC 348 County Road 3521 Bullard, Texas 75757 USA 1(903) 600-5040 info@myeuropeanwindows.com www.myeuropeanwindows.com...
