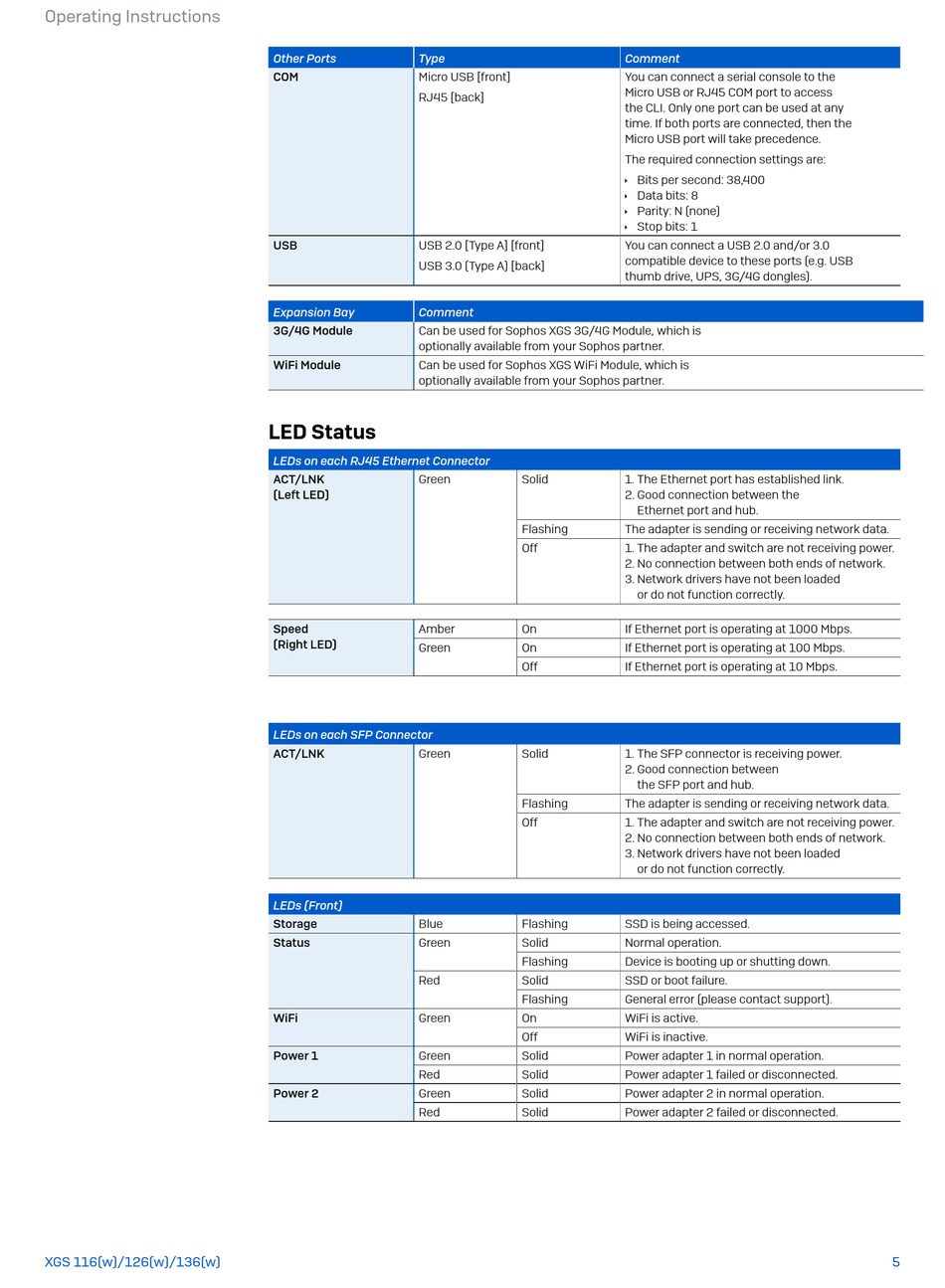

Led Status - Sophos XGS 116 Operating Instructions Manual

Operating Instructions
XGS 116(w)/126(w)/136(w)
Other Ports Type
COM Micro USB [front]
RJ45 [back]
USB USB 2.0 [Type A] [front]
USB 3.0 (Type A) [back]
Expansion Bay Comment
3G/4G Module Can be used for Sophos XGS 3G/4G Module, which is
optionally available from your Sophos partner.
WiFi Module Can be used for Sophos XGS WiFi Module, which is
optionally available from your Sophos partner.

LED Status

LEDs on each RJ45 Ethernet Connector
ACT/LNK Green
(Left LED)
Speed Amber
(Right LED)
Green
LEDs on each SFP Connector
ACT/LNK
Green
LEDs (Front)
Storage Blue
Status Green
Red
WiFi
Green
Power 1 Green
Red
Power 2 Green
Red
Comment
You can connect a serial console to the
Micro USB or RJ45 COM port to access
the CLI. Only one port can be used at any
time. If both ports are connected, then the
Micro USB port will take precedence.
The required connection settings are:
Ì Bits per second: 38,400
Ì Data bits: 8
Ì Parity: N (none)
Ì Stop bits: 1
You can connect a USB 2.0 and/or 3.0
compatible device to these ports (e.g. USB
thumb drive, UPS, 3G/4G dongles).
Solid 1. The Ethernet port has established link.
2. Good connection between the
Ethernet port and hub.
Flashing The adapter is sending or receiving network data.
Off 1. The adapter and switch are not receiving power.
2. No connection between both ends of network.
3. Network drivers have not been loaded
or do not function correctly.
On If Ethernet port is operating at 1000 Mbps.
On If Ethernet port is operating at 100 Mbps.
Off If Ethernet port is operating at 10 Mbps.
Solid 1. The SFP connector is receiving power.
2. Good connection between
the SFP port and hub.
Flashing The adapter is sending or receiving network data.
Off 1. The adapter and switch are not receiving power.
2. No connection between both ends of network.
3. Network drivers have not been loaded
or do not function correctly.
Flashing SSD is being accessed.
Solid Normal operation.
Flashing Device is booting up or shutting down.
Solid SSD or boot failure.
Flashing General error (please contact support).
On WiFi is active.
Off WiFi is inactive.
Solid Power adapter 1 in normal operation.
Solid Power adapter 1 failed or disconnected.
Solid Power adapter 2 in normal operation.
Solid Power adapter 2 failed or disconnected.
