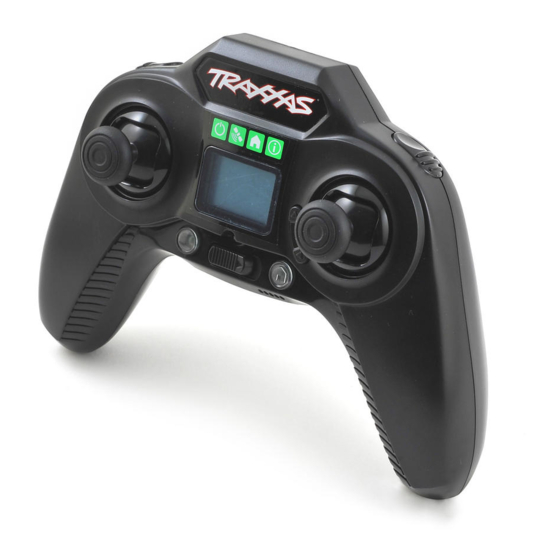

Traxxas ATXN Instructions

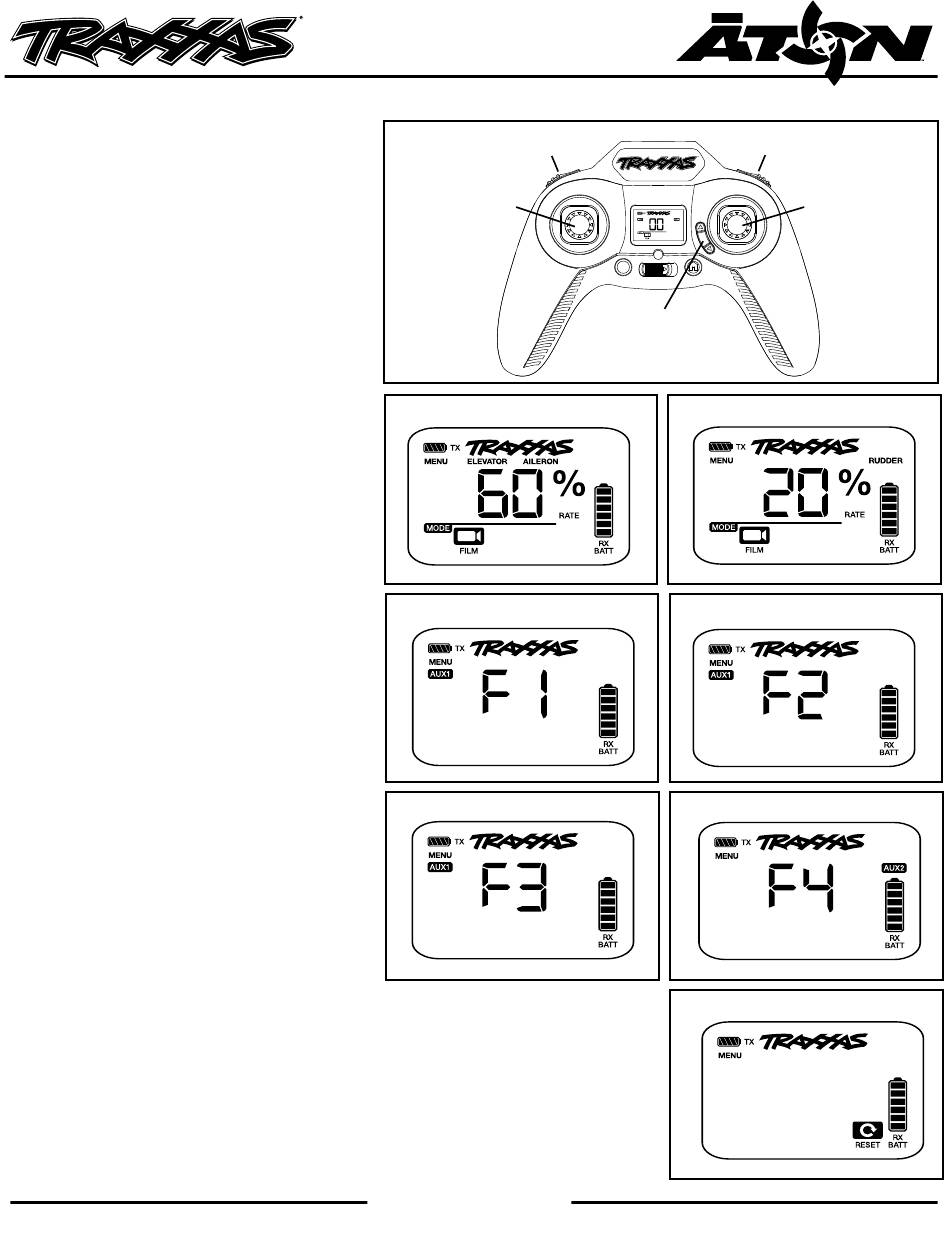

Mode 2 (US) Transmitter Menu Navigation Instructions

1. Press and hold the throttle stick for 3 seconds to enter
the transmitter menu.
2. The Elevator/Aileron percentage for Film Mode will
show on the LCD screen (A).
3. Use the Menu Navigation (Up/Down) button to adjust
the percentage.
Note: Press the flight stick to toggle between flight
modes (Film, Fast (Sport), Expert); use the Menu Navigation
(Up/Down) button to adjust the Elevator/Aileron and
Rudder percentages in any flight mode.
4. Press the throttle stick once to toggle to the Rudder
menu (B).
5. Use the Menu Navigation (Up/Down) button to adjust
the percentage.
6. Press the throttle stick again to toggle to the AUX1
button settings (Fast (Sport) Mode only).
• F1 = single flip when AUX1 button is pressed (C)
• F2 = triple flips when AUX1 button is pressed (D)
• F3 = quintuple flips when AUX1 button is pressed (E)
7. Press the throttle stick again to toggle to the AUX2
button setting (F).
• The AUX2 setting is preprogrammed for Air Brakes
(F4) and cannot be changed.
8. Press the throttle stick again to toggle to the Reset
Menu (G).
• From this menu, the pilot is able to reset the
accelerometer. Set Āton on a level surface. Press the
Air Brakes button to enter accelerometer reset.
9. Press and hold the throttle stick for 3 seconds to exit
the menu.
Note: Any adjustments made to the flight settings using
the Traxxas Flight Link™ App will override any transmitter
menu settings.
If you have questions or need technical assistance, call Traxxas at
1-888-TRAXXAS
Traxxas, 6250 Traxxas Way, McKinney, TX 75070, Phone: 972-549-3000, Fax: 972-549-3011, e-mail: support@Traxxas.com
A
C
E
(1-888-872-9927) (U.S. residents only)
T R AXXAS. com

AUX1 button

Throttle Stick
Menu Navigation
Air Brakes (AUX2)
button
(Up/Down)
B
D
F
G
Flight Stick
