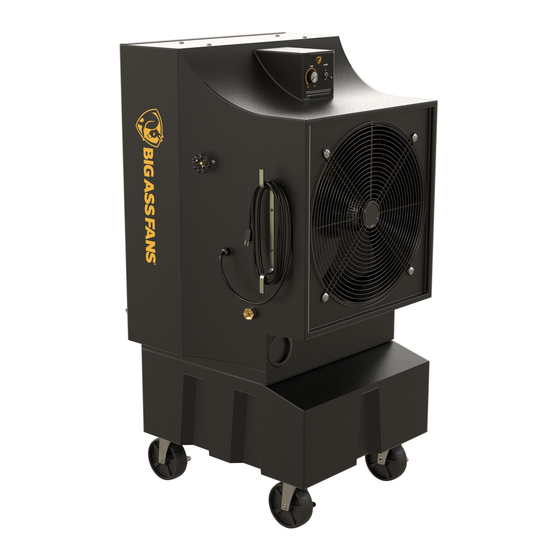

  • Page 1 READ AND SAVE THESE INSTRUCTIONS LISEZ ET CONSERVEZ CES INSTRUCTIONS LEA Y GUARDE ESTAS INSTRUCCIONES EXCEPTIONALLY ENGINEERED COLD FRONT 300 COLD FRONT 400 COLD FRONT 500 Operation and Maintenance Manual Manuel de fonctionnement et d'entretien Manual de operación y mantenimiento...
  • Page 2 Big Ass Fans. The information contained in this document is subject to change without notice. For the most up-to-date information, see the online printable installation guide at www.bigassfans.com Patent: www.bigassfans.com/patents • www.bigassfans.com/product-warranties...
  • Page 3 ✓ Use Refresh™ tablets (algae killer) and/or CTT-EC™ cooler treatment tablets (mineral treatment). One algae killer tablet is provided in the cooler's reservoir. Additional water treatment tablets are available at bigassfans.com. DO NOT Χ DO NOT forget to dry out the cooling media before shutting down the cooler. Turn off the pump and leave the fan running for 10 to 15 minutes.

  • Page 4: Assembly And Setup

    Carefully examine the carton for damage before opening. If the carton is damaged, notify the shipping company immediately. Install Casters (Cold Front 300 only): 1. Locate the package of four (4) casters and sixteen (16) bolts and remove from box.
  • Page 5 4 mm 5 mm 13 A 15 A 15 A 15 A 16 m 13 A 14 A 15 A 15 A 32 m 10 A 12 A 13 A 15 A WWW.BIGASSFANS.COM © 2020 DELTA T LLC ALL RIGHTS RESERVED.

  • Page 6: Operation

    NOT COVERED BY WARRANTY. IMPORTANT Pump is equipped with a low water cutoff that may take up to five (5) minutes to reset each time. WWW.BIGASSFANS.COM © 2020 DELTA T LLC ALL RIGHTS RESERVED.
  • Page 7 In Auto mode: • Indicator light will be on. • Cooler will run when motion is detected. • When no motion is detected, cooler will run for 10 minutes and then shut down. WWW.BIGASSFANS.COM © 2020 DELTA T LLC ALL RIGHTS RESERVED.
  • Page 8 • Cooler will run when motion is down. detected. • Works in Auto and Manual • When no motion is detected, mode. cooler will run for 10 minutes, and then shut down. WWW.BIGASSFANS.COM © 2020 DELTA T LLC ALL RIGHTS RESERVED.

  • Page 9: Maintenance And Storage

    Collected particles and any water impurities will flow into the sump and collect there. To keep the cooler operating at peak efficiency, keep the cooling media and sump clear of debris. Water treatment tablets are available at bigassfans.com. Draining the water sump 1.

  • Page 10: Troubleshooting And Repair

    General troubleshooting The cooler consists of three systems: • Pump • Water distribution system • Fan system Use the troubleshooting tables on the following pages to determine which system(s) require servicing. WWW.BIGASSFANS.COM © 2020 DELTA T LLC ALL RIGHTS RESERVED.
  • Page 11 • Replace the panel. • Check for a broken or loose wire. E9 - Motor No Response • Replace the motor. F6 - Panel Communication Error • Check for a broken or loose wire. WWW.BIGASSFANS.COM © 2020 DELTA T LLC ALL RIGHTS RESERVED.
  • Page 12 Check for blocked holes in the spray bar or adjust water flow. There are too many dry streaks on • Remove spray bar and plug and clean the tube and holes. the pads. • Open water flow control valve. WWW.BIGASSFANS.COM © 2020 DELTA T LLC ALL RIGHTS RESERVED.
  • Page 13 Check capacitor (where visible) and motor electrical connections. Replace capacitor or motor. Fan will not reach speed but turns and makes humming sound. Extension cord gauge is too small. Replace with heavier cord. WWW.BIGASSFANS.COM © 2020 DELTA T LLC ALL RIGHTS RESERVED.
  • Page 14 Disconnect the power supply before performing any service or maintenance. Failure to do so may result in serious injury or death. Fan motor replacement for Cold Front 300 1. Remove cooling pads. 2. Remove black motor wiring plate and disconnect motor wires. Mark each wire with a marker or marker tape for easy matching when installing new motor.

  • Page 15: Pump Troubleshooting

    Disconnect the power supply before performing any service or maintenance. Failure to do so may result in serious injury or death. Pump replacement for Cold Front 300, 400, and 500 1. Unscrew fitting from pump. 2. Unplug cord from top of pump by removing the two (2) screws.

  • Page 16: Maintenance

    ☑ If the cooling media is heavily stained with minerals or is damaged, replace the media. Replacement cooling media is available at bigassfans.com. Verify the media is installed correctly with the arrows on the side. ☑ Connect the water line and turn on the water supply. Check the float valve and make sure it is operating properly.
  • Page 17 CONTACT US Customer Service Accessories and Replacement Parts 2348 Innovation Drive www.bigassfans.com Lexington, KY 40511 877-244-3267 bigassfans.com www.bigassfans.com/support...
