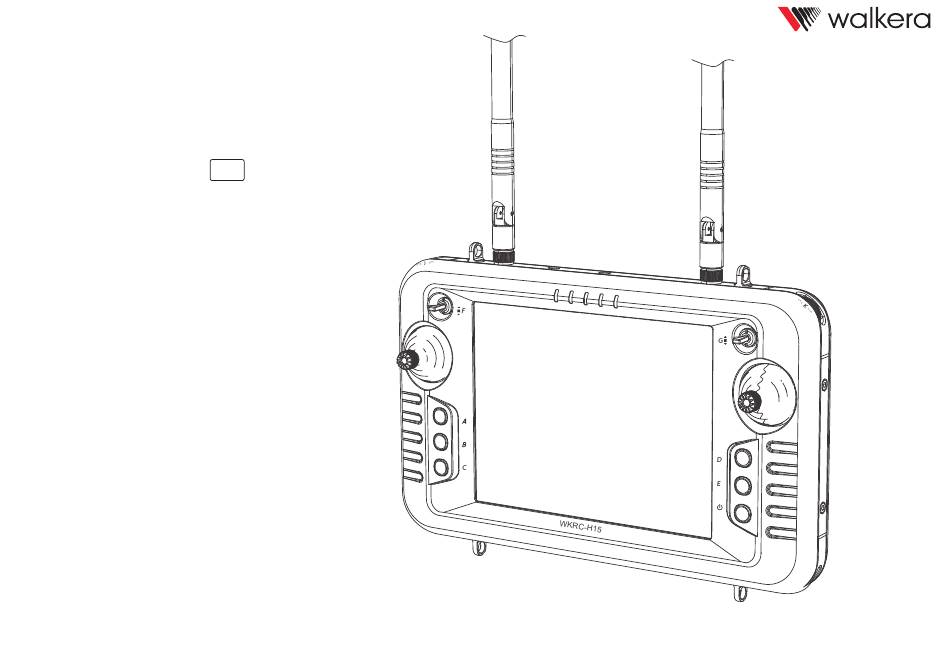

- Page 1 WKRC-H15 All-in-one HD GCS Remote User Manual V1.1 Sep. 22th 2020 www.walkera.com...
-
Page 3: Table Of Contents
3.0 Description of Ground End Panel 4.0 Installation of modules on the ground, sky, and flight controllers 4.1 Install the antenna on the ground end of WKRC-H15 and adjust the antenna 4.2 WKRC-H15 ground end opening and closing 4.3 Charging the WKRC-H15 ground remote control 4.4 RX-H15 sky end parts name... -
Page 4: Introduction
2.0 Product considerations When using WKRC-H15, if the operation is improper, the aircraft may cause a certain degree of injury and damage to the person and property. Please pay attention to safety when using it. -
Page 5: Description Of Ground End Panel
3.0 Description of Ground End Panel WKRC-H15 All-in-one HD GCS Remote parts name Charge Port Upgrade port 12 13 14 1. Antenna 14. Charging indicator 2. F third gear switch 15. Hook 3. A button 16. Display WKRC-H15 4. Button B 17. - Page 6 GCS Remote power switch description: Turn on: Long press the power switch to turn on the remote control. Shutdown / Restart: Long press the power switch, the GCS Remote screen will pop up "shutdown" and "restart" operation interface. Click "Shutdown" to turn off the GCS Remote; Click "Restart"...
- Page 7 Channel name Output signal Right rocker (AILE) (Left: 1000 Right: 2000) American hand: Pitch (ELEV) (up: 1000 down: 2000) Right rocker Japanese Hand: Throttle (THRO) (Up: 2000 Down: 1000) American hand: Throttle (THRO) (up: 2000 down: 1000) Left rocker Japanese hand: Pitch (ELEV) (up: 1000 down: 2000) Left rocker Heading (RUDD) (Left: 1000 Right: 2000) F three-speed switch...
-
Page 8: Installation Of Modules On The Ground, Sky, And Flight Controllers
4.0 Installation of modules on the ground, sky, and flight controllers 4.1 Install and adjust the antenna on the GCS Remote end of WKRC-H15 Install the antenna and adjust the position of the antenna on the ground. The signal strength received at different antenna positions is different. -
Page 9: Wkrc-H15 Ground End Opening And Closing
4.2 WKRC-H15 GCS Remote end on and off There is a built-in 2S rechargeable battery with a capacity of 9000mAh on the ground. You can check the current power through the battery power indicator. Power High Install the battery on the remote control. Press and hold... - Page 10 Method Two: Charge with GA008 charger. 1) To charge with the GA008 charger, the battery must be removed from the remote control, as shown in Figure 4.3-1. 2) Connect the remote controller battery, GA008 charger, 15V 4A power adapter to charge as shown in Figure 4.3-2. 3) The GA008 charger indicates that the red light is always on --- means charging, and the green light is on --- means it is fully charged.
-
Page 11: Rx-H15 Sky End Parts Name
4.4 RX-H15 sky end parts name 1. S1 button: Reset button. 7. DC 5V port: Is used to power the sky side. 2. S2 button: Frequency-matching button, through which the 8. HDMI port: Is used for the input of external camera video signals. frequency can be carried out between the sky and the ground. -
Page 12: Rx-H15 Sky End Installation Antenna
4.5 RX-H15 sky end installation antenna The sky side needs to communicate with the ground side through the antenna. Please install the antenna as follows: 1. Install the sky antenna extension cable to the sky antenna port as shown below. 2. -
Page 13: Fcs-F8 Flight Control Module Function Description
4.6 FCS-F8 flight control module function description Servo 1 Servo 2 Servo 3 Servo 4 Servo 5 FCS-F8 Servo 6 （Motor） Servo 7 Servo 8 Servo 9 BUZZ Servo 10 Made in China Buzzer SBUS Battery voltage test UART6 UART7 POWER LED2 UART8... -
Page 14: Rx-H15 Sky End Module Connection Diagram
5.0 RX-H15 sky end module connection diagram Connect to Connect to POWER IN POWER OUT FCS-F8 Power Box Made in China Serial port control cable Connect to Connect to UART6 Power Serial port UART6 UART7 POWER UART1 FCS-F8 GPS Signal indicator BUZZ GPS signal Made in China... -
Page 15: Wkrc App Application Settings
6.0 WKRC app application settings Note: If the WKRC app application software is updated, the remote controller will prompt itself to update the latest version after connecting to the Internet. 6.1 Turn on the power switch of the remote control. 6.2 Open the WKRC app in the main screen interface and enter the setting interface (see Figure 6.2). - Page 16 (2) Touch "RC Channel" to enter the remote control channel setting interface, please make settings according to your actual needs. Figure 6.3-3 Figure 6.3-4...
- Page 17 6.4. Transmission Setting: Touch "Transmission setting" to enter the image transmission setting interface, you can choose to image transmission frequency or restart the image transmission. Figure 6.4-2 Figure 6.4-1 Frequency-matching method: First press the S2 frequency-matching button on the RX-H15 sky end to put the sky end in the frequency- matching state, and then select the image transmission frequency-matching.
- Page 18 6.5 UAV Parameter setting: After the flight control is connected, touch "UAV Parameter" to enter the flight control parameter setting interface. Please set it according to your actual needs. Figure 6.5-1 Figure 6.5-2...
- Page 19 6.6 Frame Selection After the aircraft is connected, touch "Frame Selection" to enter the rack selection interface. Please select it in conjunction with the aircraft. Figure 6.6-1 Figure 6.6-2...
- Page 20 6.7 Sensor Calibration After the aircraft is connected, touch “Sensor Calibration” to enter the calibration interface. Please perform calibration with the aircraft. Figure 6.7-1 Figure 6.7-2...
-
Page 21: Parameters
Operating frequency: 5725MHz to 5850MHz Weight: 38g 2400MHz to 2483.5MHz Working voltage: 5V Ground end (WKRC-H15) Working current: 500mA Working environment temperature: -10 ℃ ~ 40 ℃ Dimensions (without antenna): 281.3mm * 192mm * 70.3mm (L * W * H) -
Page 22: List Of Items
8.0 List of items Antenna (2) x2 WKRC-H15 GCS Remote RX-H15 image transmission GPS Signal indicator FCS-F8 flight control Flight control power box GPS signal indicator box GPS signal indicator cable Antenna extension cable x 2 GPS module... - Page 23 Flight control power box power input line Flight control power input line Image transmission flight control cable Mini HDMI to HDMI cable GA008 charger Power adapter ● 用户手册 ● Power cord line Remote control strap Manual...
- Page 24 Manufacturer: Guangzhou Walkera Technology Co.,Ltd Add: No.48 Wantai Rd, Taishi Industrial Park, Dongchong Town, Nansha Dist, Guangzhou, China.511453 Hotline: +86 20-84915115 This manual is subject to update without prior written notice. Please refer to Walkera official website for latest version.
