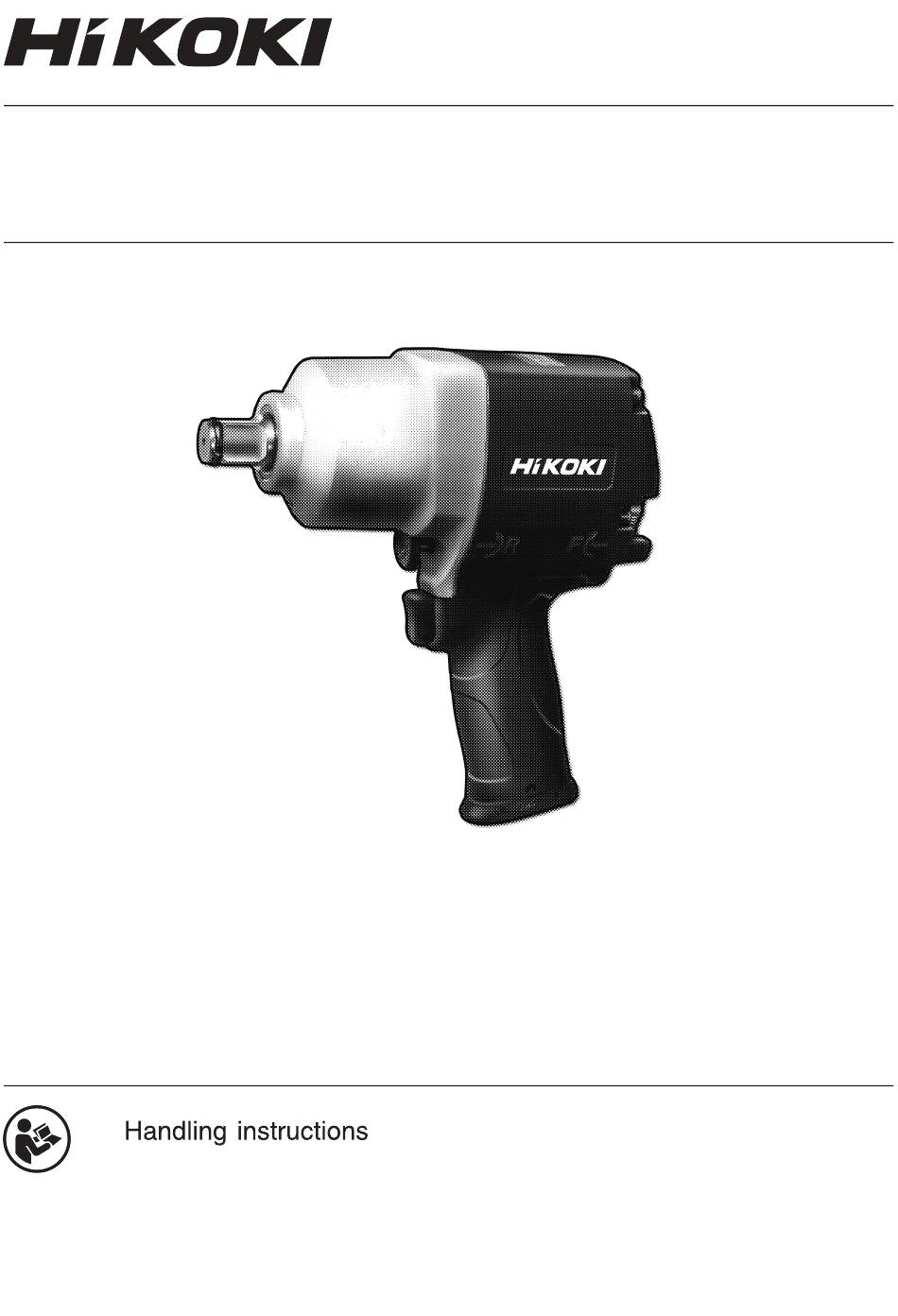

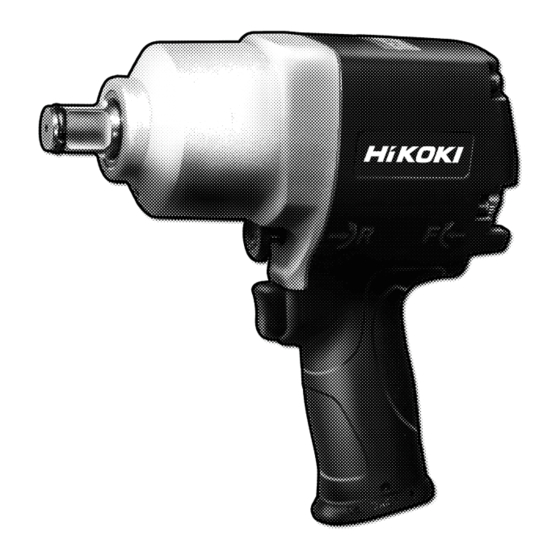

- Page 1 WR14A．WR27A...
- Page 2 Impact/Rachet Wrenches It is intended for lightening/loosening or installing/ uninstalling of threaded fasteners,with appropriate power socket wrenches ir driver bits.
- Page 3 OPERATION INSTRUCTION General Before each use: Always operate, inspect and maintain tool in accordance with all regulations (local, state, ● federal and country), that may apply to hand held pneumatic tools. Drain water from air compressor tank and condensation from air lines. See air ●...
- Page 4 The engery transmitted form the tool can vary depending on the size of IMPORTANT the air compressor and the volumn of air the air compressor delivers. Do not use damaged, frayed or deteriorated air hoses and fitting. ● Always disconnect air supply before lubricating, installing, removing or adjusting the tool. ●...
-
Page 5: Entanglement Hazards
Entanglement hazards - Choking, scalping and/or lacerations if loose clothing, personal jewellery, neckware, hair or gloves are not kept away from the tool and accessories. - Gloves can become entangled with the rotating drive, causing severed or bro ken fingers. - Do not wear loose -fitting gloves or gloves with cut or frayed fingers. - Page 6 Workplace hazards - Slips, trips and falls are major causes of workplace injury. Be aware of slippery surfaces caused by the use of the tool and also of trip hazards caused by the air line or hydraulic hose. - Proceed with care in unfamiliar surr oundings. Hidden hazards, such as electricity or other utility lines, can exist.
-
Page 7: Vibration Hazards
instruction handbook to prevent an unnecessary increase in the noise level. - If the power tool has a silencer, always ensure it is in place and in good working order when the power tool is operating. Vibration hazards Exposure to vibration can cause disabling damage to the nerves and blood supply of the hands and arms. - Page 8 SAFETY TIPS FOR SPECIFIC AIR TOOLS IMPACT/RATCHET WRENCHES General safety tips apply. entangle rubber- coated or metal-reinforced gloves. Never hold Rotating drive sockets and drive extensions can easily the drive, socket or drive extension. In cases where the means to absorb the reaction torque are requested, it is recommended to use a suspension arm recommended for straight case tools and pistol -grip tools.
-
Page 9: Specifications
SPECIFICATIONS Impact Wrench Product name Model WR14A WR27A Square drive 1/2”(12.7mm) 3/4”(19mm) No-load speed 7,200/min 6,800/min Tightening torque(Maximum) 785 Nm 1,763 Nm Capasities(size of bolt)(Ordinary bolt) 16mm 32mm Air Consumption (90psi) 4.6cfm 6.9cfm Maximum permissible operating pressure 90psi(6.2bar) 90psi(6.2bar) Weight 1.9kg... - Page 10 Before using the tool for the first time Prepare the compressed air connection. Do not fit quick-lock couplings directly to the compressed air connection. Never screw the enclosed connection pieces for quick-lock couplings directly onto the compressed air connection. - simply screw the hose connection onto the device and then connect the compressed air hose to this.
-
Page 11: General Notes
EXPLANATION OF SYMBOLS Read insturction before Read insturction before Wear eye protectors. Wear eye protectors. Wear hearing protectors. Wear hearing protectors. Wear half mask s. Wear half masks. use. use. Lubricate daily Lubricate daily Proper position of a fixed Proper position of a fixed Risk of crushing Risk of crushing Risk of crushing... - Page 12 Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan Code No. C99252011 Ō Printed in Taiwan...
